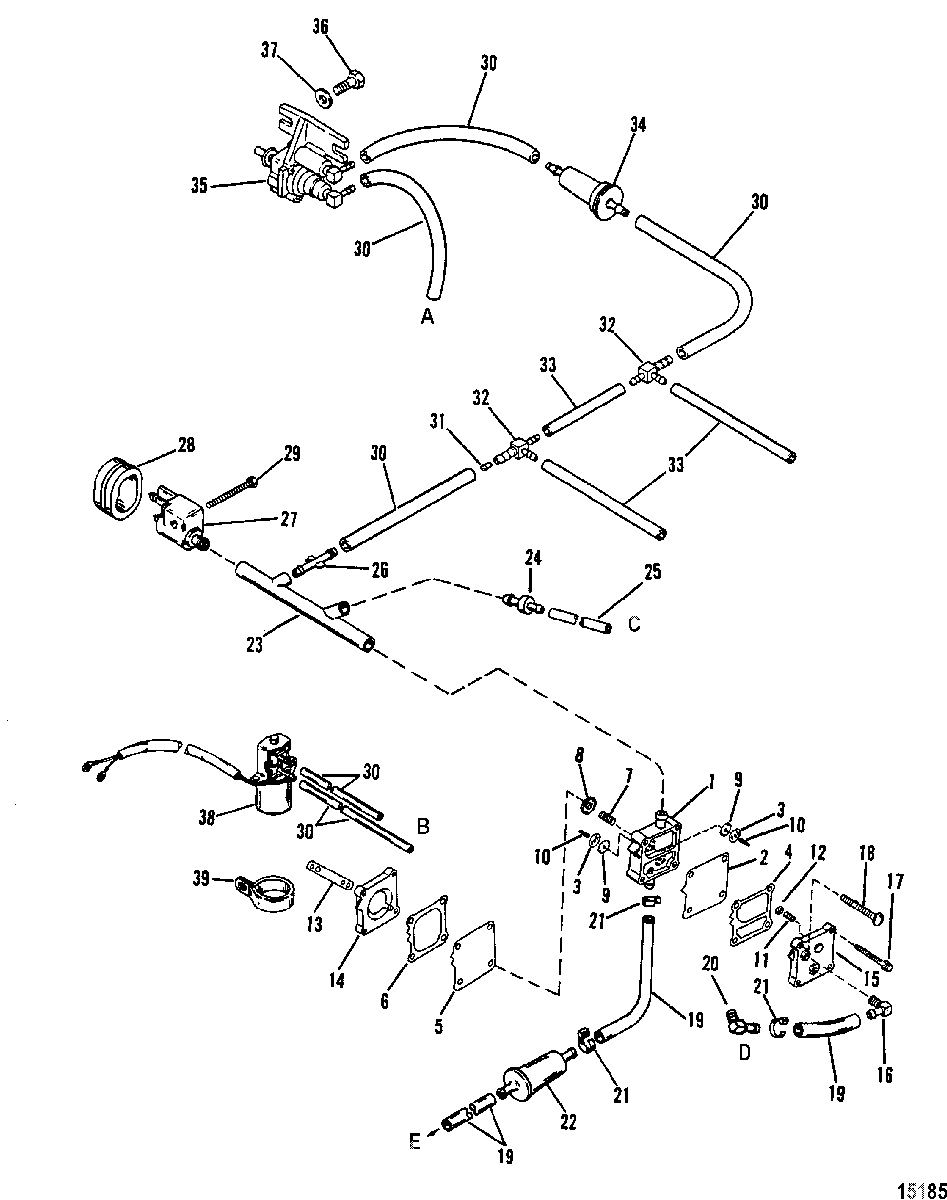

Fuel Pump(Use With Inline Check Valve Reference Number 24) для Mariner - 100 (4 CYL.) 9523034 THRU 9793576
-
№АртикулНазвание
-
114360A78 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
221-857005A1 DIAPHAGM KITDIAPHAGM KIT
-
3NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
4NSS NOT SOLD SEPARATE, Gasket, BoostNOT SOLD SEPARATE, Gasket, Boost
-
5NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
6NSS NOT SOLD SEPARATE, Gasket, PulseNOT SOLD SEPARATE, Gasket, Pulse
-
7NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
8NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
9NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
10NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
11NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
12NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
1327-987691 GASKETGASKET
-
14144303 BASEBASE
-
15987752 PLATEPLATE
-
1622-996642 ELBOWELBOW
-
1710-82104540 SCREW, Fuel PumpSCREW, Fuel Pump
-
1810-40057134 SCREW, (M6 x 50), Pump To BlockSCREW, (M6 x 50), Pump To Block
-
1932-8M0108349 TUBING
(E = To Carburetor)TUBING
(E = To Carburetor) -
2022-996642 ELBOW
(D = To Crankcase)ELBOW
(D = To Crankcase) -
2154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2235-816296Q03 FILTER, FuelFILTER, Fuel
-
2332-822554 MOLDED HOSE
(Old Design Y-Connector And Tubing Are Replaced With Molded Hose Ad Connector Reference Number 23 And 26 For Improvement Of Leakage Problems.MOLDED HOSE
(Old Design Y-Connector And Tubing Are Replaced With Molded Hose Ad Connector Reference Number 23 And 26 For Improvement Of Leakage Problems. -
2422-8189941 CHECK VALVECHECK VALVE
-
2532-82381335 TUBING, (8.00 Inches)
(C = To Oil Pump)TUBING, (8.00 Inches)
(C = To Oil Pump) -
2622-822771 CONNECTORCONNECTOR
-
2722-816856Q3 CONNECTOR ASSEMBLY, Fuel - PlasticCONNECTOR ASSEMBLY, Fuel - Plastic
-
2825-145091 GROMMETGROMMET
-
2910-4010635 SCREW, (M6 x 35) Stainless SteelSCREW, (M6 x 35) Stainless Steel
-
3032-1430165 TUBING, (38.00 Inches Bulk)
(A = To Lower Tee) (B = To Upper Tee)TUBING, (38.00 Inches Bulk)
(A = To Lower Tee) (B = To Upper Tee) -
3119-17608 FLOW RESTRICTORFLOW RESTRICTOR
-
3222-830570 TEE FITTINGTEE FITTING
-
3332-892024122 TUBING, (20.00 Feet Bulk)TUBING, (20.00 Feet Bulk)
-
3435-8M0042285 FILTER, FuelFILTER, Fuel
-
3514687A4 PUMP ASSEMBLY, Accelerator, Repair Kit, 1395-811287PUMP ASSEMBLY, Accelerator, Repair Kit, 1395-811287
-
3610-4009416 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
3712-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
3889-819503A2 VALVE, EnrichnerVALVE, Enrichner
-
3954-18887 CLAMPCLAMP
-
-21-857005A1 DIAPHAGM KITDIAPHAGM KIT
-
-17791T92 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
127-13461A99 GASKET SETGASKET SET
