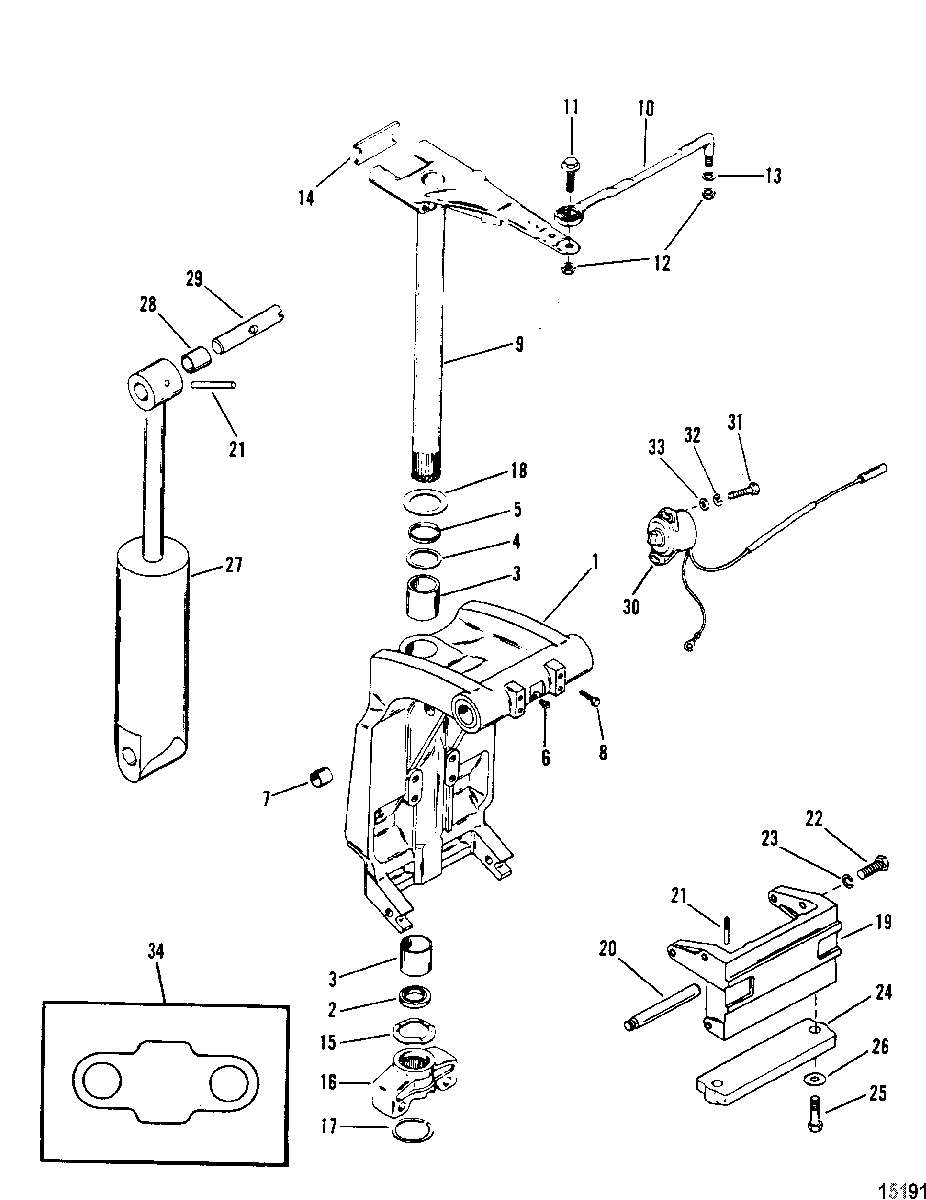

Swivel Bracket and Steering Arm для Mariner - 100 (4 CYL.) 9523034 THRU 9793576

  • №
    Артикул
    Название
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY, Black
    SWIVEL BRACKET ASSEMBLY, Black
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY, Gray
    SWIVEL BRACKET ASSEMBLY, Gray
  • 2
    26-87735 SEAL, Oil, Lower
    SEAL, Oil, Lower
  • 3
    23-818764 BUSHING
    BUSHING
  • 4
    25-33466 O-RING
    O-RING
  • 5
    23-67668 SPACER
    SPACER
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 7
    23-821207 BUSHING
    BUSHING
  • 8
    10-64014 SCREW, (.250-28 x .500)
    SCREW, (.250-28 x .500)
  • 9
    99661A2 SWIVEL PIN ASSEMBLY, Round End, Black
    SWIVEL PIN ASSEMBLY, Round End, Black
  • 9
    99661A4 SWIVEL PIN ASSEMBLY, Mariner, Round End, Gray
    SWIVEL PIN ASSEMBLY, Mariner, Round End, Gray
  • 9
    99661A18 SWIVEL PIN ASSEMBLY, Oyster
    (Sea Ray Round End)
    SWIVEL PIN ASSEMBLY, Oyster
    (Sea Ray Round End)
  • 9
    99661A18 SWIVEL PIN ASSEMBLY, Gray
    (Sea Ray Round End)
    SWIVEL PIN ASSEMBLY, Gray
    (Sea Ray Round End)
  • 9
    99661A35 SWIVEL PIN ASSEMBLY, Stub End, Black
    SWIVEL PIN ASSEMBLY, Stub End, Black
  • 9
    99661A35 SWIVEL PIN ASSEMBLY, Stub End, Gray
    SWIVEL PIN ASSEMBLY, Stub End, Gray
  • 10
    92876A12 LINK ASSEMBLY, Steering
    (Mercury And Mariner)
    LINK ASSEMBLY, Steering
    (Mercury And Mariner)
  • 11
    10-849838 SCREW, (.375-24 x 1.25)
    (Mercury And Mariner)
    SCREW, (.375-24 x 1.25)
    (Mercury And Mariner)
  • 12
    11-8M0042636 NUT, (.375-24)
    (Mercury And Mariner)
    NUT, (.375-24)
    (Mercury And Mariner)
  • 13
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel
    (Mercury And Mariner)
    WASHER, (.406 x .734 x .063) Stainless Steel
    (Mercury And Mariner)
  • 14
    8M0000516 BUMPER, X-Long
    BUMPER, X-Long
  • 15
    13-78854 WAVE WASHER
    WAVE WASHER
  • 16
    42961A06 YOKE ASSEMBLY, Bottom
    YOKE ASSEMBLY, Bottom
  • 16
    42961A06 YOKE ASSEMBLY, Bottom
    YOKE ASSEMBLY, Bottom
  • 16
    42961A06 YOKE ASSEMBLY, Bottom
    YOKE ASSEMBLY, Bottom
  • 17
    53-67684 RING, Retaining
    RING, Retaining
  • 18
    12-67670 WASHER
    WASHER
  • 19
    99653 BRACKET
    (Not Used With Power Trim)
    BRACKET
    (Not Used With Power Trim)
  • 20
    99619 SHAFT, Lower
    (Not Used With Power Trim)
    SHAFT, Lower
    (Not Used With Power Trim)
  • 21
    17-821539 PIN, Trilobe
    (Not Used With Power Trim)
    PIN, Trilobe
    (Not Used With Power Trim)
  • 22
    10-4000377 SCREW, (M10 x 30)
    (Not Used With Power Trim)
    SCREW, (M10 x 30)
    (Not Used With Power Trim)
  • 23
    13-400258 LOCKWASHER, (M10) Stainless Steel
    (Not Used With Power Trim)
    LOCKWASHER, (M10) Stainless Steel
    (Not Used With Power Trim)
  • 24
    97-818298Q1 ANODE KIT
    (Not Used With Power Trim)
    ANODE KIT
    (Not Used With Power Trim)
  • 25
    10-4000332 SCREW, (M6 x 35)
    (Not Used With Power Trim)
    SCREW, (M6 x 35)
    (Not Used With Power Trim)
  • 26
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    (Not Used With Power Trim)
    WASHER, (.281 x .500 x .060) Stainless Steel
    (Not Used With Power Trim)
  • 27
    55-99724T15 SHOCK ABSORBER, Black
    (Not Used With Power Trim)
    SHOCK ABSORBER, Black
    (Not Used With Power Trim)
  • 27
    55-99724T15 SHOCK ABSORBER, Gray
    (Not Used With Power Trim)
    SHOCK ABSORBER, Gray
    (Not Used With Power Trim)
  • 27
    55-99724T15 SHOCK ABSORBER, Oyster
    (Not Used With Power Trim)
    SHOCK ABSORBER, Oyster
    (Not Used With Power Trim)
  • 28
    23-821207 BUSHING
    (Not Used With Power Trim)
    BUSHING
    (Not Used With Power Trim)
  • 29
    99625002 SHAFT, Upper
    (Not Used With Power Trim)
    SHAFT, Upper
    (Not Used With Power Trim)
  • 30
    8M0098273 SENDER ASSEMBLY, Trim, Sea Ray
    SENDER ASSEMBLY, Trim, Sea Ray
  • 31
    10-852368 SCREW, (#10-24 x .750), Sea Ray
    SCREW, (#10-24 x .750), Sea Ray
  • 32
    13-26996 LOCKWASHER, (#10) Stainless Steel, Sea Ray
    LOCKWASHER, (#10) Stainless Steel, Sea Ray
  • 33
    12-89302 WASHER, (.203 x .406 x .040), Sea Ray
    WASHER, (.203 x .406 x .040), Sea Ray
  • 34
    11288001 BUMPER, Bottom Yoke, X-Long
    BUMPER, Bottom Yoke, X-Long
