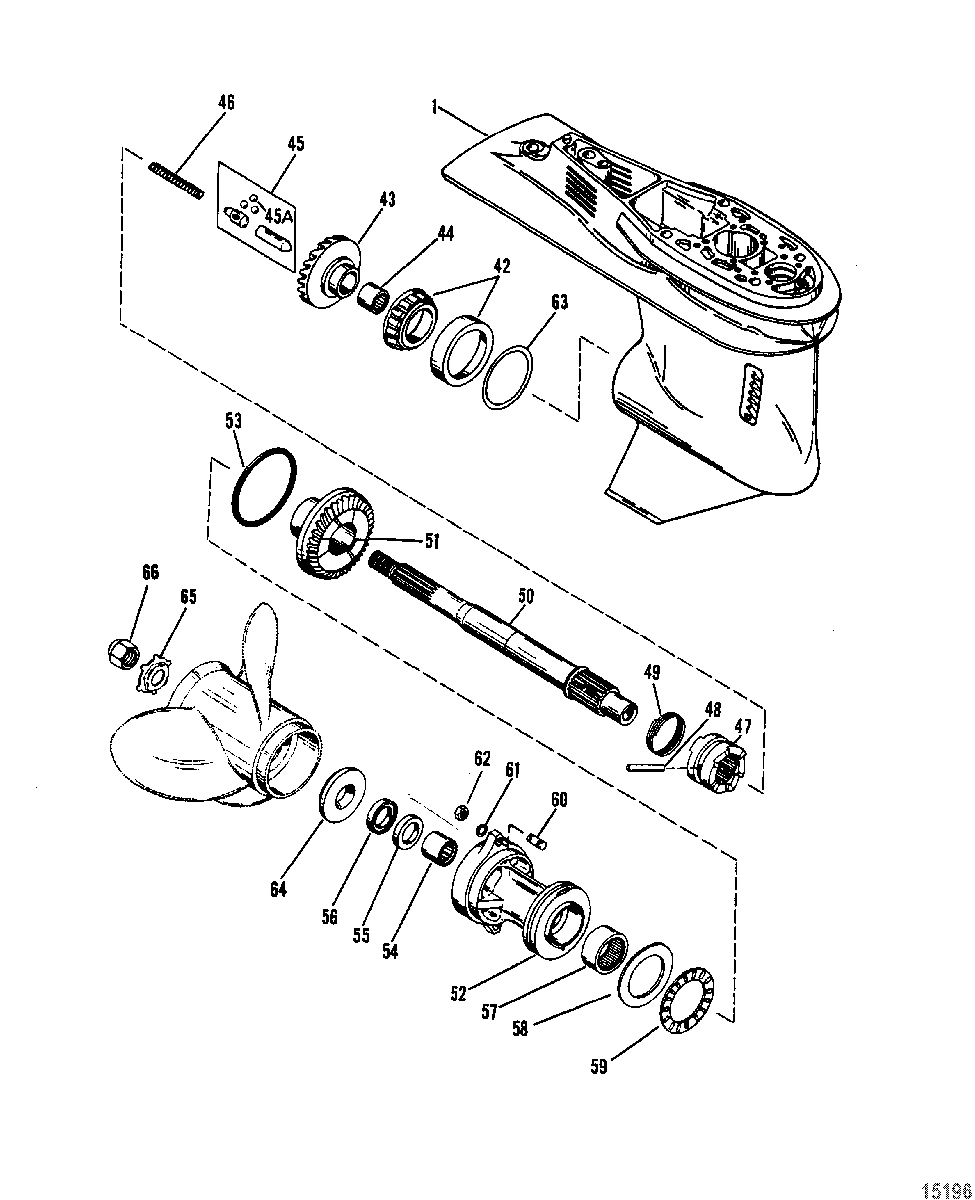

Gear Housing, Propeller Shaft для Mariner - 100 (4 CYL.) 9523034 THRU 9793576
-
№АртикулНазвание
-
-1667-9011J7 GEAR HOUSING ASSEMBLY, Long, BlackGEAR HOUSING ASSEMBLY, Long, Black
-
-1667-9011J10 GEAR HOUSING ASSEMBLY, X-Long, BlackGEAR HOUSING ASSEMBLY, X-Long, Black
-
-1667-9011J7 GEAR HOUSING ASSEMBLY, Long, GrayGEAR HOUSING ASSEMBLY, Long, Gray
-
-1667-9011G42 GEAR HOUSING ASSEMBLY, X-Long, GrayGEAR HOUSING ASSEMBLY, X-Long, Gray
-
-1667-9011J7 GEAR HOUSING ASSEMBLY, Long, OysterGEAR HOUSING ASSEMBLY, Long, Oyster
-
-1667-9011G42 GEAR HOUSING ASSEMBLY, X-Long, OysterGEAR HOUSING ASSEMBLY, X-Long, Oyster
-
11667-9011T73 GEAR HOUSING ASSEMBLY, BlackGEAR HOUSING ASSEMBLY, Black
-
11667-9011T73 GEAR HOUSING ASSEMBLY, GrayGEAR HOUSING ASSEMBLY, Gray
-
11667-9011T73 GEAR HOUSING ASSEMBLY, OysterGEAR HOUSING ASSEMBLY, Oyster
-
4231-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
43N.S.S. Not Sold Separate, Part Of 43-19672A1Not Sold Separate, Part Of 43-19672A1
-
4431-30895T BEARING, NeedleBEARING, Needle
-
45850315A1 FOLLOWER KIT, CamFOLLOWER KIT, Cam
-
45A30-44530 BALLBALL
-
4624-30622 SPRINGSPRING
-
4752-822539T CLUTCHCLUTCH
-
4817-8M0100263 PIN, CrossPIN, Cross
-
4924-30893 SPRINGSPRING
-
5044-12238T PROPELLER SHAFTPROPELLER SHAFT
-
51N.S.S. Not Sold Separate, Part Of 43-19672A1Not Sold Separate, Part Of 43-19672A1
-
5212596T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
5325-861844 O-RING, (3.609 x .139)O-RING, (3.609 x .139)
-
5431-30956T BEARING, NeedleBEARING, Needle
-
5526-76868 SEAL, InnerSEAL, Inner
-
5626-70081 SEAL, Oil, OuterSEAL, Oil, Outer
-
5731-12578T BEARING, NeedleBEARING, Needle
-
5812-12577 THRUST WASHERTHRUST WASHER
-
5931-12576 BEARING, ThrustBEARING, Thrust
-
6016-8M0034456 STUD, (M8 x 48)STUD, (M8 x 48)
-
6112-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
6211-401378 NUT, (M8)NUT, (M8)
-
6315-8M0063266 SHIM SETSHIM SET
-
6413191Q01 THRUST WASHERTHRUST WASHER
-
6514-816629Q TAB WASHERTAB WASHER
-
6611-52707Q1 PROP NUT KIT, (.750-16)PROP NUT KIT, (.750-16)
