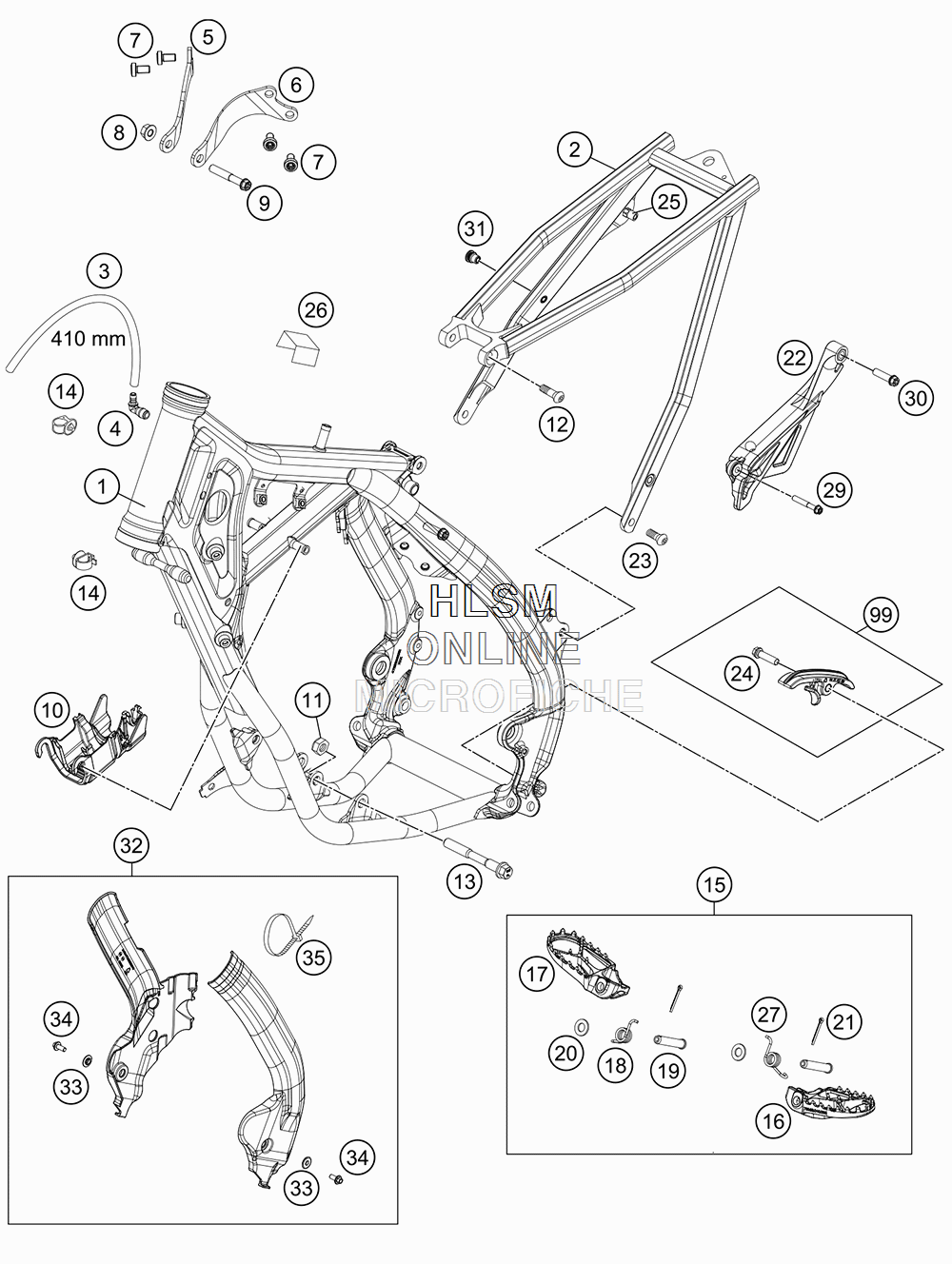

FRAME для Ktm 85SX 1916 - 2019 года выпуска`
-
№АртикулНазвание
-
147203001000EB FRAME "472R3" ELEC. ORANGEFRAME "472R3" ELEC. ORANGE
-
147203001000EB FRAME "472R3" ELEC. ORANGEFRAME "472R3" ELEC. ORANGE
-
350335030001 PVC-HOSE 6X9PVC-HOSE 6X9
-
451030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
547203014000 MOTORSTREBE RECHTSMOTORSTREBE RECHTS
-
647203013000 MOTORBRACKET LEFTMOTORBRACKET LEFT
-
70035080156S AH-COLLAR SCREW M8X15 TORX45AH-COLLAR SCREW M8X15 TORX45
-
854310086200 SELF LOCKING NUT M8SELF LOCKING NUT M8
-
90025080506 HH COLLAR SCREW M8X50HH COLLAR SCREW M8X50
-
1047211095000 CABLE COMPARTMENTCABLE COMPARTMENT
-
1154310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
120019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
1347003013000 ENGINE BRACKET SCREW 85 SXENGINE BRACKET SCREW 85 SX
-
1457013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
1579003040033 FOOT PEGS SET CPL. 2016FOOT PEGS SET CPL. 2016
-
1679003040000 FOOTREST L/SFOOTREST L/S
-
1779003041000 FOOTREST R/SFOOTREST R/S
-
1879003044000 FOOTREST SPRING R/SFOOTREST SPRING R/S
-
1954803044000 PIN FOR FOOT PED 51.5X9.8 MMPIN FOR FOOT PED 51.5X9.8 MM
-
200125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
210094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
2247203096000 SPROCKET COVER 85SPROCKET COVER 85
-
2379003003000 SPECIAL SCREW M8X18 TORX45 SSSPECIAL SCREW M8X18 TORX45 SS
-
240025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
2577303139000 BLIND RIVET NUT EM6-60LF/HXBLIND RIVET NUT EM6-60LF/HX
-
2650307012000 ADH. FOIL TRANSP. 80X80 MM 04ADH. FOIL TRANSP. 80X80 MM 04
-
2779003045000 FOOTREST SPRING L/SFOOTREST SPRING L/S
-
290025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
-
300025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
3179003002080 BLIND RIVET NUT M6 KNURLEDBLIND RIVET NUT M6 KNURLED
-
3247203094000EB FRAME PROTECTOR SETFRAME PROTECTOR SET
-
3354803092060 BUSH F. FRAME PROTECTIONBUSH F. FRAME PROTECTION
-
340014050123 HH COLLAR SCREW M 5X12HH COLLAR SCREW M 5X12
-
3544011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
9979003053010 CHAIN SLIDING KIT BELOW CPL.16CHAIN SLIDING KIT BELOW CPL.16
