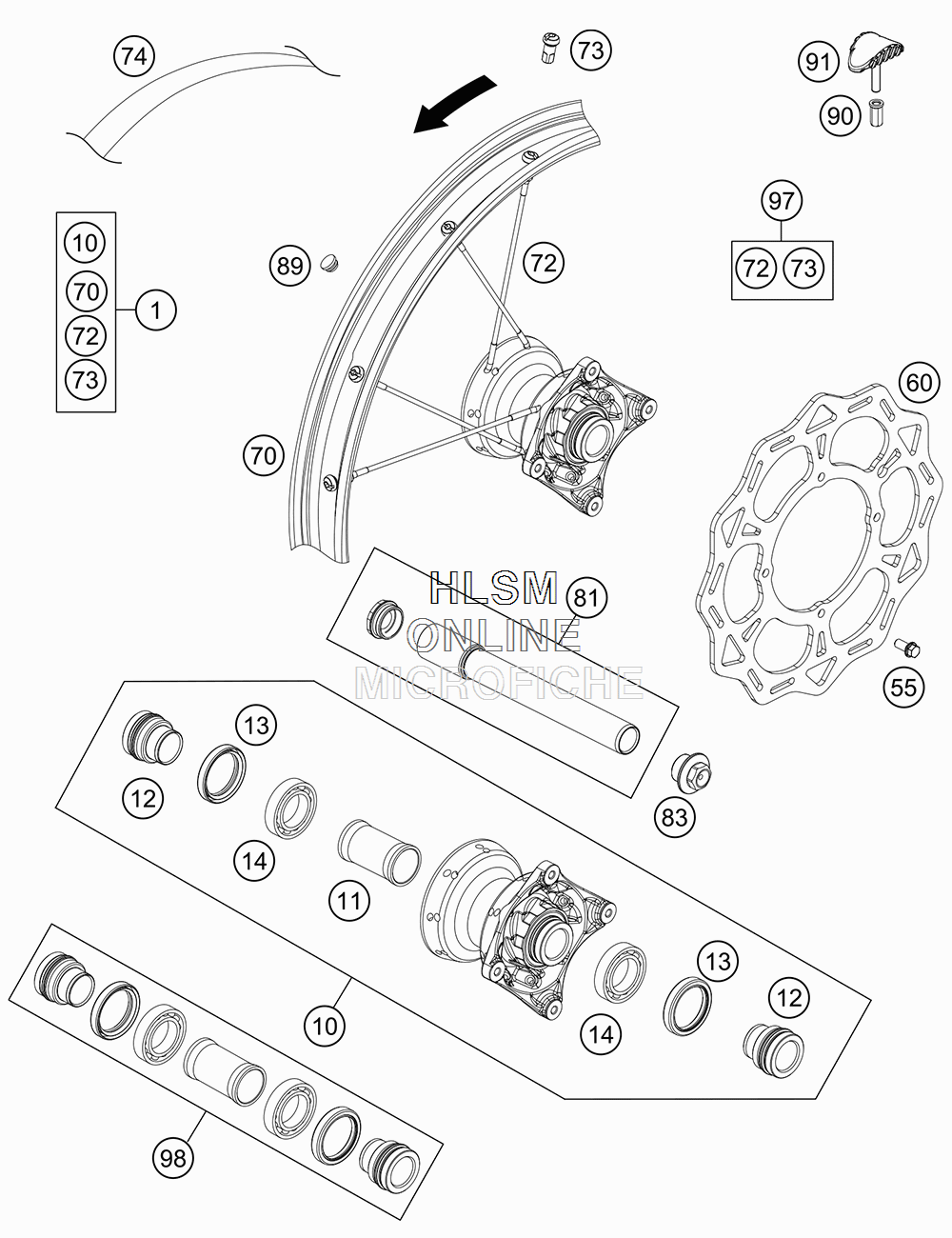

FRONT WHEEL для Ktm 85SX 1916 - 2019 года выпуска

  • №
    Артикул
    Название
  • 1
    4710900154430 FRONT WHEEL CPL. 19" BLACK
    FRONT WHEEL CPL. 19" BLACK
  • 10
    70009010044 FRONT WHEEL HUB CPL. 12
    FRONT WHEEL HUB CPL. 12
  • 11
    70009011000 BEAR.SPACER TUBE FRONT D22MM
    BEAR.SPACER TUBE FRONT D22MM
  • 12
    70009012000 SPACER BUSHING D=22MM
    SPACER BUSHING D=22MM
  • 13
    0760324271 SHAFT SEAL RING 32X42X7 BSL
    SHAFT SEAL RING 32X42X7 BSL
  • 14
    0625069050 BALL BEARING 6905 J1LLUC3
    BALL BEARING 6905 J1LLUC3
  • 55
    59009062013 SPECIAL SCREW M6X13 WS=8 10.9
    SPECIAL SCREW M6X13 WS=8 10.9
  • 60
    47209060000 BRAKE DISC FRONT D=240MM
    BRAKE DISC FRONT D=240MM
  • 70
    2350907050030 FRONT RIM 19X1.60
    FRONT RIM 19X1.60
  • 72
    4710907120630 SPOKE M4,5X206-19" BLACK
    SPOKE M4,5X206-19" BLACK
  • 73
    79109072000 SPOKE NIPPLE M4.5
    SPOKE NIPPLE M4.5
  • 74
    47009073100 RIM BAND 85 SX 19"
    RIM BAND 85 SX 19"
  • 81
    70009081033 FRONT AXLE CPL. '12
    FRONT AXLE CPL. '12
  • 83
    70009082000 AXLESCREW M20X1.5; SW17
    AXLESCREW M20X1.5; SW17
  • 89
    55003135000 PLUG FOR RIM
    PLUG FOR RIM
  • 90
    77110090050 NUT FOR WHEEL HOLDER
    NUT FOR WHEEL HOLDER
  • 91
    78109090000 RIM LOCK 1,60"
    RIM LOCK 1,60"
  • 97
    00050000967 SPOKE KIT FRONT ''19''
    SPOKE KIT FRONT ''19''
  • 98
    70009015000 FRONT WHEEL REP. KIT
    FRONT WHEEL REP. KIT
