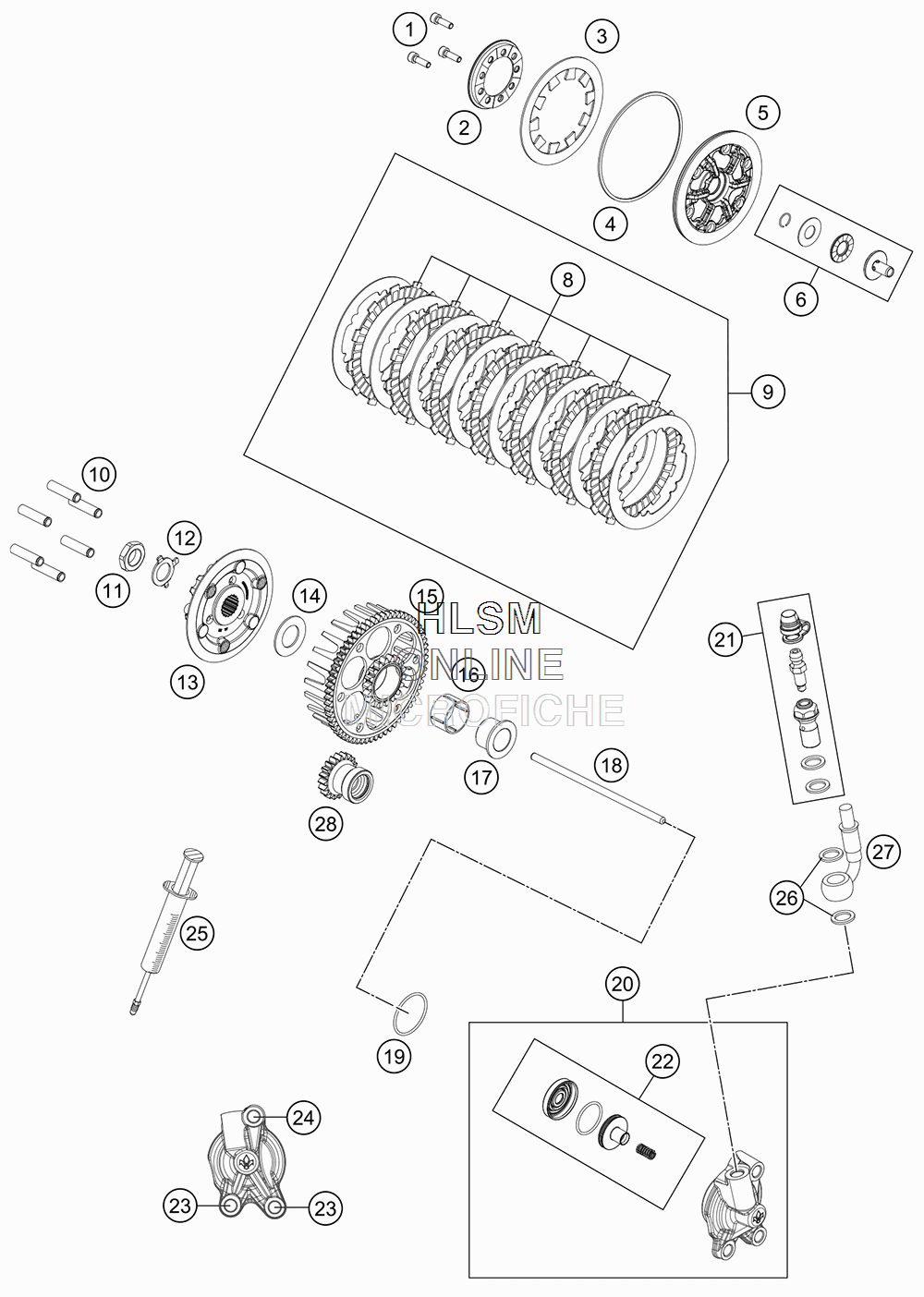

CLUTCH для Ktm 85SX 1916 - 2019 года выпуска
-
№АртикулНазвание
-
10912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
247232006000 SPRING DISKSPRING DISK
-
347232005000 CLUTCH SPRING 58X97.1X1.5CLUTCH SPRING 58X97.1X1.5
-
447232013000 INNER RING 94X99X1.5INNER RING 94X99X1.5
-
547232003000 COUPLING PRESSURE PLATECOUPLING PRESSURE PLATE
-
678132057144 PRESSURE PIECE CPL.PRESSURE PIECE CPL.
-
847232011000 LINING DISC 1,95MMLINING DISC 1,95MM
-
947232010033 DISC PACKDISC PACK
-
1047232004000 SLEEVE 7.95X32.2SLEEVE 7.95X32.2
-
1147232019000 HEXAGON NUT M16X1,5HEXAGON NUT M16X1,5
-
1247232018000 LOCK WASHERLOCK WASHER
-
1347232002000 INNER CLUTCH HUBINNER CLUTCH HUB
-
1447232017000 SUPPORT DISKSUPPORT DISK
-
1547232001164 CLUTCH BASKETCLUTCH BASKET
-
160405263017 NEEDLE CAGE K263017NEEDLE CAGE K263017
-
1747232015000 COLLAR 20X26X19COLLAR 20X26X19
-
1747232015000 COLLAR 20X26X19COLLAR 20X26X19
-
190770300015 O-RING 30,00X1,50 NBR 70O-RING 30,00X1,50 NBR 70
-
2072132061044 OUTPUT CYLINDER CPL.OUTPUT CYLINDER CPL.
-
2172032064000 BLEEDER SCREW CPL.BLEEDER SCREW CPL.
-
2247132066000 PISTON CPL.PISTON CPL.
-
230025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
240025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
2550329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
260603082121 SEAL RING CU DIN7603- 8X12X1SEAL RING CU DIN7603- 8X12X1
-
2772032063000 CLUTCH PIPECLUTCH PIPE
-
2847232023020 GEAR PRIMARY DRIVEGEAR PRIMARY DRIVE
