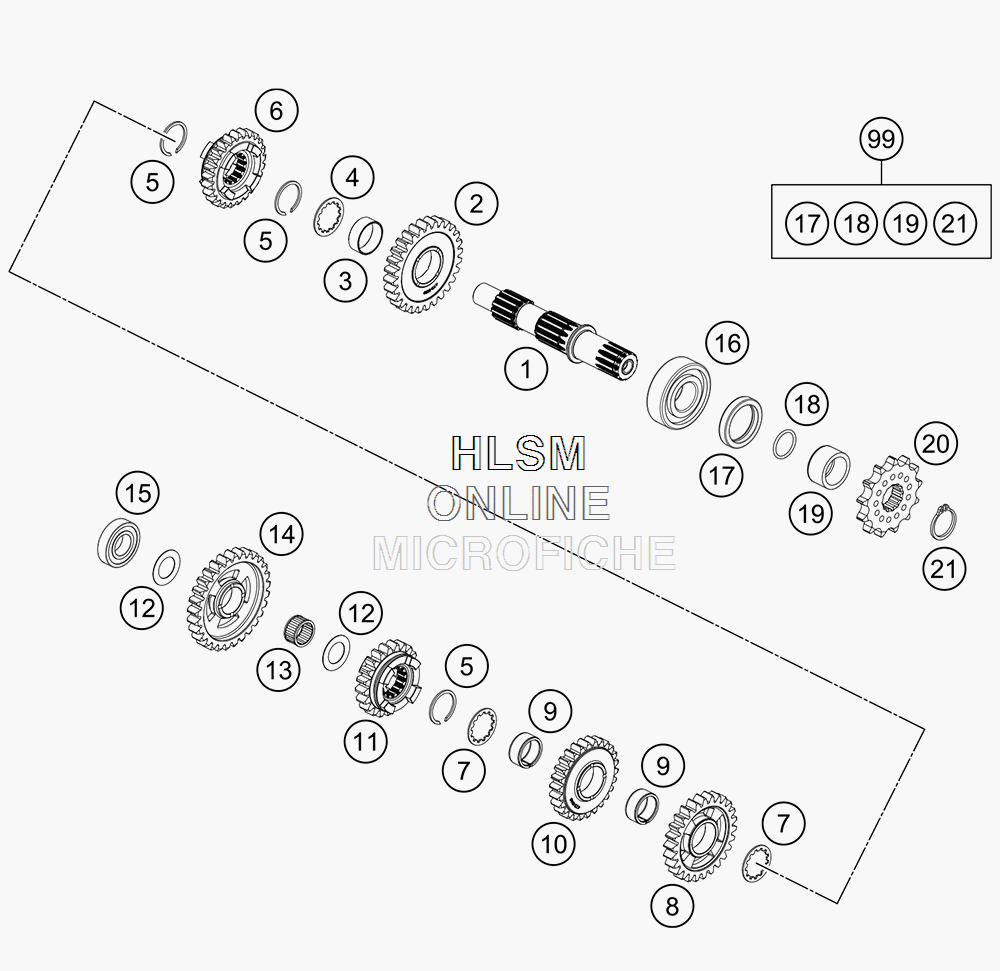

TRANSMISSION II - COUNTERSHAFT для Ktm 85SX 1916 - 2019 года выпуска`
-
№АртикулНазвание
-
147233010000 OUTPUT SHAFT CPL.OUTPUT SHAFT CPL.
-
247233012000 IDLER GEAR 2 ND.IDLER GEAR 2 ND.
-
347233021000 BUSHING IDLER GEARBUSHING IDLER GEAR
-
447233041000 THRUST WASHER 19.2X27.1X1THRUST WASHER 19.2X27.1X1
-
50417210120 CIRCLIP SW21CIRCLIP SW21
-
647233015000 SLIDING GEAR 5 TH.SLIDING GEAR 5 TH.
-
747233040000 THRUST WASHER 22X1.50X13X 9HTHRUST WASHER 22X1.50X13X 9H
-
847233013000 IDLER GEAR 3 RD.IDLER GEAR 3 RD.
-
950133099000 NEEDLE CAGE K18X22X10 PARTEDNEEDLE CAGE K18X22X10 PARTED
-
1047233014000 IDLER GEAR 4 TH.IDLER GEAR 4 TH.
-
1147233016000 SLIDING GEAR 6 TH.SLIDING GEAR 6 TH.
-
1247133043000 THRUST WASHER 15.2X25X0.5THRUST WASHER 15.2X25X0.5
-
1347033099000 NEEDLE BEARING K15X19X10SNEEDLE BEARING K15X19X10S
-
1447233011000 IDLER GEAR 1 ST.IDLER GEAR 1 ST.
-
150625160020 BALL BEARING 16002 C3BALL BEARING 16002 C3
-
160625062041 BALL BEARING 6204 JR2 C4BALL BEARING 6204 JR2 C4
-
170760263561 SHAFT SEAL RING 26X35X6BSL NBSHAFT SEAL RING 26X35X6BSL NB
-
180770020180 O-RING 18,77X1,78 NBR 70O-RING 18,77X1,78 NBR 70
-
1947233030000 SPACER CHAIN PINIONSPACER CHAIN PINION
-
2047233029013 SPROCKET 13TSPROCKET 13T
-
2149033091000 CIRCLIP AS20X1,75CIRCLIP AS20X1,75
-
9900050000942 COUNTER SHAFT REP.KITCOUNTER SHAFT REP.KIT
