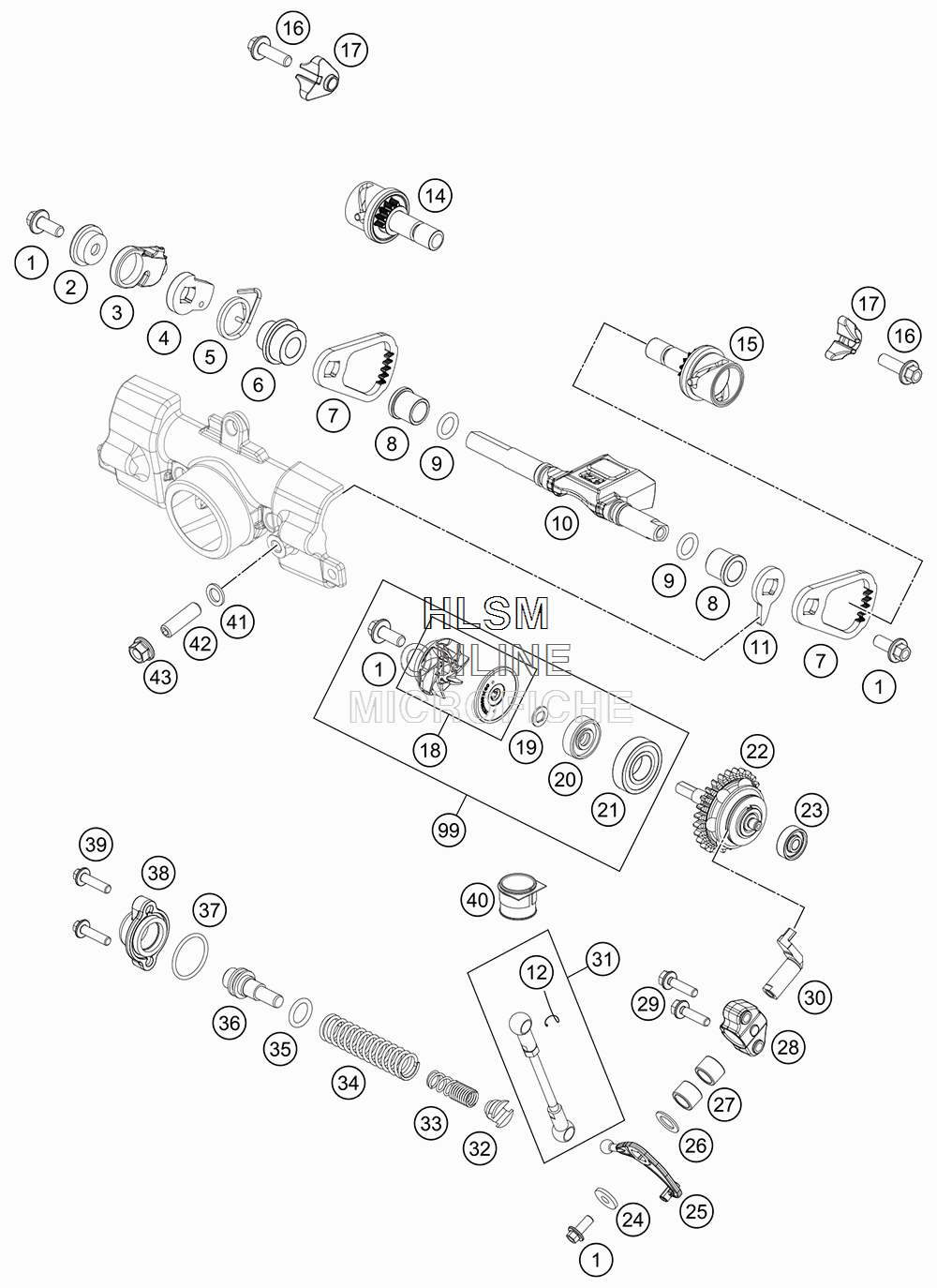

EXHAUST CONTROL для Ktm 85SX 1916 - 2019 года выпуска

№

Артикул

Название
1

0014050123 HH COLLAR SCREW M 5X12

HH COLLAR SCREW M 5X12

290 ₽
2

47237068000 BEARING BUSH

BEARING BUSH

1 110 ₽
3

47237077000 ADJUSTING LEVER

ADJUSTING LEVER

9 930 ₽
4

47237036000 ATTACHMENT PLATE

ATTACHMENT PLATE

790 ₽
5

47237066000 OVERLOAD SPRING

OVERLOAD SPRING

440 ₽
6

47237076000 DISTANCE BUSH

DISTANCE BUSH

1 520 ₽
7

47237067000 GEAR SEGMENT

GEAR SEGMENT

1 230 ₽
8

47237023000 ESHAUST FLAP BUSHING

ESHAUST FLAP BUSHING

740 ₽
9

0770080201 O-RING 8,00X2,0 VITON

O-RING 8,00X2,0 VITON

90 ₽
10

47237020000 EXHAUST VALVE

EXHAUST VALVE

17 790 ₽
11

47237085000 LIMIT PLATE

LIMIT PLATE

620 ₽
12

50237195055 SECURING DIN-71805-S-8

SECURING DIN-71805-S-8

500 ₽
14

47237065033 CONTROL VALVE, RIGHT CMPL.

CONTROL VALVE, RIGHT CMPL.

13 550 ₽
15

47237064033 CONTROL VALVE, LEFT CMPL.

CONTROL VALVE, LEFT CMPL.

13 470 ₽
16

0014050123 HH COLLAR SCREW M 5X12

HH COLLAR SCREW M 5X12

290 ₽
17

47237079000 GUIDE PIECE

GUIDE PIECE

5 320 ₽
18

79235055044 WATER PUMP WHEEL CPL.

WATER PUMP WHEEL CPL.

3 540 ₽
19

50435049000 PREFORMED WASHER

PREFORMED WASHER

910 ₽
20

0760082472 SHAFT SEAL RING 8X24X7 A DUO

SHAFT SEAL RING 8X24X7 A DUO

2 050 ₽
21

0625160020 BALL BEARING 16002 C3

BALL BEARING 16002 C3

5 140 ₽
22

47237050144 CENTRIFUGAL FORCE GOVERNOR CMPL.

CENTRIFUGAL FORCE GOVERNOR CMPL.

36 360 ₽
23

0625006065 BALL BEARING 696 DDM1 C3

BALL BEARING 696 DDM1 C3

2 140 ₽
24

0349000050 WASHER DIN7349-5X15X2

WASHER DIN7349-5X15X2

210 ₽
25

47237056000 ANGLE LEVER

ANGLE LEVER

8 500 ₽
26

0988101605 SHIM WASHER DIN988 10X16X0,5

SHIM WASHER DIN988 10X16X0,5

70 ₽
27

0618101410 NEEDLE SLEEVE HK 1010 10/14/10

NEEDLE SLEEVE HK 1010 10/14/10

1 610 ₽
28

55437058000 BEARING SUPPOR T

BEARING SUPPOR T

4 180 ₽
29

0025050256S HH COLLAR SCREW M5X25 ISA30

HH COLLAR SCREW M5X25 ISA30

210 ₽
30

47237057000 ADJUSTING LEVER 85/105

ADJUSTING LEVER 85/105

9 350 ₽
31

47237095044 LINKAGE CPL.

LINKAGE CPL.

5 780 ₽
32

54637071200 SPRING INSERT

SPRING INSERT

2 460 ₽
33

50437069050 SUPPORT SPRING

SUPPORT SPRING

500 ₽
34

47237072000 SETTING SPRING

SETTING SPRING

1 610 ₽
35

0770021120 O-RING 12,37X2,62 NBR70

O-RING 12,37X2,62 NBR70

680 ₽
36

54837075000 SPRING GUIDE 250/300

SPRING GUIDE 250/300

3 510 ₽
37

0770240020 O-RING 24,00X2,00 NBR70

O-RING 24,00X2,00 NBR70

410 ₽
38

54637070100 COVER LID

COVER LID

4 560 ₽
39

0014050203 HH COLLAR SCREW M 5X20

HH COLLAR SCREW M 5X20

790 ₽
40

47237091000 SEALING ELEMENT

SEALING ELEMENT

1 670 ₽
41

0603061001 CU-SEAL RING DIN7603-6X10X1

CU-SEAL RING DIN7603-6X10X1

320 ₽
42

0913060203 THREAD PIN DIN0913-M 6X20

THREAD PIN DIN0913-M 6X20

150 ₽
43

77336088106 COLLAR NUT M6X1 SW8

COLLAR NUT M6X1 SW8

3 390 ₽
99

50435055015 WATER PUMP REP. KIT

WATER PUMP REP. KIT

11 100 ₽
