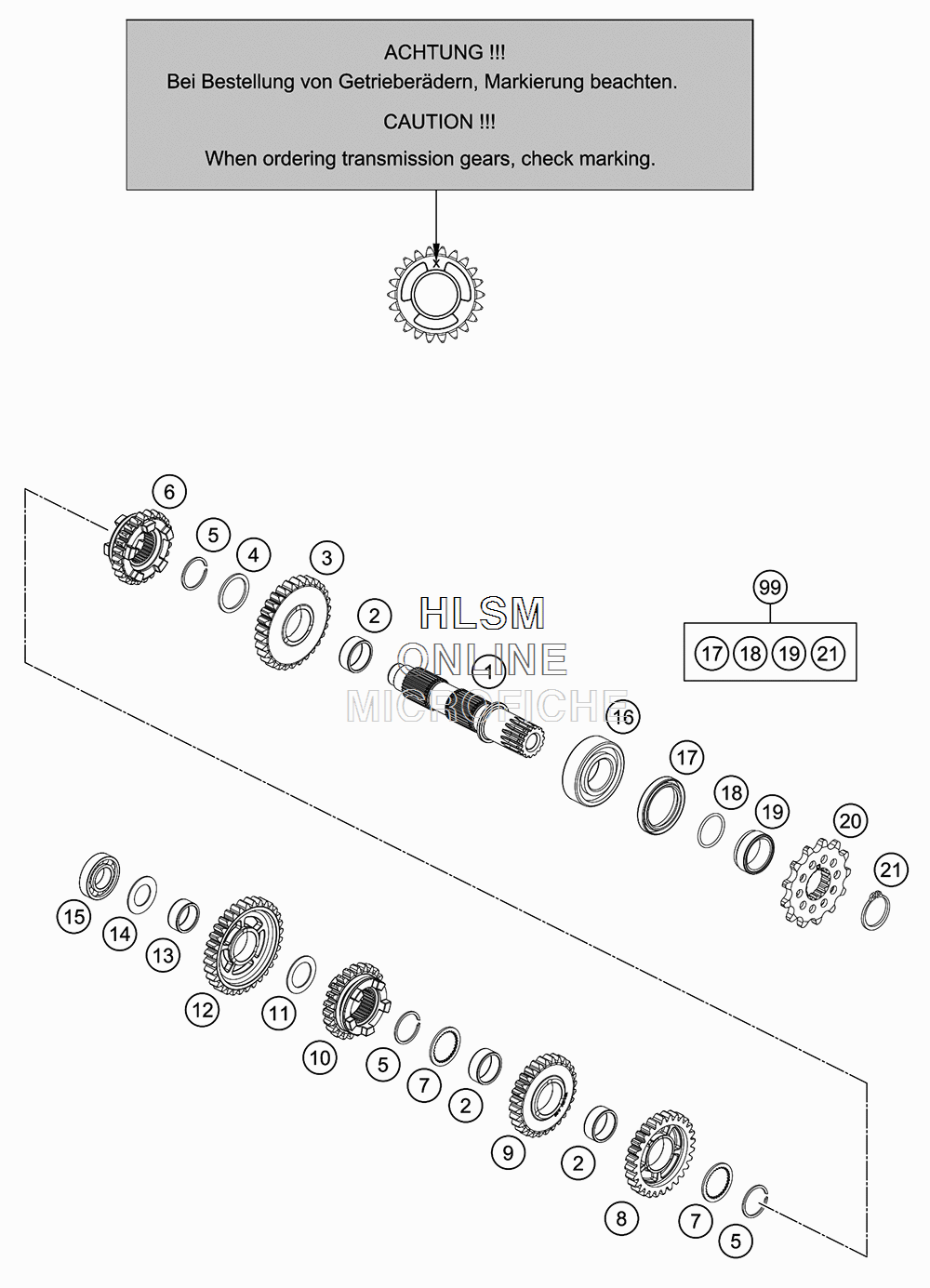

TRANSMISSION II - COUNTERSHAFT для Ktm 150 XCW - 2018 года выпуска`
-
№АртикулНазвание
-
150433010100 COUNTER SHAFT CPL.COUNTER SHAFT CPL.
-
20405222611 NEEDLE BEAR.K 22X26X10 DIVIDEDNEEDLE BEAR.K 22X26X10 DIVIDED
-
350433112100 IDLER 2ND GEAR NOT=31IDLER 2ND GEAR NOT=31
-
454833044000 STOP DISC 25X31X1,5STOP DISC 25X31X1,5
-
50417024000 CIRCLIP WS24CIRCLIP WS24
-
650433116100 SLIDING GEAR 6THGEAR NOT=20SLIDING GEAR 6THGEAR NOT=20
-
754833043000 STOP DISC 25X0,8X30X30X7HSTOP DISC 25X0,8X30X30X7H
-
850433113000 IDLER GEAR 3RD GEAR 28TIDLER GEAR 3RD GEAR 28T
-
950433114100 IDLER 4TH GEAR NOT=26IDLER 4TH GEAR NOT=26
-
1050433115200 SLIDING GEAR 5TH GEAR NOT=25SLIDING GEAR 5TH GEAR NOT=25
-
1154833080000 STOP DISC 20,2X30X1STOP DISC 20,2X30X1
-
1250433111100 IDLER 1ST GEAR NOT=33IDLER 1ST GEAR NOT=33
-
130405202410 NEEDLE BEARING K20X24X10NEEDLE BEARING K20X24X10
-
1456033030000 STOP DISC 17,2X30X1STOP DISC 17,2X30X1
-
150625160031 GROOVED BALL B. 16003 C4 J1GROOVED BALL B. 16003 C4 J1
-
160625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
170760324571 SHAFT SEAL RING 32X45X7 BSLNBRSHAFT SEAL RING 32X45X7 BSLNBR
-
180770230020 O-RING 23,00X2,00 NBR70O-RING 23,00X2,00 NBR70
-
1950433030000 SPACER BUSHING 12,4 MMSPACER BUSHING 12,4 MM
-
2079233029013 SPROCKET 13TSPROCKET 13T
-
210471250200 CIRCLIP DIN0471 - 25X2CIRCLIP DIN0471 - 25X2
-
9900050000949 COUNTER SHAFT REP. KITCOUNTER SHAFT REP. KIT
