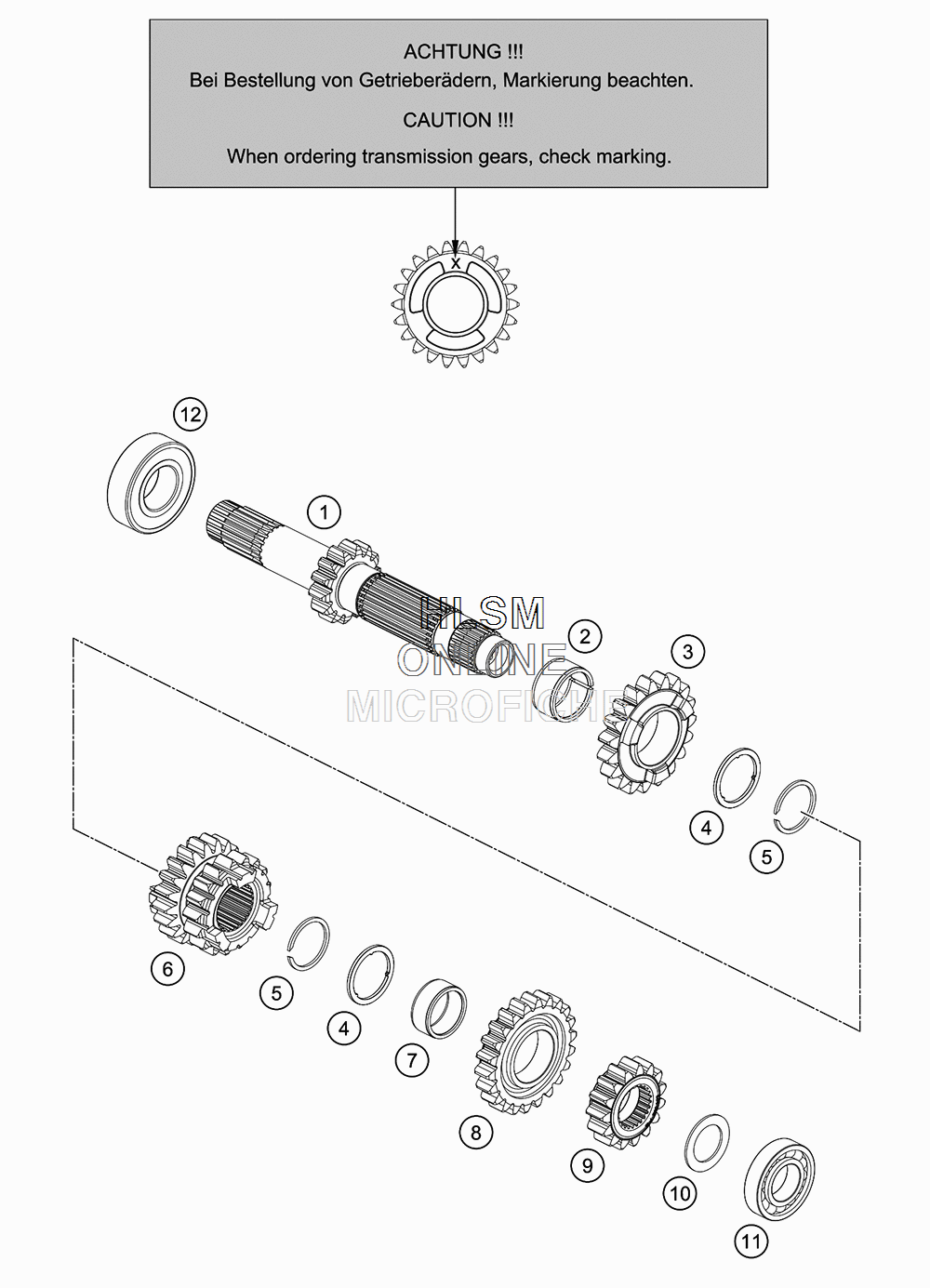

TRANSMISSION I - MAIN SHAFT для Ktm 150 XCW - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    50433101100 DRIVE SHAFT ASSY . 12Z
    DRIVE SHAFT ASSY . 12Z
  • 2
    0405212513 NEEDLE BEARING K21X25X13 SPLIT
    NEEDLE BEARING K21X25X13 SPLIT
  • 3
    50433105200 IDLER 5TH GEAR , Z=21
    IDLER 5TH GEAR , Z=21
  • 4
    50433043000 STOP DISK
    STOP DISK
  • 5
    50133090000 LOCK RING 22X1,2
    LOCK RING 22X1,2
  • 6
    50433103100 SLIDING GEAR 3.G/4.G, Z=17/19
    SLIDING GEAR 3.G/4.G, Z=17/19
  • 7
    0405202410 NEEDLE BEARING K20X24X10
    NEEDLE BEARING K20X24X10
  • 8
    50433106100 IDLER 6TH GEAR , NOT=20
    IDLER 6TH GEAR , NOT=20
  • 9
    50433102100 IDLER 2ND GEAR NOT=31
    IDLER 2ND GEAR NOT=31
  • 10
    50333041000 STOP DISC 17,2X26X1 B
    STOP DISC 17,2X26X1 B
  • 11
    0625160031 GROOVED BALL B. 16003 C4 J1
    GROOVED BALL B. 16003 C4 J1
  • 12
    0625060041 BALL BEARING 6004 TNH C3
    BALL BEARING 6004 TNH C3
