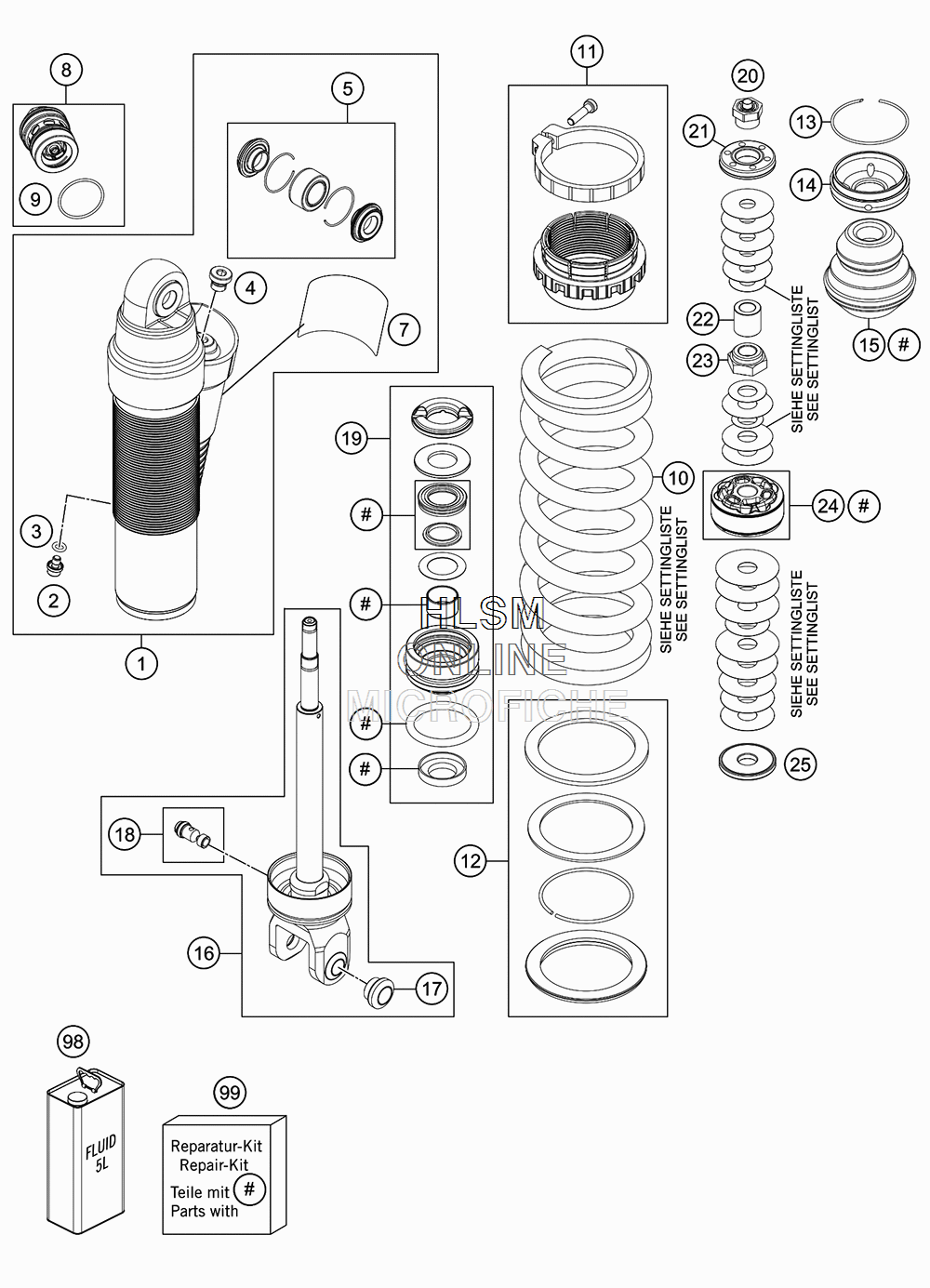

SHOCK ABSORBER DISASSEMBLED для Ktm 150 XCW - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    46181242S1 MONOSHOCK CASE M53X1 INC PIPE
    MONOSHOCK CASE M53X1 INC PIPE
  • 2
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 3
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 4
    50180095 BLEED PLUG R 1/8
    BLEED PLUG R 1/8
  • 5
    RP10011 BEARING KIT KGW D12
    BEARING KIT KGW D12
  • 7
    52000143 STICKER WP W ARNING 65X40
    STICKER WP W ARNING 65X40
  • 8
    50181101S5 DCC PDS 2017 CPL.
    DCC PDS 2017 CPL.
  • 9
    50180217 O-RING 27X1,5 VITON
    O-RING 27X1,5 VITON
  • 10
    91010348 SPRING 57-60-63 225MM WHITE
    SPRING 57-60-63 225MM WHITE
  • 10
    91010349 SPRING 60-63-66 225MM WHITE
    SPRING 60-63-66 225MM WHITE
  • 10
    91010350 SPRING 63-66-69 225MM WHITE
    SPRING 63-66-69 225MM WHITE
  • 10
    91010351 SPRING 66-69-72 225MM WHITE
    SPRING 66-69-72 225MM WHITE
  • 10
    91010353 SPRING 54-57-60 225MM WHITE
    SPRING 54-57-60 225MM WHITE
  • 11
    46181228S SPRING SUPPOR T PLASTIC 46 CPL.
    SPRING SUPPOR T PLASTIC 46 CPL.
  • 12
    RP10005 SPRING CUP SET PDS 17
    SPRING CUP SET PDS 17
  • 13
    46810010 CIRCLIP 49X1,5
    CIRCLIP 49X1,5
  • 14
    46180338 CAP D=46 H=9,5
    CAP D=46 H=9,5
  • 15
    46181237 BUMP RUBBER Ш58 Ш17 H55 PDS
    BUMP RUBBER Ш58 Ш17 H55 PDS
  • 16
    46181236S1 MONOSHOCK LOWER P AR T CPL.
    MONOSHOCK LOWER P AR T CPL.
  • 17
    50180105 THREADED BUSH M12 PDS
    THREADED BUSH M12 PDS
  • 18
    50181094S ADJUSTING SCREW M8X0,5 CPL.
    ADJUSTING SCREW M8X0,5 CPL.
  • 19
    46180669S ADAPTOR CPL. D=46 H=28
    ADAPTOR CPL. D=46 H=28
  • 20
    46181183S NUT M10X1 PDS
    NUT M10X1 PDS
  • 21
    46181184 PISTON Ш35,5 PDS
    PISTON Ш35,5 PDS
  • 22
    46181025 SANDWICH BUSH 10X17X17
    SANDWICH BUSH 10X17X17
  • 23
    46810474 PISTON ROD NUT
    PISTON ROD NUT
  • 24
    46181153ES PISTON CPL. Ш12 Ш42 BLEED HOLE
    PISTON CPL. Ш12 Ш42 BLEED HOLE
  • 25
    46181194 REBOUND W ASHER 12X36 T4 H0
    REBOUND W ASHER 12X36 T4 H0
  • 98
    50180751S1 SHOCK ABSORBER FLUID 5 LT
    SHOCK ABSORBER FLUID 5 LT
  • 99
    RP10004 REVISION KIT MONOSHOCK MINI
    REVISION KIT MONOSHOCK MINI
