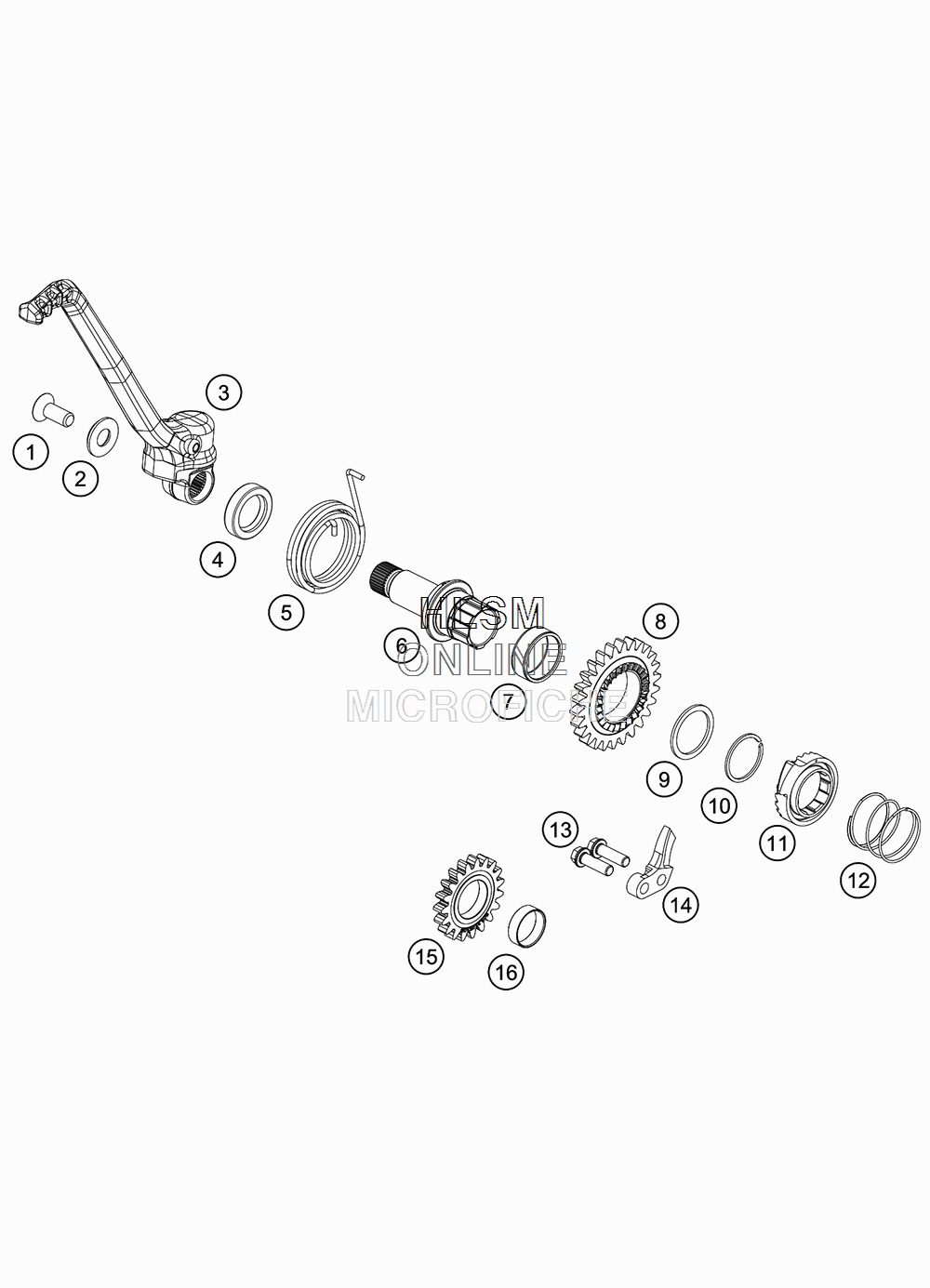

KICK STARTER для Ktm 150 XCW - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    0019080206S FLAT HEAD SCREW M. ISA45 M8X20
    FLAT HEAD SCREW M. ISA45 M8X20
  • 2
    54633037000 WASHER 8MM GALVANIZED
    WASHER 8MM GALVANIZED
  • 3
    50433070044 KICKSTARTER CPL.
    KICKSTARTER CPL.
  • 4
    0760193070 SHAFT SEAL RING 19X30X7 B
    SHAFT SEAL RING 19X30X7 B
  • 5
    50433054000 KICK STARTER SPRING
    KICK STARTER SPRING
  • 6
    79233050000 KICK STARTER SHAFT
    KICK STARTER SHAFT
  • 7
    0405252910 NEEDLE BEAR K 25X29X10
    NEEDLE BEAR K 25X29X10
  • 8
    50433051026 KICK STARTER WHEEL 26T
    KICK STARTER WHEEL 26T
  • 9
    54833044000 STOP DISC 25X31X1,5
    STOP DISC 25X31X1,5
  • 10
    0417025000 CIRCLIP SW25
    CIRCLIP SW25
  • 11
    50433052000 KICK STARTER RATCHET
    KICK STARTER RATCHET
  • 12
    58033028000 RATCHET GEAR SPRING 1,2 MM
    RATCHET GEAR SPRING 1,2 MM
  • 13
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 14
    59033069000 BUMP PART
    BUMP PART
  • 15
    50433053019 STARTER INTERMEDIATE GEAR 19T
    STARTER INTERMEDIATE GEAR 19T
  • 16
    50433024050 BUSHING IDLER GEAR
    BUSHING IDLER GEAR
