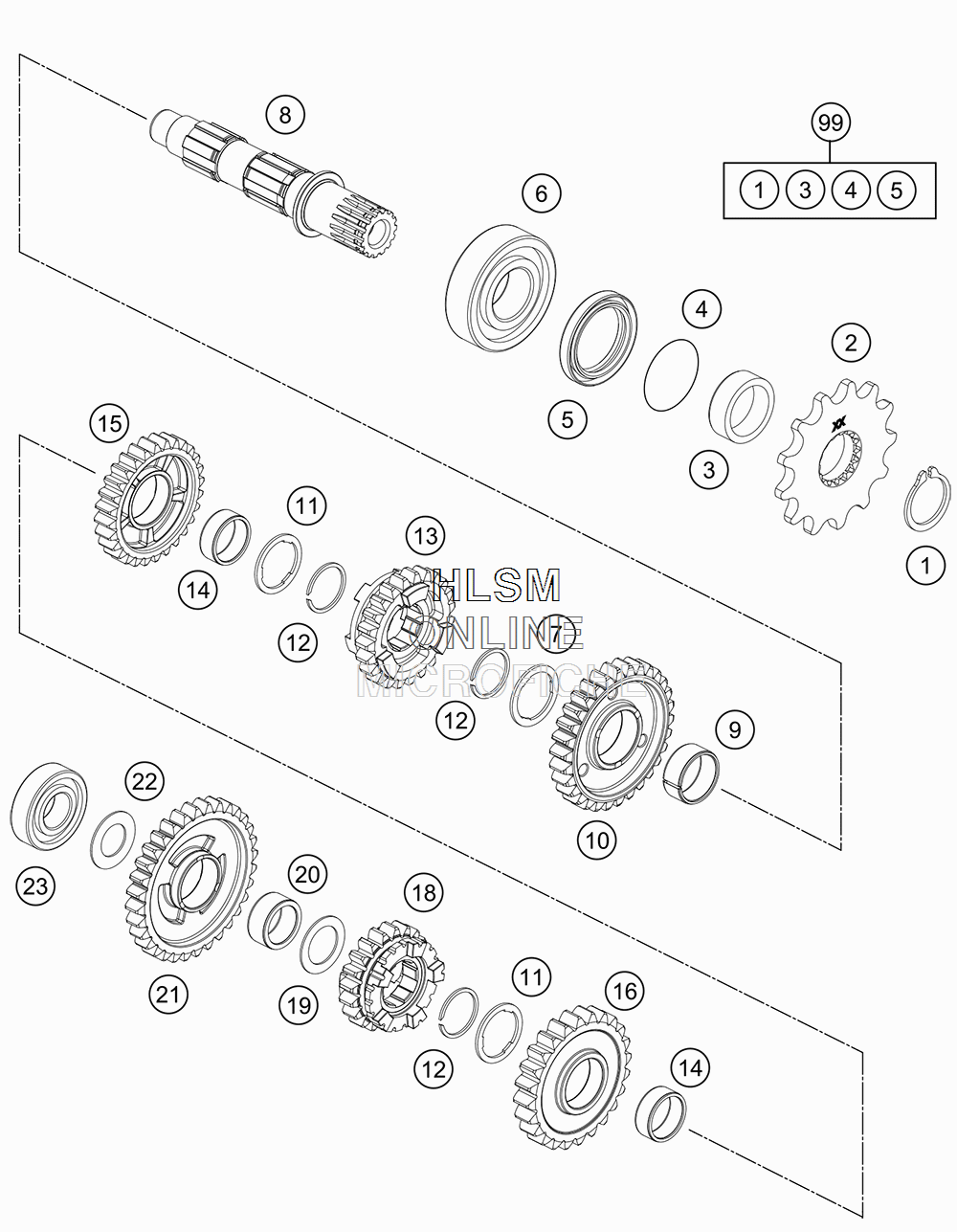

TRANSMISSION - COUNTERSHAFT для Ktm 250R FREERIDE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    52033096000 LOCK RING DIN0471-25X1,64SD
    LOCK RING DIN0471-25X1,64SD
  • 2
    50033029012 FRONT SPROCKET 12-T
    FRONT SPROCKET 12-T
  • 2
    50033029013 FRONT SPROCKET 13-T
    FRONT SPROCKET 13-T
  • 2
    50033029014 FRONT SPROCKET 14-T
    FRONT SPROCKET 14-T
  • 3
    54833032011 SPACER SLEEVE DRIVE END
    SPACER SLEEVE DRIVE END
  • 4
    0770250020 O-RING 25,00X2,00 NBR 70
    O-RING 25,00X2,00 NBR 70
  • 5
    0760324571 SHAFT SEAL RING 32X45X7 BSLNBR
    SHAFT SEAL RING 32X45X7 BSLNBR
  • 6
    54833025000 BALL BEARING TM-SC05C20C4 NTN
    BALL BEARING TM-SC05C20C4 NTN
  • 7
    77733044000 STOP DISC 24X32X1,5
    STOP DISC 24X32X1,5
  • 8
    72533010000 COUNTER SHAFT CPL.
    COUNTER SHAFT CPL.
  • 9
    0405242812 NEDDLE BEAR. K24X28X11,9 DIV.
    NEDDLE BEAR. K24X28X11,9 DIV.
  • 10
    77733112000 IDLER GEAR 2ND G. T=30
    IDLER GEAR 2ND G. T=30
  • 11
    77733043000 STOP DISC 23,4X31X1,5
    STOP DISC 23,4X31X1,5
  • 12
    0417024000 CIRCLIP WS24
    CIRCLIP WS24
  • 13
    77733115100 SLIDING GEAR 5.G.,Z=23
    SLIDING GEAR 5.G.,Z=23
  • 14
    0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED
    NEEDLE BEAR.K 22X26X10 DIVIDED
  • 15
    77733114100 IDLER GEAR 4.G. Z=28
    IDLER GEAR 4.G. Z=28
  • 16
    77733113100 IDLER GEAR 3.G. Z=24
    IDLER GEAR 3.G. Z=24
  • 18
    72033016000 SLIDING GEAR 6TH GEAR, 20T
    SLIDING GEAR 6TH GEAR, 20T
  • 19
    54833080000 STOP DISC 20,2X30X1
    STOP DISC 20,2X30X1
  • 20
    0405202612 NEEDLE BEARING K 20X26X12
    NEEDLE BEARING K 20X26X12
  • 21
    77733011000 IDLER GEAR 1ST G. T=32
    IDLER GEAR 1ST G. T=32
  • 22
    56033030000 STOP DISC 17,2X30X1
    STOP DISC 17,2X30X1
  • 23
    0625062035 BALL BEARING 6203 JR2 C3
    BALL BEARING 6203 JR2 C3
  • 99
    00050000940 COUNTER SHAFT REP.KIT 2 STROKE
    COUNTER SHAFT REP.KIT 2 STROKE
