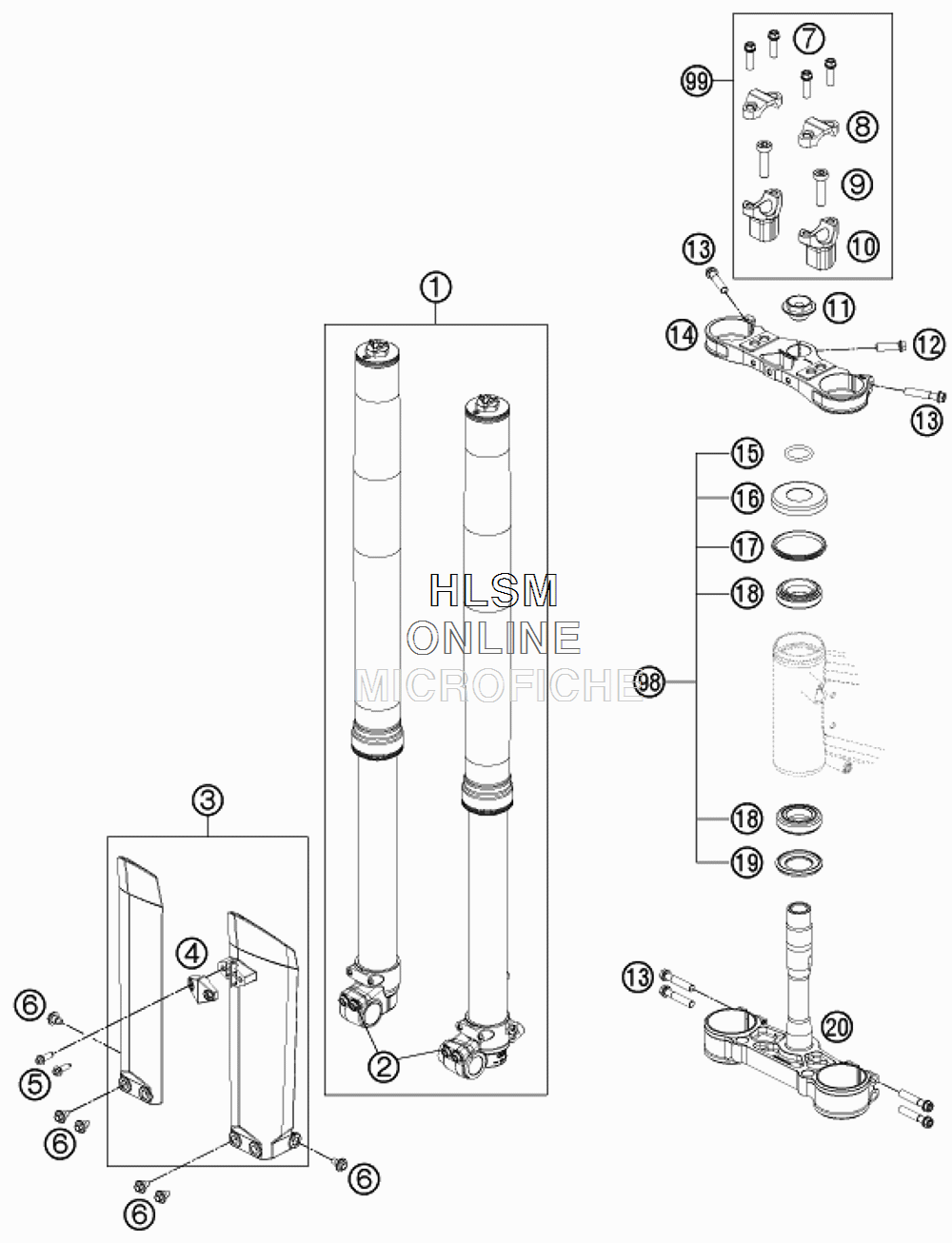

FRONT FORK- TRIPLE CLAMP для Ktm 250R FREERIDE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    05187N4201 FORK
    FORK
  • 2
    0025080206 HH COLLAR SCREW M8X20
    HH COLLAR SCREW M8X20
  • 3
    4710109400028 FORK PROTECTOR SET 85SX WHITE
    FORK PROTECTOR SET 85SX WHITE
  • 4
    4710108500028 CLAMP FOR BRAKE HOSE
    CLAMP FOR BRAKE HOSE
  • 5
    0017060206 SCREW F. PLASTIC K60X20AL
    SCREW F. PLASTIC K60X20AL
  • 6
    59001092050 SPECIAL SCREW M6X12,5
    SPECIAL SCREW M6X12,5
  • 7
    0025080256 HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 8
    77201038000 HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 9
    0032100356S AH-COLLAR SCREW M10X35 ISA45
    AH-COLLAR SCREW M10X35 ISA45
  • 10
    59401039047 HANDLEB .SUPP . D=28MM H=47MM
    HANDLEB .SUPP . D=28MM H=47MM
  • 11
    72001036000 COLLAR SCREW M20X1,5 WS17 AL
    COLLAR SCREW M20X1,5 WS17 AL
  • 12
    0025080256S HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 13
    0025080406 HH COLLAR SCREW M8X40
    HH COLLAR SCREW M8X40
  • 14
    7000103402030 TOP FORK PLATE BLACK
    TOP FORK PLATE BLACK
  • 15
    0770025035 O-RING 25X3,55 NBR70
    O-RING 25X3,55 NBR70
  • 16
    78101086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 17
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 18
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 19
    77701084000 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 20
    7000103202030 BOT.TRIPLE CLAMP CPL. BL. 20MM
    BOT.TRIPLE CLAMP CPL. BL. 20MM
  • 98
    00050000930 STEARING HEAD REP. KIT
    STEARING HEAD REP. KIT
  • 99
    00050000926 HANDLEB AR SUPPOR T KIT
    HANDLEB AR SUPPOR T KIT
