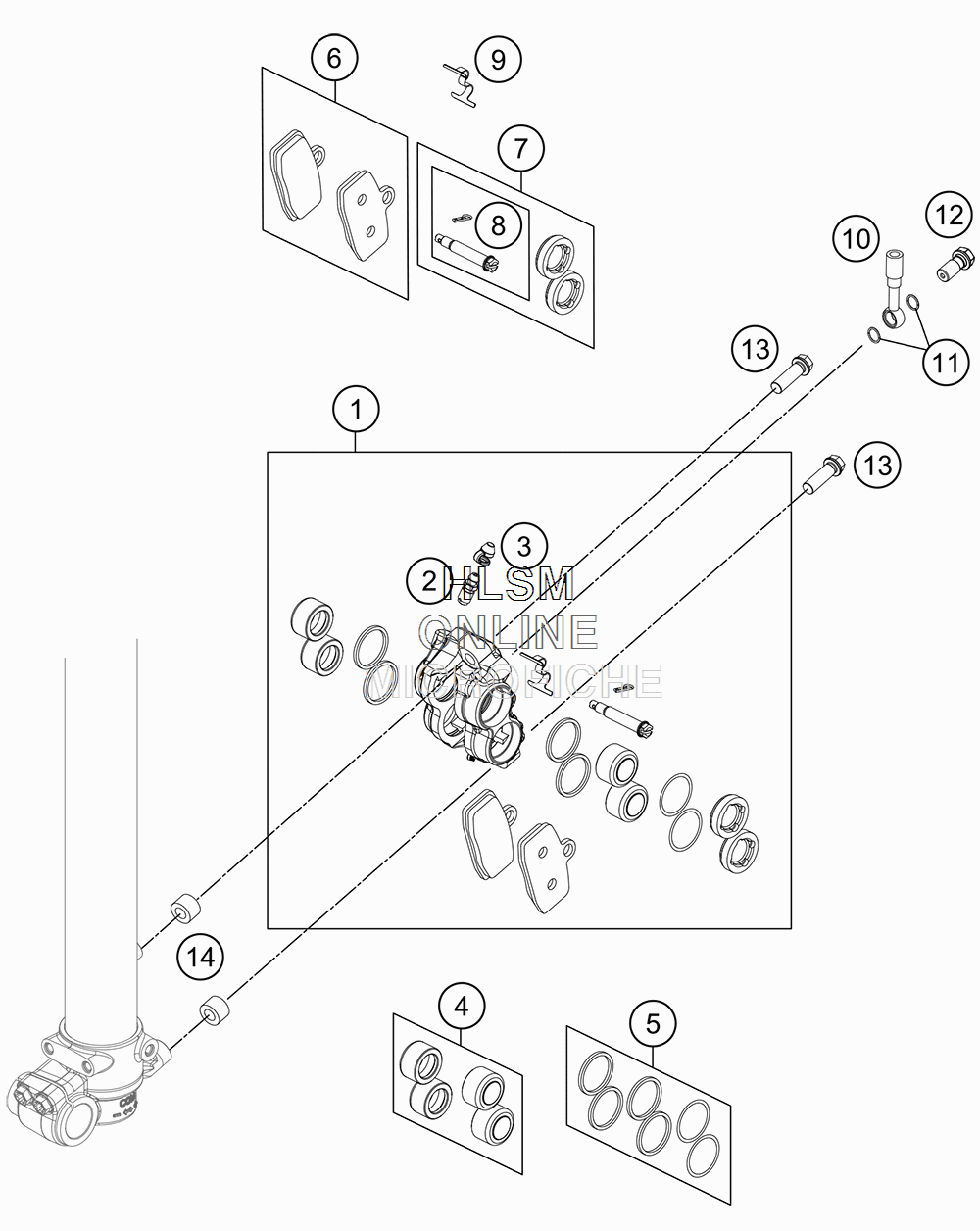

BRAKE CALIPER FRONT для Ktm 250R FREERIDE - 2017 года выпуска
-
№АртикулНазвание
-
17201301500028 BRAKE CALIPER FRONT CPL. WHITEBRAKE CALIPER FRONT CPL. WHITE
-
247013020000 BLEEDER SCREW M6BLEEDER SCREW M6
-
347013021000 CAP FOR BLEEDER SCREWCAP FOR BLEEDER SCREW
-
447013019000 REPAIR KIT BRAKEPISTONREPAIR KIT BRAKEPISTON
-
547013022000 REP. KIT SEALSREP. KIT SEALS
-
672013030000 BRAKE PADS FRONTBRAKE PADS FRONT
-
647013030000 BRAKE PAD SET FRONTBRAKE PAD SET FRONT
-
747013023000 PISTONCOVER 85SXPISTONCOVER 85SX
-
847013030050 PIN BRAKE PAD CPL. 2012PIN BRAKE PAD CPL. 2012
-
947013018100 RETAINING SPRING FRONT 85SXRETAINING SPRING FRONT 85SX
-
1072013010000 FRONT BRAKE HOSE L=1165MM DOTFRONT BRAKE HOSE L=1165MM DOT
-
110770080019 O-RING 8,00X1,00 FORMULAO-RING 8,00X1,00 FORMULA
-
1247013025000 HOLLOW SCREW BRAKE CYLINDERHOLLOW SCREW BRAKE CYLINDER
-
130025080456S HH COLLAR SCREW M8X45 ISA40HH COLLAR SCREW M8X45 ISA40
-
1470013098150 DISTANCE SLEEVE 8,1X15X20,5MMDISTANCE SLEEVE 8,1X15X20,5MM
