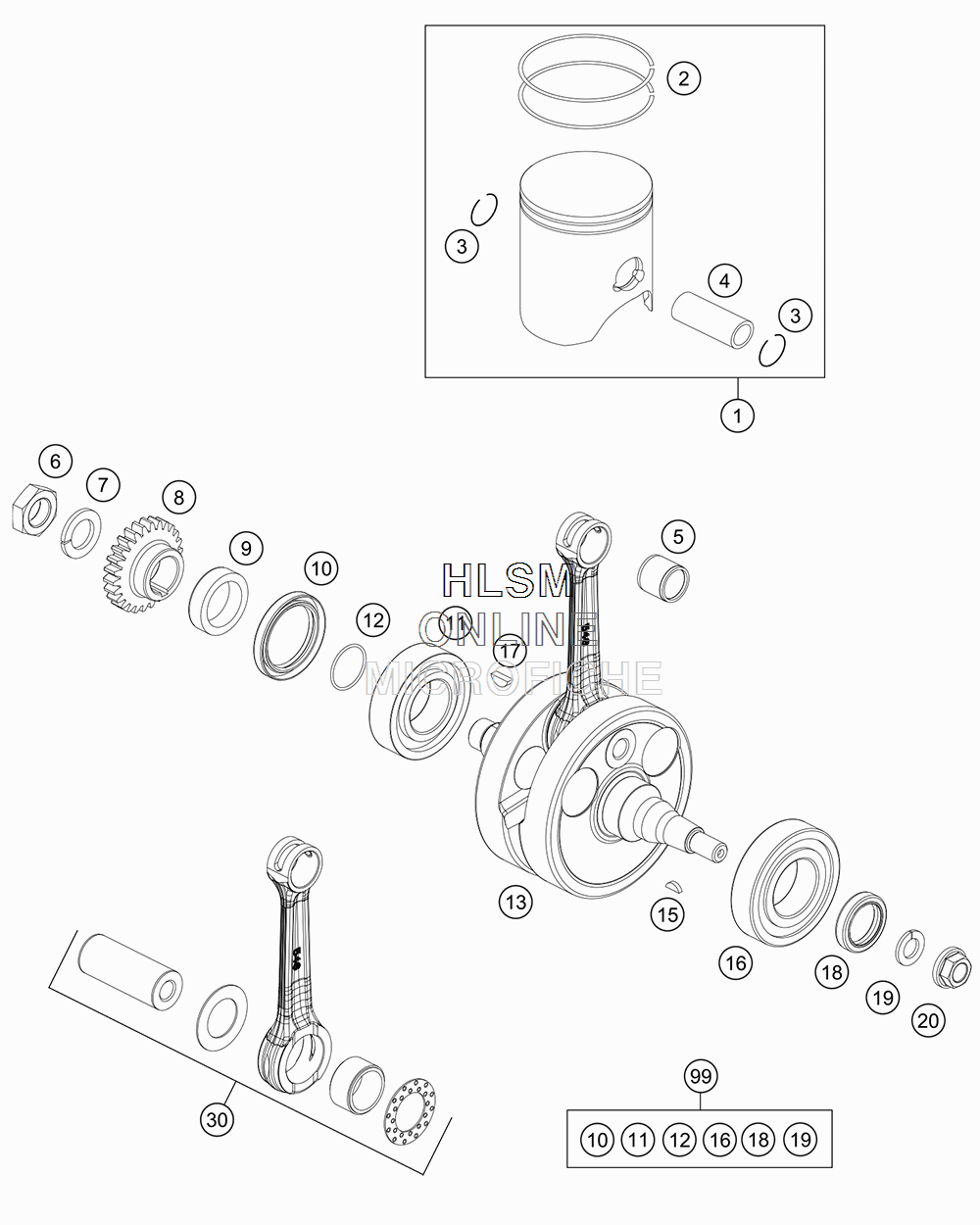

CRANKSHAFT - PISTON для Ktm 250R FREERIDE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    72530007000I PISTON I 250 FREERIDE CPL.
    PISTON I 250 FREERIDE CPL.
  • 1
    72530007000II PISTON II 250 FREERIDE CPL.
    PISTON II 250 FREERIDE CPL.
  • 2
    54830232000 TRAPEZOID RING 250 66,4 MM
    TRAPEZOID RING 250 66,4 MM
  • 3
    54030074000 WIRE LOCK RING C18X1,5
    WIRE LOCK RING C18X1,5
  • 4
    54830233000 PISTON PIN
    PISTON PIN
  • 5
    54430034000 NEEDLE BEARING KBK 18X22X20
    NEEDLE BEARING KBK 18X22X20
  • 6
    54630029000 HEX.NUT L/SH M18X1,5
    HEX.NUT L/SH M18X1,5
  • 7
    58132072000 LOCK WASHER VSK 18
    LOCK WASHER VSK 18
  • 8
    54832000026 PRIMARY GEAR 26T
    PRIMARY GEAR 26T
  • 9
    54830016000 SPACER SLEEVE 28X38X10
    SPACER SLEEVE 28X38X10
  • 10
    0760385273 SHAFT SEAL RING 38X52X7BTSL
    SHAFT SEAL RING 38X52X7BTSL
  • 11
    0625623204 BALL BEARING 32X65X17 NTN
    BALL BEARING 32X65X17 NTN
  • 12
    0770250015 O-RING 25,00X1,50 NBR 70
    O-RING 25,00X1,50 NBR 70
  • 13
    54830118300 CRANKSHAFT CPL. 250 EXC
    CRANKSHAFT CPL. 250 EXC
  • 15
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 16
    56530123200 CYLIND.ROL.BEAR. NJ207ET2XCS42
    CYLIND.ROL.BEAR. NJ207ET2XCS42
  • 17
    6946005 WOODRUFF KEY 5X6,5 HARDED
    WOODRUFF KEY 5X6,5 HARDED
  • 18
    0760253570 SHAFT SEAL RING 25X35X7 BTSL
    SHAFT SEAL RING 25X35X7 BTSL
  • 19
    50230029012 LOCKING RING VSK 12
    LOCKING RING VSK 12
  • 20
    49030021000 COLLAR NUT M12X1 R/S
    COLLAR NUT M12X1 R/S
  • 30
    54830015244 CON.ROD REP.SET
    CON.ROD REP.SET
  • 99
    00050002301 CRANKSHAF REP. KIT
    CRANKSHAF REP. KIT
