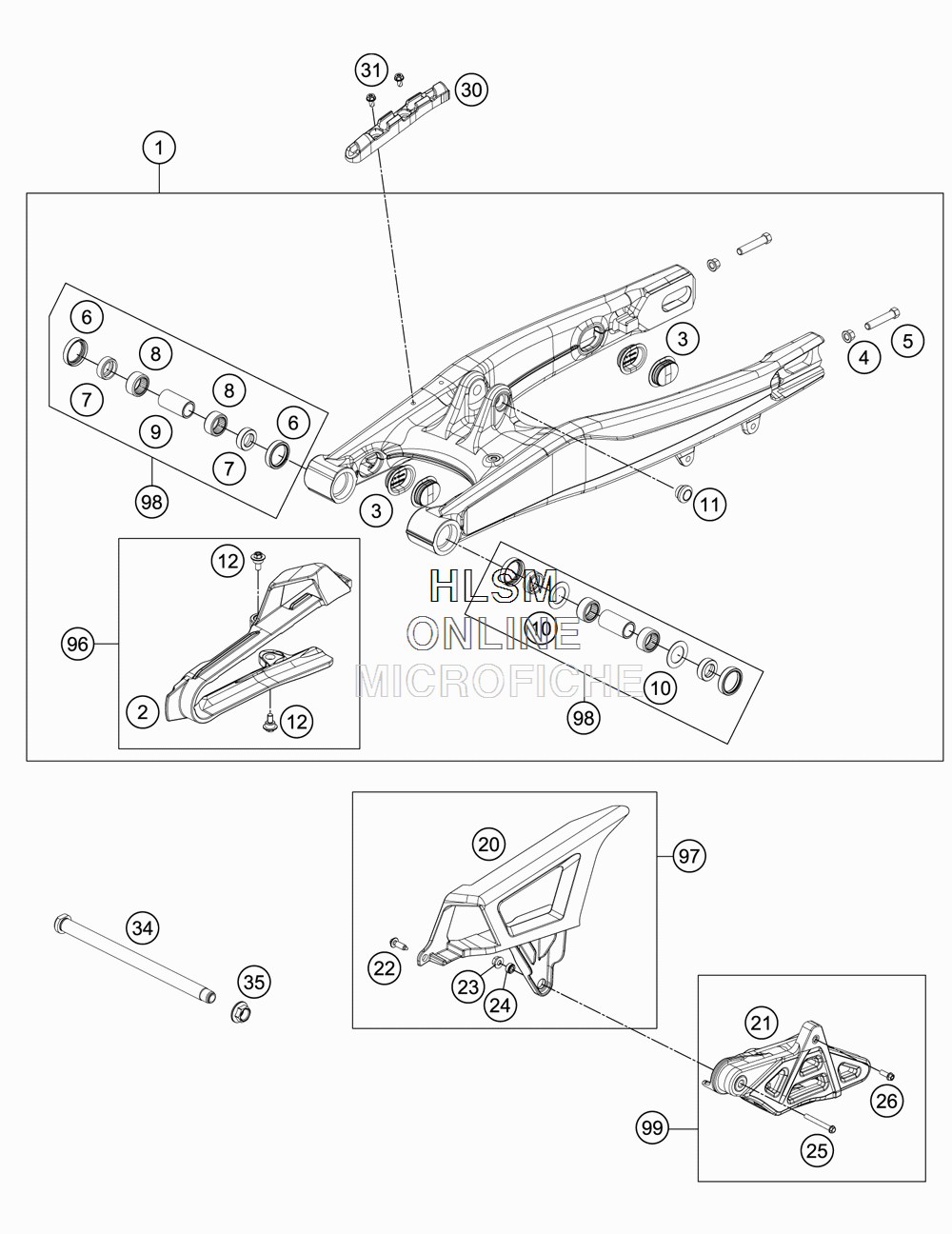

SWING ARM для Ktm 250 FREERIDE - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    70004030044 SWINGARM CPL.
    SWINGARM CPL.
  • 2
    70004066000 CHAIN GUIDE GUARD
    CHAIN GUIDE GUARD
  • 3
    77204041000 CLOSING COVER
    CLOSING COVER
  • 4
    46030045000 COLLAR NUT M8 WS=10
    COLLAR NUT M8 WS=10
  • 5
    50203030090 HH SCREW M8X40 WS=10
    HH SCREW M8X40 WS=10
  • 6
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 7
    54603090000 BUCKET F .SHAFTSEALRING 15X25X9
    BUCKET F .SHAFTSEALRING 15X25X9
  • 8
    59004031000 NEEDLE BUSH HK2012V
    NEEDLE BUSH HK2012V
  • 9
    50203081700 BUSHING SLEEVE 15X20X38,75
    BUSHING SLEEVE 15X20X38,75
  • 10
    59033080000 SHIM 20X32X1
    SHIM 20X32X1
  • 11
    50180105 THREADED BUSH M12 PDS
    THREADED BUSH M12 PDS
  • 12
    83008100015 SPECIAL SCREW M6X15X5,5
    SPECIAL SCREW M6X15X5,5
  • 20
    70004060000 CHAIN GUARD
    CHAIN GUARD
  • 21
    78104070100 CHAIN GUIDE EXC
    CHAIN GUIDE EXC
  • 22
    0017060205 SCREW FOR PLASTIC K60X20 SW6
    SCREW FOR PLASTIC K60X20 SW6
  • 23
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 24
    54603055051 PRESS IN NUT M6 STEEL ZINC
    PRESS IN NUT M6 STEEL ZINC
  • 25
    0025060506 HH COLLAR SCREW M6X50 TX30
    HH COLLAR SCREW M6X50 TX30
  • 26
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 30
    70013047000 BRAKE HOSE GUIDE
    BRAKE HOSE GUIDE
  • 31
    0009050106 EJOT SPIRAL SCREW SF M5X10-K
    EJOT SPIRAL SCREW SF M5X10-K
  • 34
    70004037000 SWING ARM BOL T L=239
    SWING ARM BOL T L=239
  • 35
    77204087000 HEX NUT M14X1.5 SW17
    HEX NUT M14X1.5 SW17
  • 96
    70004066010 CHAIN GUARD KIT
    CHAIN GUARD KIT
  • 97
    70004060110 CHAIN PROTECTION KIT
    CHAIN PROTECTION KIT
  • 98
    47004230010 SWINGAR M REP . KIT
    SWINGAR M REP . KIT
  • 99
    77304070310 CHAIN GUIDE KIT REAR
    CHAIN GUIDE KIT REAR
