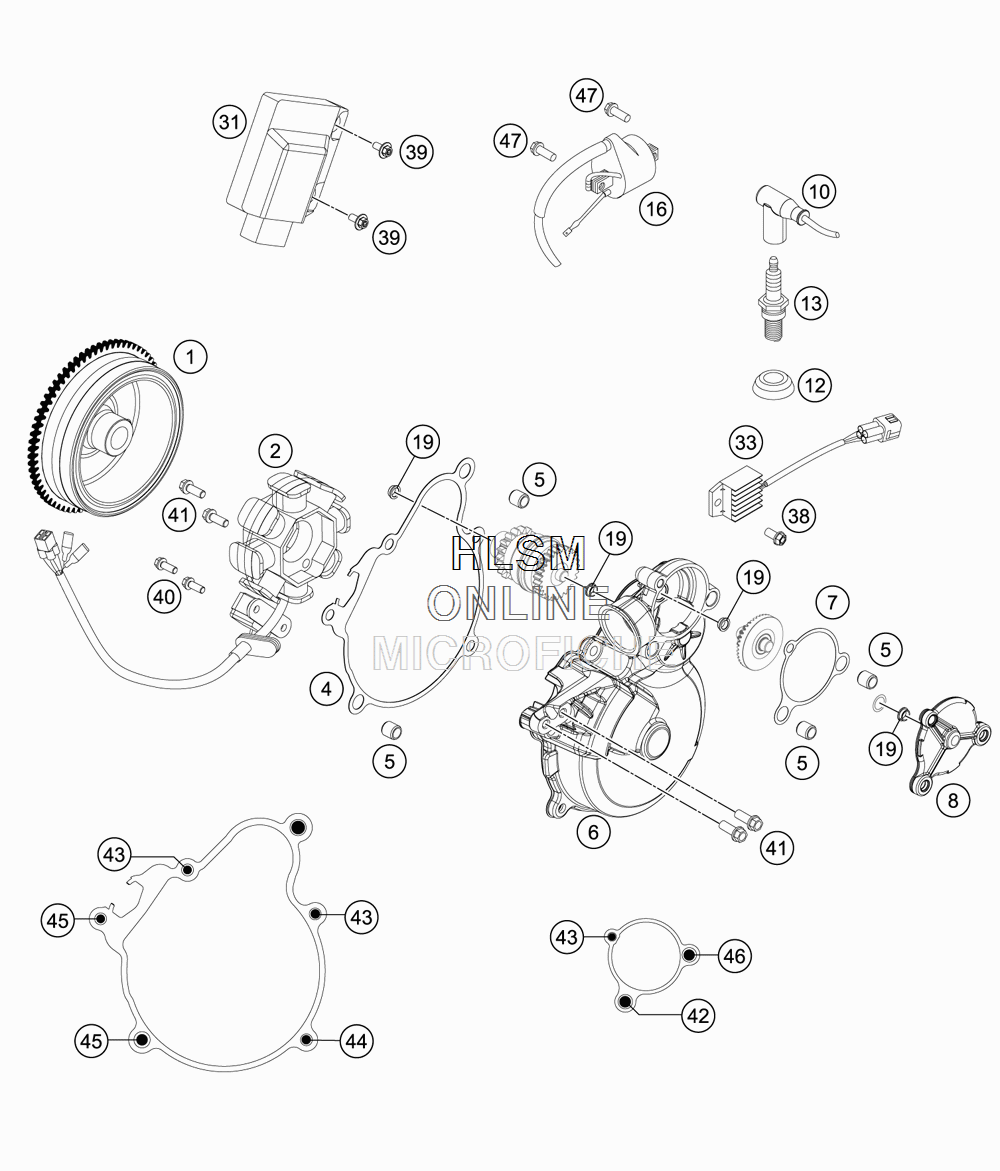

IGNITION SYSTEM для Ktm 250 FREERIDE - 2015 года выпуска
-
№АртикулНазвание
-
155139005000 FL YWHEEL KOKUSANFL YWHEEL KOKUSAN
-
255139004000 STATOR KOKUSANSTATOR KOKUSAN
-
455130040100 GASKETGASKET
-
549030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
65513000234433 IGNITION COVER CPL.IGNITION COVER CPL.
-
755130041100 IGN. OUTSIDE COVER. GASKETIGN. OUTSIDE COVER. GASKET
-
85513004524433 OUTER IGNITION COVER CPL.OUTER IGNITION COVER CPL.
-
1047039090000 SP ARK PLUG CAP NGK REINFORC.SP ARK PLUG CAP NGK REINFORC.
-
1250231012000 SEALING CUP FOR SPARK PLUGSEALING CUP FOR SPARK PLUG
-
1354739093000 SP ARK PLUG NGK BR7ESSP ARK PLUG NGK BR7ES
-
1659039006000 IGNITIONCOI L "IG5128"IGNITIONCOI L "IG5128"
-
1955140030100 COLLAR BUSHINGCOLLAR BUSHING
-
3172539031000 CDI UNIT 250 FREERIDECDI UNIT 250 FREERIDE
-
3372511034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
380025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
390023060123 COLLAR SCREW M6X12 TXCOLLAR SCREW M6X12 TX
-
400014050123 HH COLLAR SCREW M 5X12 WS=6HH COLLAR SCREW M 5X12 WS=6
-
410025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
420025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
430025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
440025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
450025060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
-
460025060706 HH COLLAR SCREW M6X70 TX30HH COLLAR SCREW M6X70 TX30
-
470026060186 COLLAR SCREW M6X18 ISA30COLLAR SCREW M6X18 ISA30
