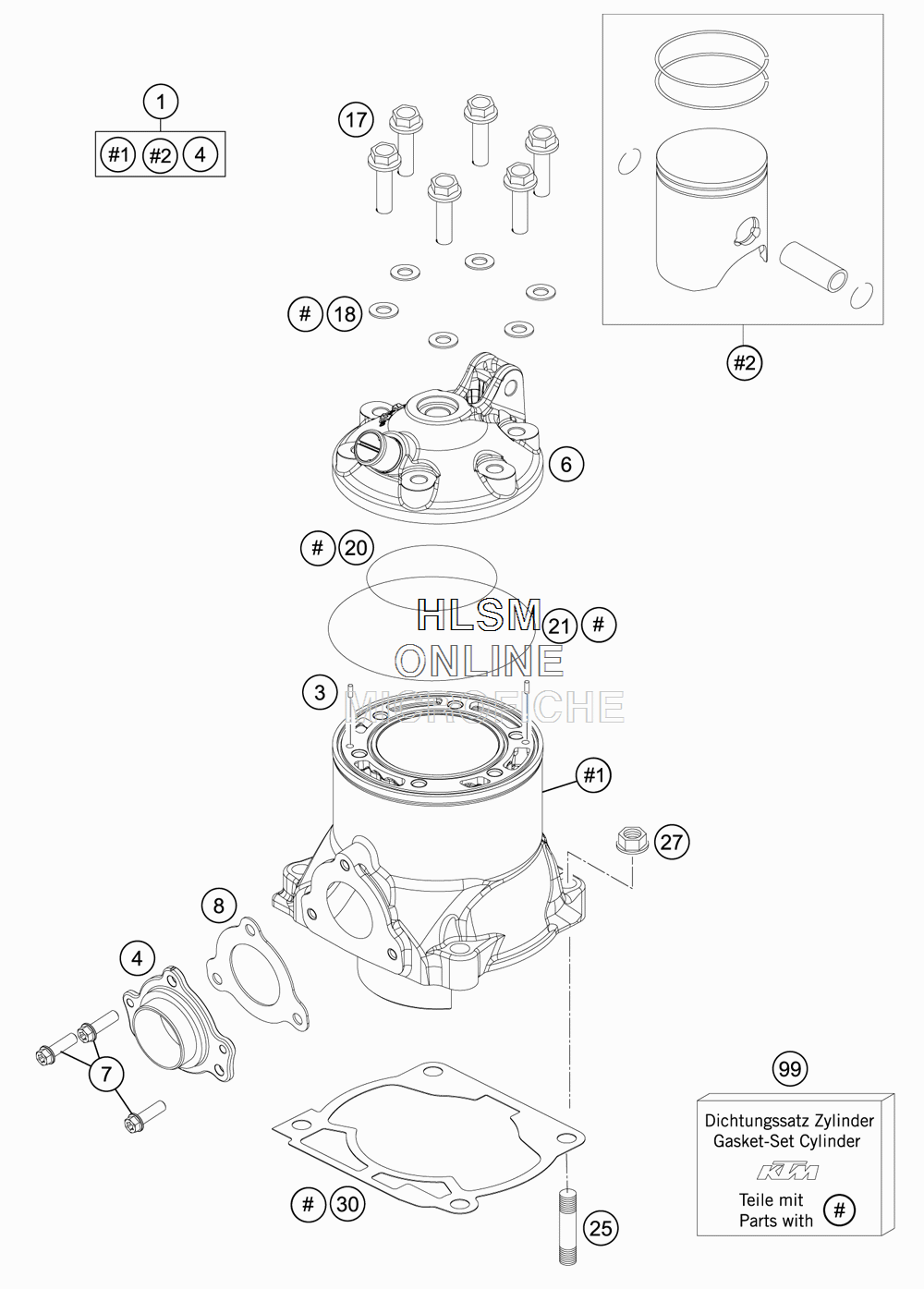

CYLINDER - CYLINDER HEAD для Ktm 250 FREERIDE - 2015 года выпуска
-
№АртикулНазвание
-
172530038044 CYLINDER + PISTON CPL.CYLINDER + PISTON CPL.
-
30402040980 NEEDLE ROL.DIN540 2 NRB 4X9,8NEEDLE ROL.DIN540 2 NRB 4X9,8
-
472536039000 EXHAUST FLANGEEXHAUST FLANGE
-
654830706000 CYLINDER HEADCYLINDER HEAD
-
70025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
872536041000 EXHAUST FLANGE GASKETEXHAUST FLANGE GASKET
-
1754830079000 COLLAR SCREW M 8X35 WS=13COLLAR SCREW M 8X35 WS=13
-
1856530080000 CU-SEAL RING 8 X 16 X 1CU-SEAL RING 8 X 16 X 1
-
200770730020 O-RING 73,00X2,00 VITONO-RING 73,00X2,00 VITON
-
210770105020 O-RING 105,00X2,00O-RING 105,00X2,00
-
250835100351 STUD DIN0835-M10X35STUD DIN0835-M10X35
-
2754630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
3054830030002 GASKET CYLINDER BASE 0,2MMGASKET CYLINDER BASE 0,2MM
-
3054830030025 CYLINDER BASE GASKET 0.25MMCYLINDER BASE GASKET 0.25MM
-
3054830030004 GASKET CYLINDER BASE 0,4MMGASKET CYLINDER BASE 0,4MM
-
3054830030005 GASKET CYLINDER BASE 0,5MMGASKET CYLINDER BASE 0,5MM
-
3054830030075 GASKET CYLINDER BASE 0,75MMGASKET CYLINDER BASE 0,75MM
-
9972530097000 GASKET SET CYL.GASKET SET CYL.
