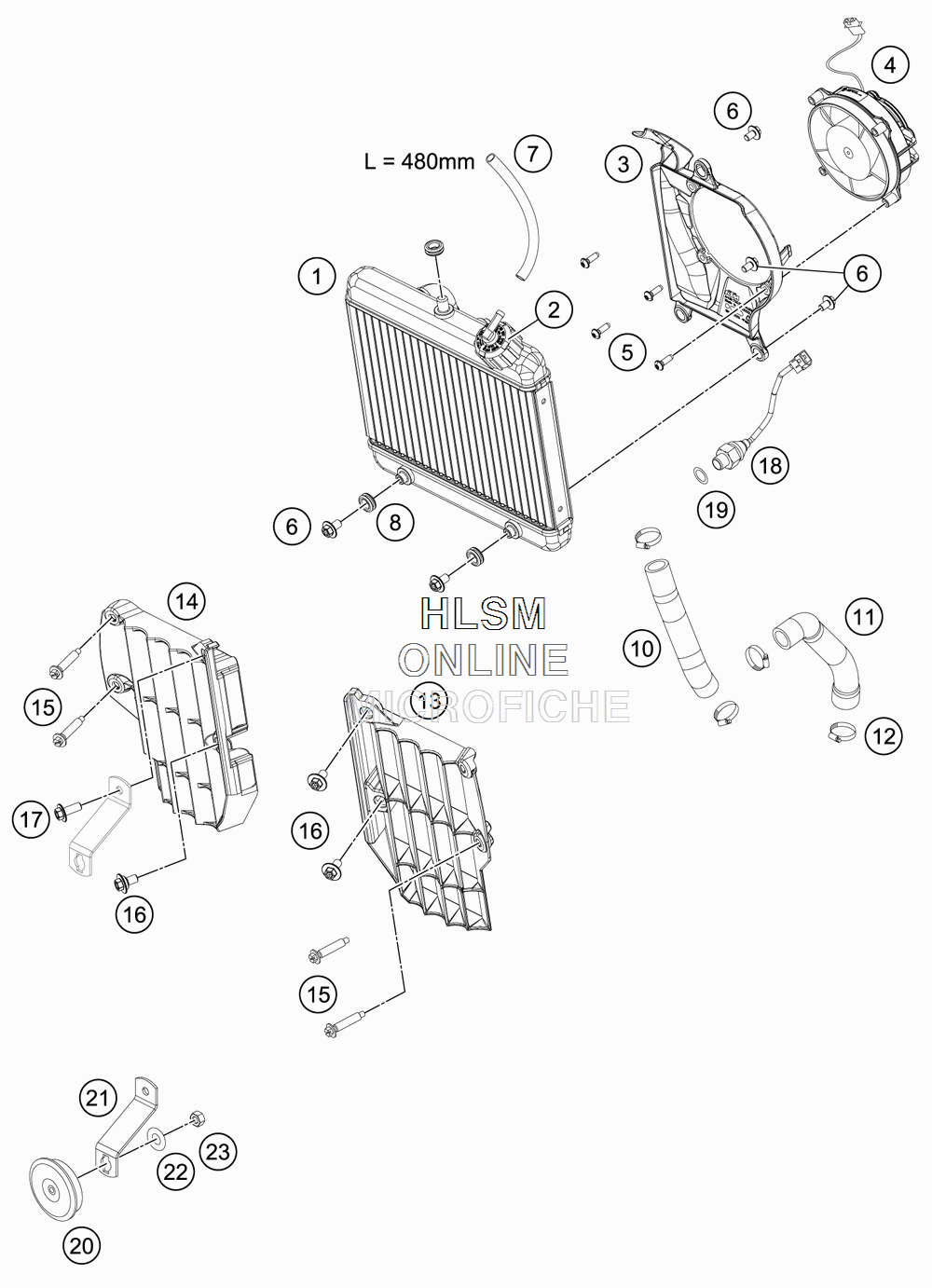

COOLING SYSTEM для Ktm 250 FREERIDE - 2015 года выпуска

№

Артикул

Название
1

72035010200 RADIATOR "15691UE "

RADIATOR "15691UE "

155 950 ₽
2

72035016000 RADIATOR CAP 1,8 BAR

RADIATOR CAP 1,8 BAR

4 820 ₽
3

72035044000 FAN COWL

FAN COWL

1 930 ₽
4

58435041000 FAN CPL. 12V

FAN CPL. 12V

37 180 ₽
5

0081050161 EJOT PT SCREW K50X16 1451

EJOT PT SCREW K50X16 1451

210 ₽
6

0024060106 HH COLLAR SCREW M6X10 TX30

HH COLLAR SCREW M6X10 TX30

500 ₽
7

50335030001 PVC-HOSE 6X9

PVC-HOSE 6X9

1 550 ₽
8

58414019000 RUBBER GROMMET 11 X 19 X 9

RUBBER GROMMET 11 X 19 X 9

110 ₽
10

72535025000 PREFORMED HOSE ENG.-COOLER R/S

PREFORMED HOSE ENG.-COOLER R/S

2 390 ₽
11

72535026000 PREFORMED HOSE CYL. - COOLER L/S

PREFORMED HOSE CYL. - COOLER L/S

2 490 ₽
12

10001020000 HOSE CLAMP GEMI 18-29

HOSE CLAMP GEMI 18-29

680 ₽
13

7203503400030 RADIATOR PROTECTOR L/S BLACK

RADIATOR PROTECTOR L/S BLACK

2 030 ₽
14

7203503500030 RADIATOR PROTECTOR R/S BLACK

RADIATOR PROTECTOR R/S BLACK

2 030 ₽
15

0017060305 SPECIAL SCREW K60X30 WS=6

SPECIAL SCREW K60X30 WS=6

290 ₽
16

83008000012 SPECIAL SCREW M6X12X3

SPECIAL SCREW M6X12X3

620 ₽
17

0024060156 HH COLLAR SCREW M6X15 TX30

HH COLLAR SCREW M6X15 TX30

560 ₽
18

72035045000 THERMOSWI TCH 95°C M14X1,5

THERMOSWI TCH 95°C M14X1,5

19 160 ₽
19

07701300151 O-RING 13,00X1,5 75FKM 72NBR

O-RING 13,00X1,5 75FKM 72NBR

410 ₽
20

50311060200 DC HORN 12V

DC HORN 12V

7 570 ₽
21

78011061000 HORN BRACKET

HORN BRACKET

1 030 ₽
22

0125050003 WASHER DIN0125-A 5,3

WASHER DIN0125-A 5,3

150 ₽
23

0934050003 HEXAGON NUT DIN0934-M 5

HEXAGON NUT DIN0934-M 5

270 ₽
