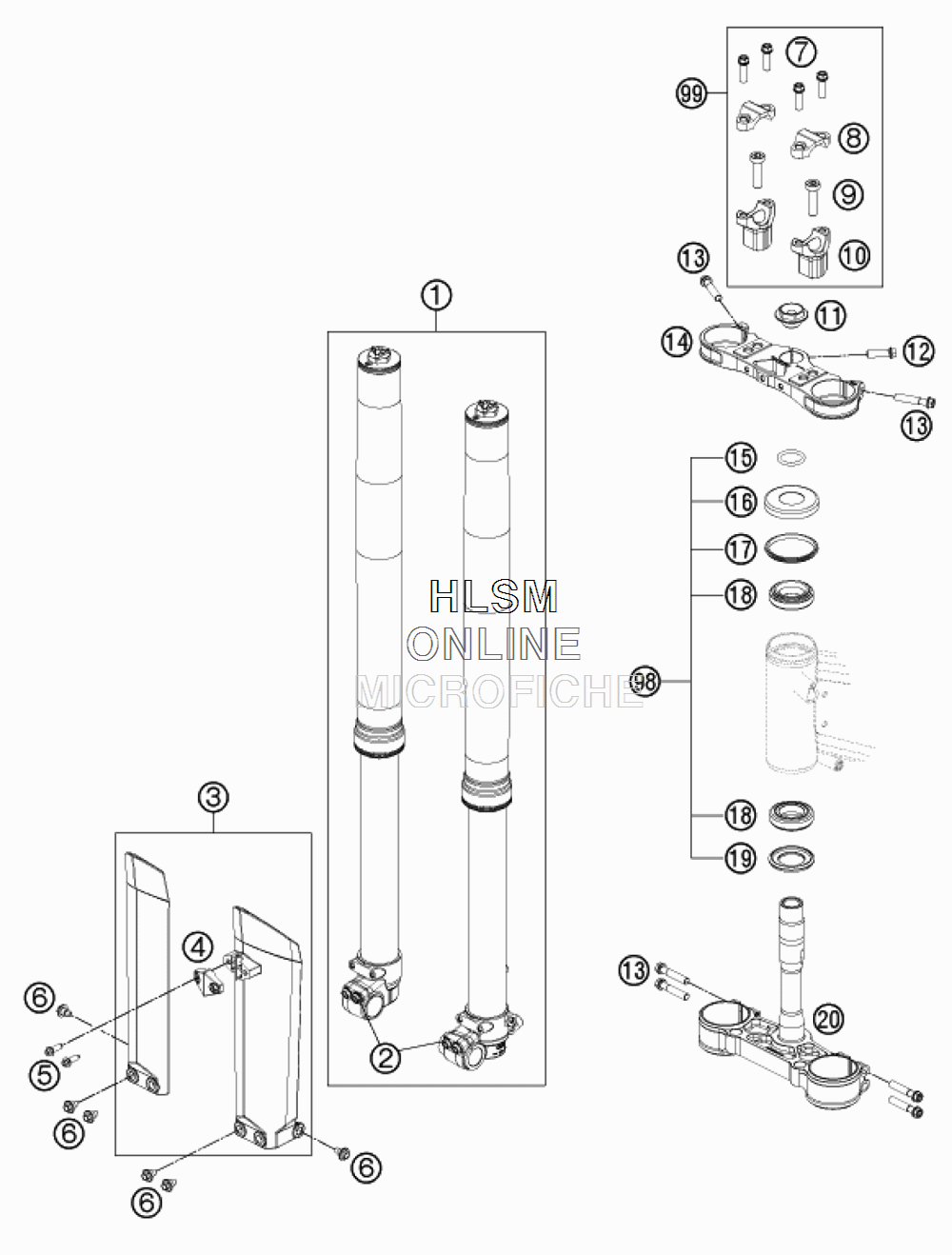

FRONT FORK TRIPLE CLAMP для Ktm 250 FREERIDE - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    05187N4201 FORK FREERIDE
    FORK FREERIDE
  • 2
    0025080206 HH COLLAR SCREW M8X20 TX40
    HH COLLAR SCREW M8X20 TX40
  • 3
    4710109400028 FORK PROTECTOR SET WHITE
    FORK PROTECTOR SET WHITE
  • 4
    4710108500028 CLAMP FOR BRAKE HOSE
    CLAMP FOR BRAKE HOSE
  • 5
    0017060206 SCREW F . PLASTIC K60X20AL SW6
    SCREW F . PLASTIC K60X20AL SW6
  • 6
    59001092050 SPECIAL SCREW M6X12,5 WS=8
    SPECIAL SCREW M6X12,5 WS=8
  • 7
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 8
    77201038000 HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 9
    0032100356S AH-COLLAR SCREW M10X35 ISA45
    AH-COLLAR SCREW M10X35 ISA45
  • 10
    59401039047 HANDLEB .SUPP . D=28MM H=47MM
    HANDLEB .SUPP . D=28MM H=47MM
  • 11
    70009082000 AXLESCRE W M20X1.5; SW17
    AXLESCRE W M20X1.5; SW17
  • 12
    0025080256S HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 13
    0025080406 HH COLLAR SCREW M8X40 TX40
    HH COLLAR SCREW M8X40 TX40
  • 14
    7000103402030 TOP FORK PLA TE BLACK
    TOP FORK PLA TE BLACK
  • 15
    0770025035 O-RING 25X3,55 NBR70
    O-RING 25X3,55 NBR70
  • 16
    78101086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 17
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 18
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 19
    77701084000 O-RING SUPPOR T W . SEALING LIP
    O-RING SUPPOR T W . SEALING LIP
  • 20
    7000103202030 BOT .TRIPLE CLAMP CPL. BL. 20MM
    BOT .TRIPLE CLAMP CPL. BL. 20MM
  • 98
    00050000930 STEARING HEAD REP . KIT
    STEARING HEAD REP . KIT
  • 99
    00050000926 HANDLEBAR SUPPORT KIT FREERIDE
    HANDLEBAR SUPPORT KIT FREERIDE
