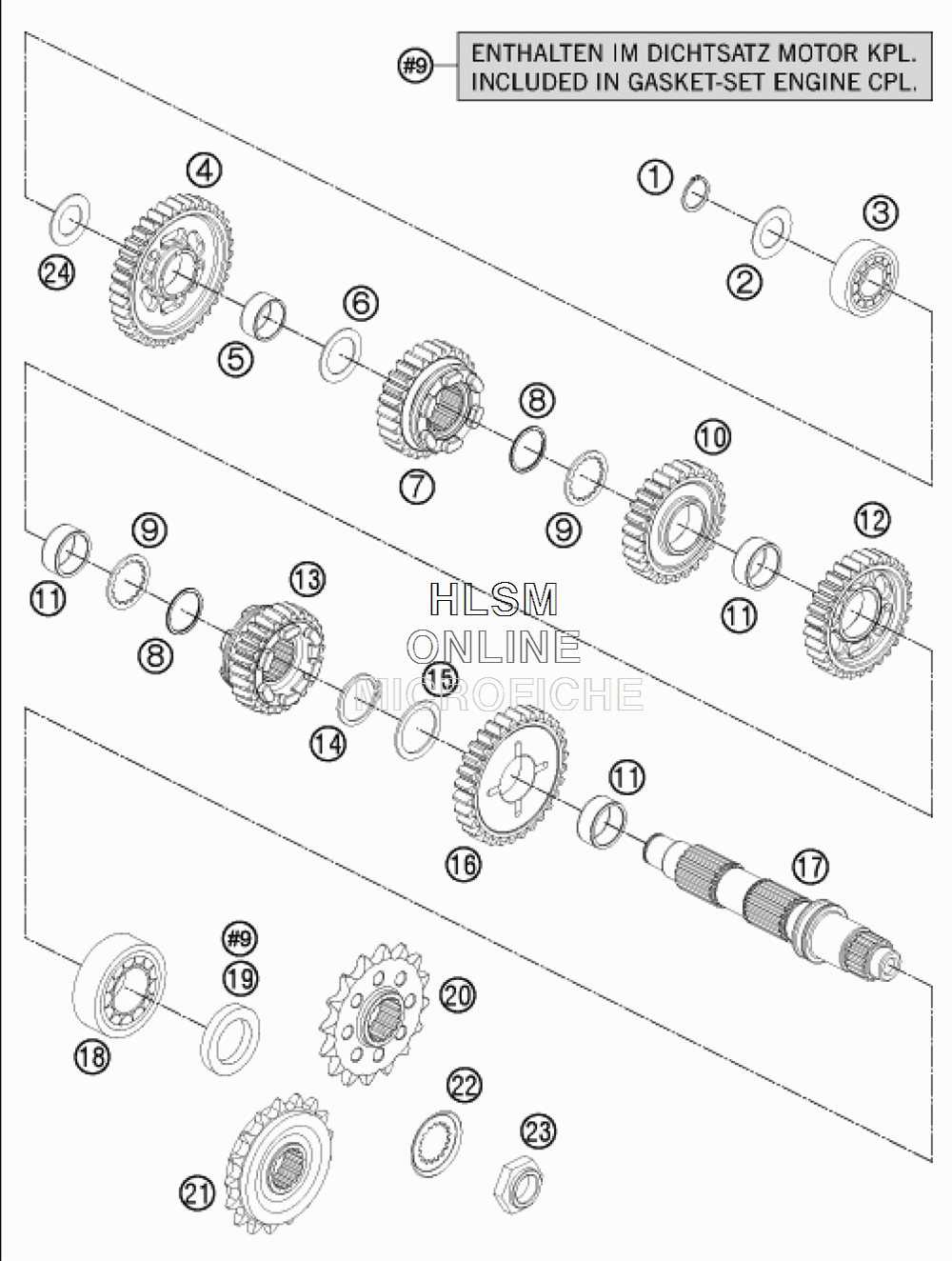

TRANSMISSION - COUNTERSHAFT для Ktm 1190 RC8R - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    0471200120 CIRCLIP DIN471 20X1,2
    CIRCLIP DIN471 20X1,2
  • 2
    60033043000 STOP DISK 20,2 X 34 X 1
    STOP DISK 20,2 X 34 X 1
  • 3
    0625062043 BALL BEARING 6204 J1 C3
    BALL BEARING 6204 J1 C3
  • 4
    61233011100 IDLER GEAR 1.G
    IDLER GEAR 1.G
  • 5
    0405242813 NEEDLE BEAR. K 24X28X13 TN
    NEEDLE BEAR. K 24X28X13 TN
  • 6
    60033044000 STOP DISK 24,3/35,75/1
    STOP DISK 24,3/35,75/1
  • 7
    61233015100 SLIDING GEAR 5.G
    SLIDING GEAR 5.G
  • 8
    0471029000 TWISTED CIRCLIP D29
    TWISTED CIRCLIP D29
  • 9
    61233045000 STOP DISK 27/36/1,5
    STOP DISK 27/36/1,5
  • 10
    61233014100 IDLER GEAR 4.G
    IDLER GEAR 4.G
  • 11
    0405263113 NEEDLE BEAR. K 26-31-13
    NEEDLE BEAR. K 26-31-13
  • 12
    61233013100 IDLER GEAR 3.G
    IDLER GEAR 3.G
  • 13
    61233016100 SLIDING GEAR 6.G
    SLIDING GEAR 6.G
  • 14
    0471300151 CIRCLIP DIN0471-30X1,5 NIRO
    CIRCLIP DIN0471-30X1,5 NIRO
  • 15
    61233046000 STOP DISK 29,9/39/1,5
    STOP DISK 29,9/39/1,5
  • 16
    61233012100 IDLER GEAR 2.G
    IDLER GEAR 2.G
  • 17
    61233010000 COUNTER SHAFT
    COUNTER SHAFT
  • 18
    50330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46
    CYL.ROLLER BEAR.NJ206 ET2XCS46
  • 19
    0760304772 SH.SEAL RING 30X47X7 BSL VITON
    SH.SEAL RING 30X47X7 BSL VITON
  • 20
    60033129016 CHAIN SPROCKET 16-T DAMP
    CHAIN SPROCKET 16-T DAMP
  • 20
    60033029017 CHAIN SPROCKET 17-T
    CHAIN SPROCKET 17-T
  • 21
    60033129017 CHAIN SPROCKET 17-T DAMPED
    CHAIN SPROCKET 17-T DAMPED
  • 22
    60033034000 SECURING PLATE TOOTHED
    SECURING PLATE TOOTHED
  • 23
    60033035000 HEXAGON NUT M20X1,5
    HEXAGON NUT M20X1,5
  • 24
    60033043000 STOP DISK 20,2 X 34 X 1
    STOP DISK 20,2 X 34 X 1
