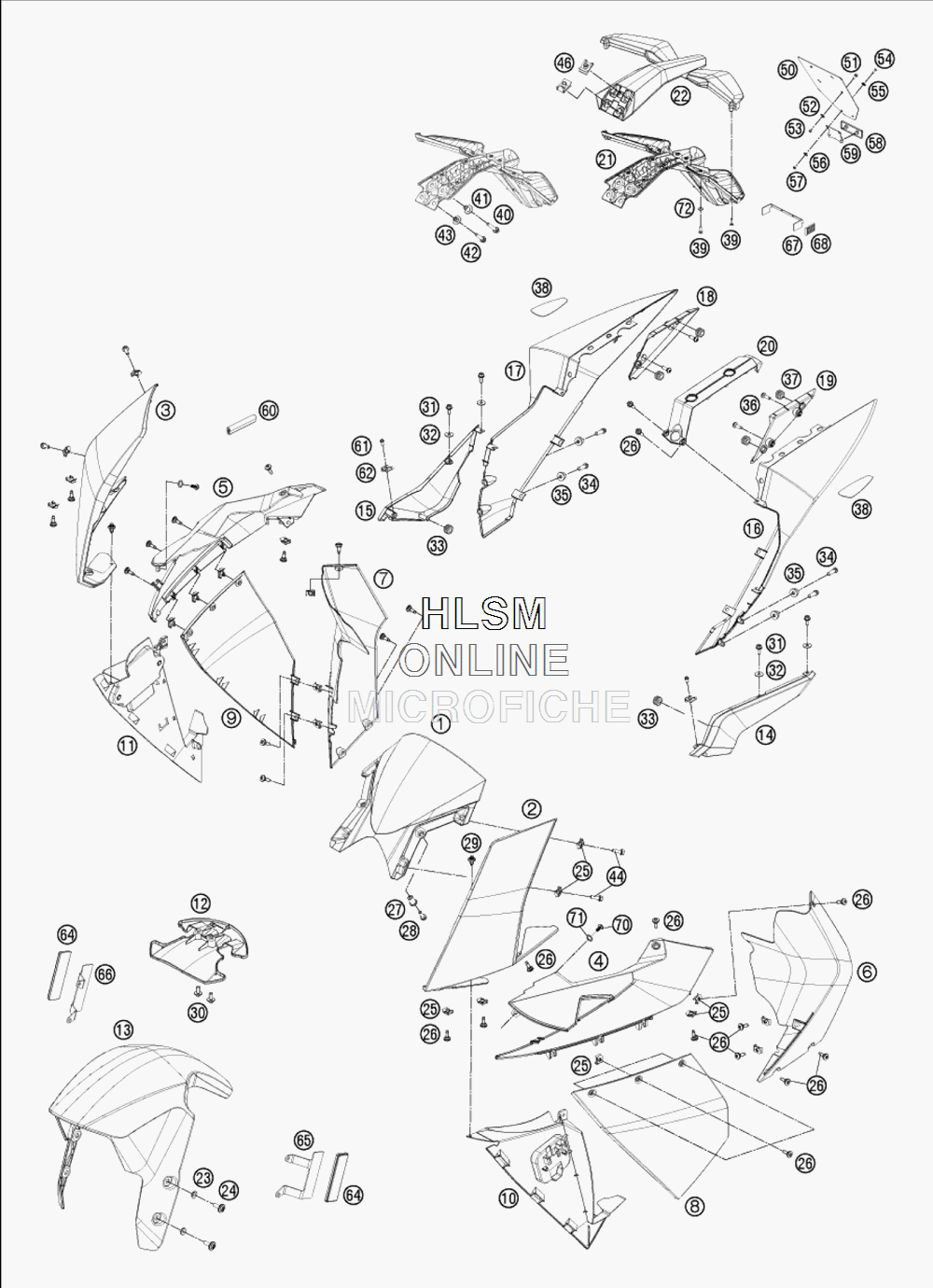

MASK FENDERS для Ktm 1190 RC8R - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    69108008000 FAIRING SCREEN HIGH
    FAIRING SCREEN HIGH
  • 2
    6900800110028B FR.FAIR. UP PART L/S WE.GL.RC8
    FR.FAIR. UP PART L/S WE.GL.RC8
  • 3
    6900800210028B FR.FAIR. UP PART R/S WE.GL.RC8
    FR.FAIR. UP PART R/S WE.GL.RC8
  • 4
    6900800300028B FR.FAIR. LO.PART L/S WS.GL RC8
    FR.FAIR. LO.PART L/S WS.GL RC8
  • 5
    6900800400028B FR.FAIR. LO.PART R/S WS.GL RC8
    FR.FAIR. LO.PART R/S WS.GL RC8
  • 6
    6900805200004A EXHAUST SHAFT L/S ORA.BRILL.
    EXHAUST SHAFT L/S ORA.BRILL.
  • 7
    6900805310004A EXHAUST SHAFT R/S
    EXHAUST SHAFT R/S
  • 8
    6900805000030D COOLER FAIRING L/S SW. GL
    COOLER FAIRING L/S SW. GL
  • 9
    6900805100030D COOLER FAIRING R/S SW.GL
    COOLER FAIRING R/S SW.GL
  • 10
    6900802210033 FRESH-AIR SHAFT L/S BL. MA.
    FRESH-AIR SHAFT L/S BL. MA.
  • 11
    6900802310033 FRESH-AIR SHAFT R/S BLACK MATT
    FRESH-AIR SHAFT R/S BLACK MATT
  • 12
    6900802120033 UP. FRESH-AIR SHAFT BLACK MA.
    UP. FRESH-AIR SHAFT BLACK MA.
  • 13
    6930811000033 FRONTFENDER BLACK
    FRONTFENDER BLACK
  • 14
    6900804300028A SIDE COVER L/S WH. BRILL. RC8
    SIDE COVER L/S WH. BRILL. RC8
  • 15
    6900804400028A SIDE COVER R/S WH. BRILL. RC8
    SIDE COVER R/S WH. BRILL. RC8
  • 16
    6900804100028B REAR FAIRING L/S WE.GL. RC8
    REAR FAIRING L/S WE.GL. RC8
  • 17
    6900804200028B REAR FAIRING R/S WE.GL. RC8
    REAR FAIRING R/S WE.GL. RC8
  • 18
    69008039000 REAR LIGHT ADAPTER R/S
    REAR LIGHT ADAPTER R/S
  • 19
    69008038000 REAR LIGHT ADAPTER L/S
    REAR LIGHT ADAPTER L/S
  • 20
    6900803100033 UPPER REAR END PANEL
    UPPER REAR END PANEL
  • 21
    69008016100 NUMBER PLATE LO. PART USA
    NUMBER PLATE LO. PART USA
  • 22
    69008015100 LICENSE PLATE BRACKET UP. PART
    LICENSE PLATE BRACKET UP. PART
  • 23
    69004060050 BUSHING CHAIN GUARD
    BUSHING CHAIN GUARD
  • 24
    69014017000 SPECIAL SCREW M6X18 ISA30
    SPECIAL SCREW M6X18 ISA30
  • 25
    69008021080 RANGE CHANGE METAL NUT M5
    RANGE CHANGE METAL NUT M5
  • 26
    69008021060 SPECIAL SCREW M5X17
    SPECIAL SCREW M5X17
  • 27
    60008008050 BLIND PLUG-IN NUT M5 WN 16A
    BLIND PLUG-IN NUT M5 WN 16A
  • 28
    0025050166 HH COLLAR SCREW M5X16 TX30
    HH COLLAR SCREW M5X16 TX30
  • 29
    76503075000 SPREAD RIVET CPL. 6,2MM
    SPREAD RIVET CPL. 6,2MM
  • 30
    0024060136 HH COLLAR SCREW M6X13 TX30
    HH COLLAR SCREW M6X13 TX30
  • 31
    58605083010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 32
    75008023000 WASHER REAR-UT D=14MM
    WASHER REAR-UT D=14MM
  • 33
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 34
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 35
    6930300405001 WASHER F. MONT.REARPART
    WASHER F. MONT.REARPART
  • 36
    0081050161 EJOT PT SCREW K50X16 1451
    EJOT PT SCREW K50X16 1451
  • 37
    69014078000 RUBBER SLEEVE 10X14X20
    RUBBER SLEEVE 10X14X20
  • 38
    6900704705028 PASSENGERґS SEAT PLATE WHITE
    PASSENGERґS SEAT PLATE WHITE
  • 39
    0081040161 SCREW FOR PLASTIC K40X16 T20
    SCREW FOR PLASTIC K40X16 T20
  • 40
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 41
    69007028000 COLLAR BUSH. 6,2X10X21X14MM
    COLLAR BUSH. 6,2X10X21X14MM
  • 42
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 43
    69008020000 BUSHING LICENSE PLATE BRACKET
    BUSHING LICENSE PLATE BRACKET
  • 44
    0025050206 HH COLLAR SCREW M5X20 TX30
    HH COLLAR SCREW M5X20 TX30
  • 46
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 50
    60012081200 LICENCE FITTING
    LICENCE FITTING
  • 51
    0024060156 HH COLLAR SCREW M6X15 TX30
    HH COLLAR SCREW M6X15 TX30
  • 52
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 53
    00985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 54
    00966050163 OVAL HEAD SCREW DIN0966-M 5X16
    OVAL HEAD SCREW DIN0966-M 5X16
  • 55
    40006006000 WASHER 6MM
    WASHER 6MM
  • 56
    0125050003 WASHER DIN0125-A 5,3
    WASHER DIN0125-A 5,3
  • 57
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 58
    58412080000 REFLECTOR RED
    REFLECTOR RED
  • 59
    58412080050 BRACKET FOR REFLECTOR
    BRACKET FOR REFLECTOR
  • 60
    60114010070 EDGE PROTECTOR 14X9,5X66 MM
    EDGE PROTECTOR 14X9,5X66 MM
  • 61
    69003003055 SPECIAL SCREW M5X10 ISA15
    SPECIAL SCREW M5X10 ISA15
  • 62
    69003003050 CLIPS SIDECOVER
    CLIPS SIDECOVER
  • 64
    60012080000 SIDE REFLECTOR YELLOW
    SIDE REFLECTOR YELLOW
  • 65
    69012080050 BRACKET F. SIDE REFLECTOR L/S
    BRACKET F. SIDE REFLECTOR L/S
  • 66
    69012080060 BRACKET F. SIDE REFLECTOR R/S
    BRACKET F. SIDE REFLECTOR R/S
  • 67
    62512081000 BRACKET SIDE REFLECTOR
    BRACKET SIDE REFLECTOR
  • 68
    16512180100 SIDE REFLECTOR RED REAR
    SIDE REFLECTOR RED REAR
  • 70
    0081060121 EJOT PT SCREW K60X12 1451
    EJOT PT SCREW K60X12 1451
  • 71
    69008003050 WASHER PA 8,3X12X5
    WASHER PA 8,3X12X5
  • 72
    0021040003 WASHER DIN9021-A 4,3
    WASHER DIN9021-A 4,3
