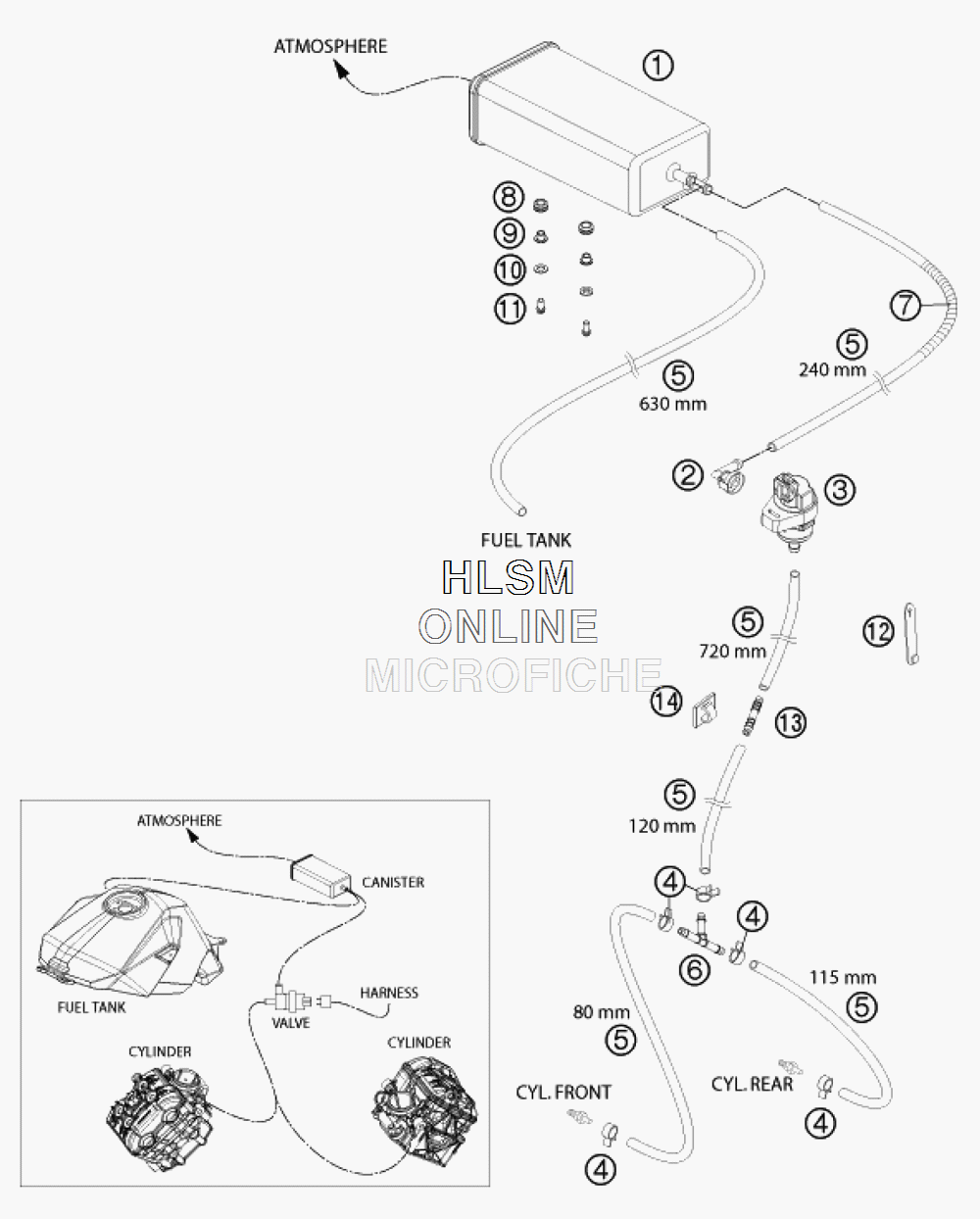

EVAPORATIVE CANISTER для Ktm 1190 RC8R - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    75015001100 EVAPORATIVE CANISTER
    EVAPORATIVE CANISTER
  • 2
    61115016000 FITTING PIECE NQV2 NW7 90°
    FITTING PIECE NQV2 NW7 90°
  • 3
    61115015000 VALVE FOR CARBON CANISTER
    VALVE FOR CARBON CANISTER
  • 4
    58007017000 YDNAC CLAMP 10101 (10,4MM)
    YDNAC CLAMP 10101 (10,4MM)
  • 5
    78015019000 HOSE EPA D=6/10 L=2000MM
    HOSE EPA D=6/10 L=2000MM
  • 6
    60015022000 T-CONNECTOR TS-6
    T-CONNECTOR TS-6
  • 7
    63015001040 PRESSURE SPRING D1X12X60
    PRESSURE SPRING D1X12X60
  • 8
    60006001022 RUB.SLEEVE FLOAT CHAMB.VENTING
    RUB.SLEEVE FLOAT CHAMB.VENTING
  • 9
    69014015000 BUSHING HEAD LIGHT
    BUSHING HEAD LIGHT
  • 10
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 11
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 12
    60011093075 RUBBER CABLE TIE 75MM
    RUBBER CABLE TIE 75MM
  • 13
    69015019010 HOSE CONNECTION STRAIGHT
    HOSE CONNECTION STRAIGHT
  • 14
    69015019020 SOCKET
    SOCKET
