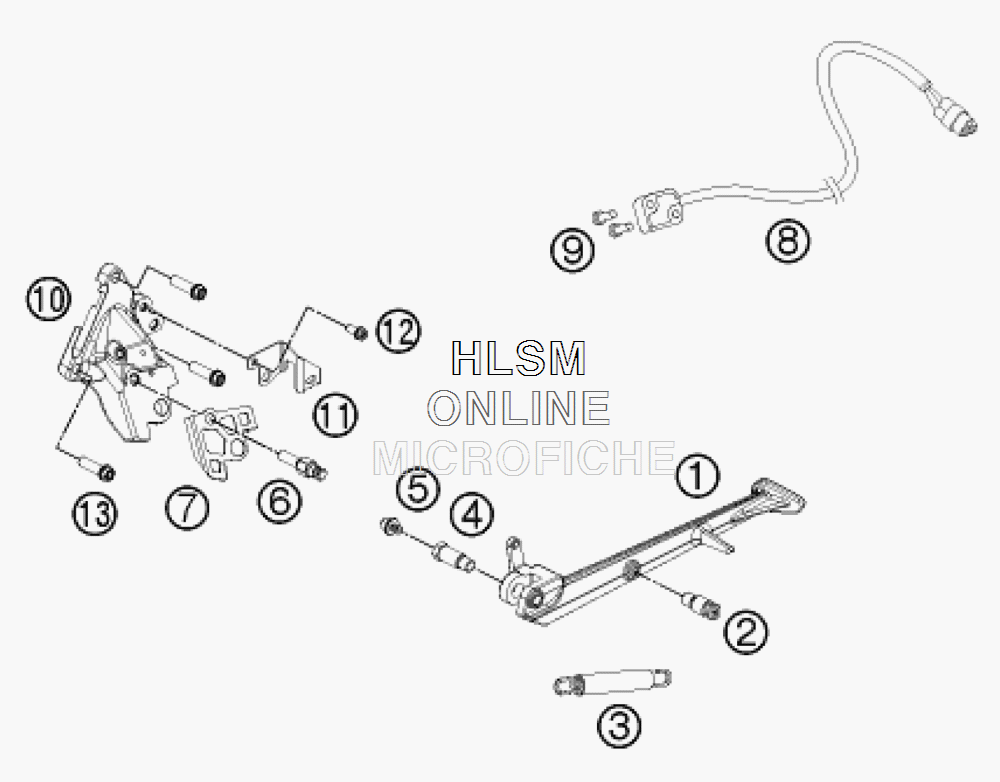

SIDE / CENTER STAND для Ktm 1190 RC8R - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    6900302313333S SIDE STAND CPL. BLACK
    SIDE STAND CPL. BLACK
  • 2
    75603023011 BOLT F. SIDE STAND SPRING
    BOLT F. SIDE STAND SPRING
  • 3
    61003024000 SPRING L=116 MM
    SPRING L=116 MM
  • 4
    69003027050 SCREW F. SIDE STAND M10
    SCREW F. SIDE STAND M10
  • 5
    69003027060 DISTANCE RUBBER D=14X10,5
    DISTANCE RUBBER D=14X10,5
  • 6
    61003028001 SCREW SIDE STAND SPRING 05
    SCREW SIDE STAND SPRING 05
  • 7
    69003027000 CONSOLE INTERMEDIATE METAL
    CONSOLE INTERMEDIATE METAL
  • 8
    61011045000 SIDE STAND SENSOR
    SIDE STAND SENSOR
  • 9
    0084040123 CYL.HEAD SCREW DIN84A M4X12
    CYL.HEAD SCREW DIN84A M4X12
  • 10
    6900302610033S SIDE STAND CONSOLE
    SIDE STAND CONSOLE
  • 11
    69003029100 KEEL RETAINING BRACKET
    KEEL RETAINING BRACKET
  • 12
    0025060126 HH COLLAR SCREW M6X12 TX30
    HH COLLAR SCREW M6X12 TX30
  • 13
    0025080256S HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
