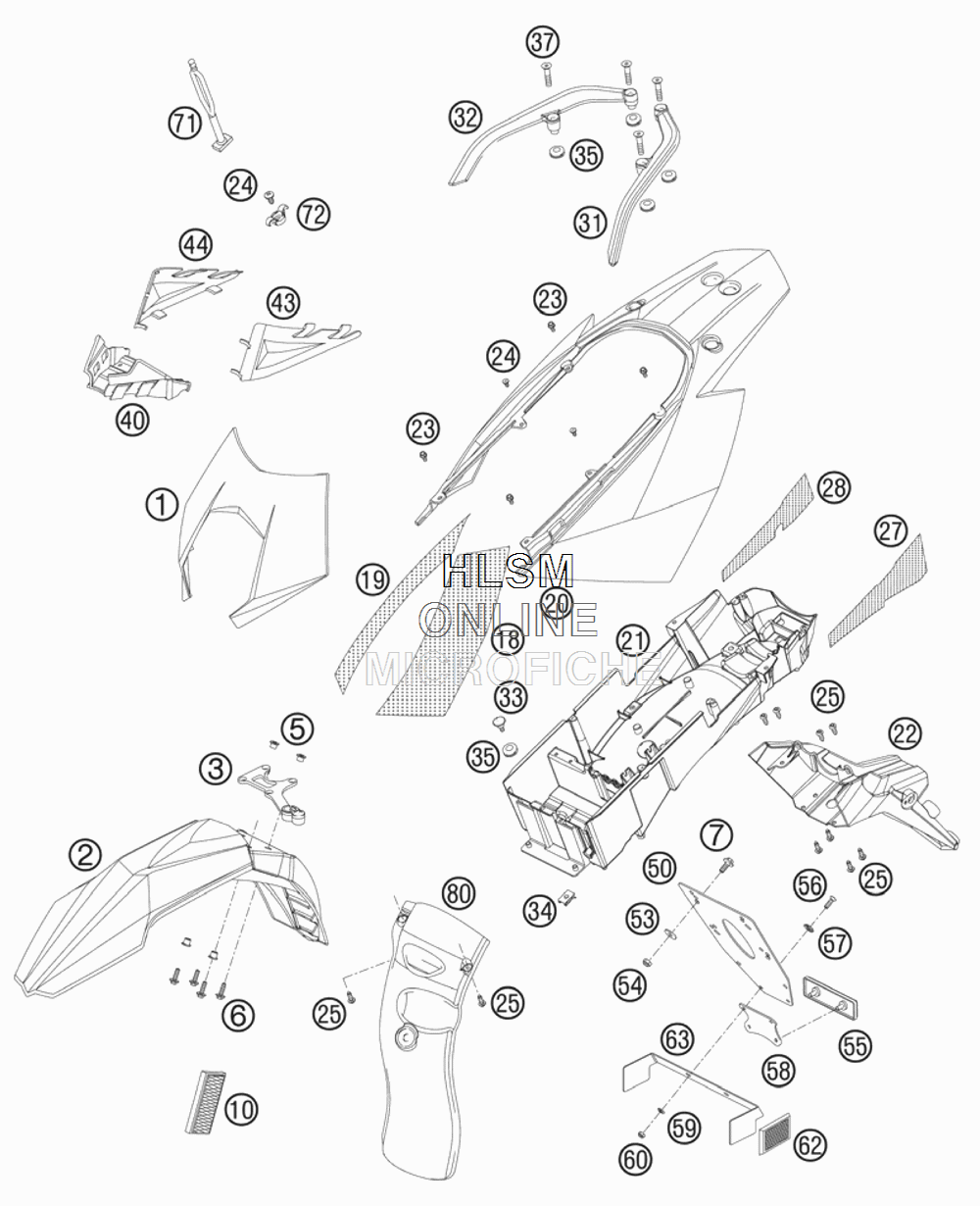

MASK FENDERS для Ktm 950 SUPER ENDURO - 2008 года выпуска
-
№АртикулНазвание
-
15860800100030 HEAD LIGHT MASK BLACKHEAD LIGHT MASK BLACK
-
26300801000004 FENDER FRONT ORANGEFENDER FRONT ORANGE
-
360008019000 BRAKE HOSE GUIDE LOWERBRAKE HOSE GUIDE LOWER
-
558408009050 SPACER BUSHING FRONT FENDERSPACER BUSHING FRONT FENDER
-
60024060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
70024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
1060012080000 SIDE REFLECTOR YELLOWSIDE REFLECTOR YELLOW
-
1862508018150 THERM. PROT.FOIL L/S ABOVETHERM. PROT.FOIL L/S ABOVE
-
1962508018160 THERM.PROT.FOIL R/S ABOVETHERM.PROT.FOIL R/S ABOVE
-
206250801800030 REAR END TOP PART BLACKREAR END TOP PART BLACK
-
2162508019500 REAR END LOWER PART USAREAR END LOWER PART USA
-
2263008015000 NUMB.PLATE CARRIERNUMB.PLATE CARRIER
-
230025050126 HH COLLAR SCREW M5X12 TX30HH COLLAR SCREW M5X12 TX30
-
240081050121 SCREW FOR PLASTIC K50X12 T20SCREW FOR PLASTIC K50X12 T20
-
250017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
2762508019250 THERMAL PROTECTON FOIL L/STHERMAL PROTECTON FOIL L/S
-
2862508019460 THERM. PROT. FOIL R/S USATHERM. PROT. FOIL R/S USA
-
316301200800001S HAND GRIP L/SHAND GRIP L/S
-
326301200900001S HAND GRIP R/SHAND GRIP R/S
-
3360035001000 SCREW RADIATOR BRACKET M6SCREW RADIATOR BRACKET M6
-
3454603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
3541001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
370991080403 FLAT HEAD SCREW DIN7991-M 8X40FLAT HEAD SCREW DIN7991-M 8X40
-
4060003087000 SPLASH PROTECTOR FRAMESPLASH PROTECTOR FRAME
-
4362503083000 COVER FRAME L/S REARCOVER FRAME L/S REAR
-
4462503084000 COVER FRAME R/S REARCOVER FRAME R/S REAR
-
5060012081200 LICENCE FITTINGLICENCE FITTING
-
530021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
540985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
5558412080000 REFLECTOR REDREFLECTOR RED
-
560966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
5740006006000 WASHER 6MMWASHER 6MM
-
5858412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
590125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
600985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
6216512180100 SIDE REFLECTOR RED REARSIDE REFLECTOR RED REAR
-
6362512081000 BRACKET SIDE REFLECTORBRACKET SIDE REFLECTOR
-
7150303018000 RUBBER L=145MMRUBBER L=145MM
-
7262508021000 SUPPORT TOOL SETSUPPORT TOOL SET
-
8063006010000 SPLASH PROTECT.SPLASH PROTECT.
