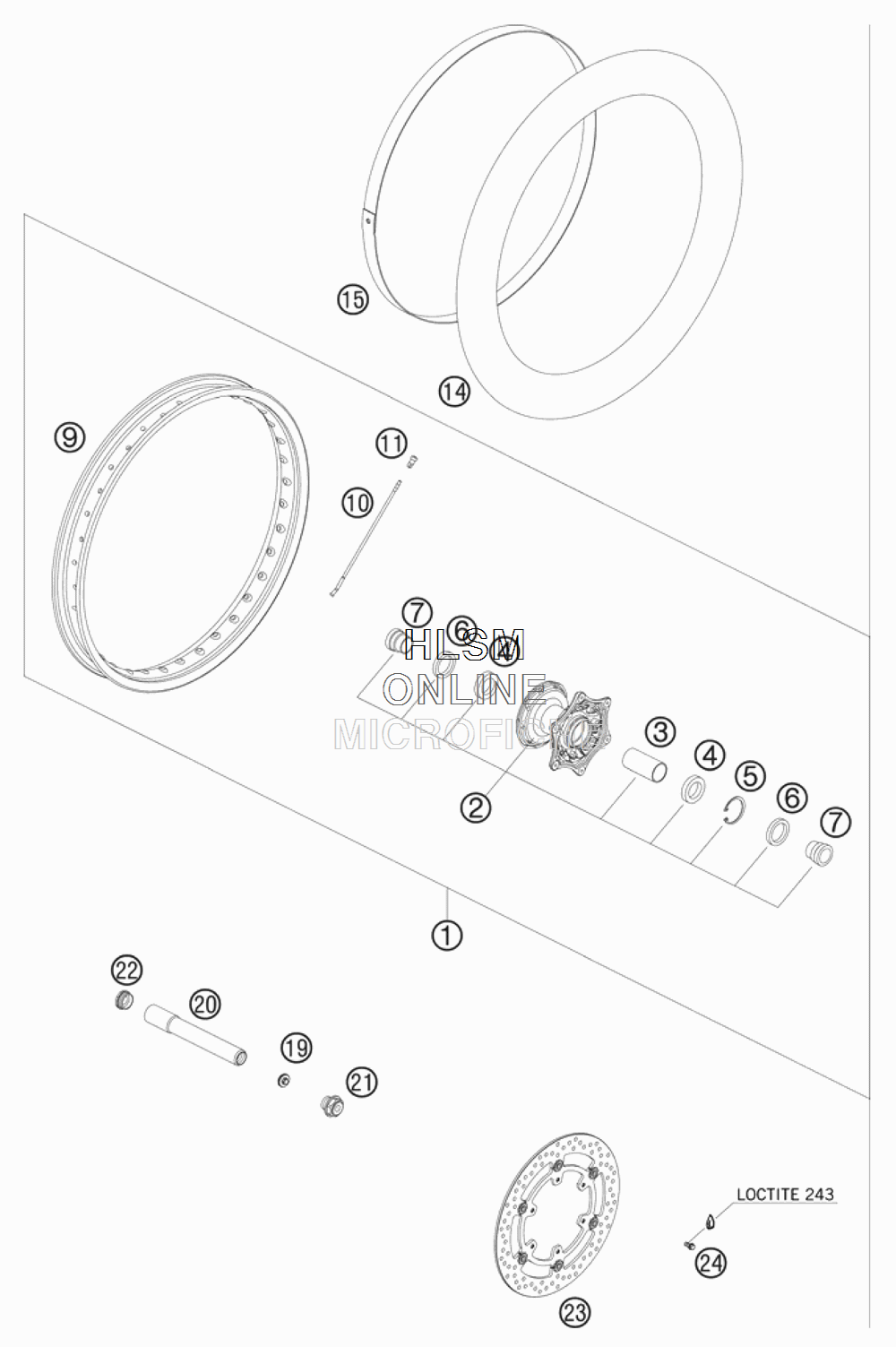

FRONT WHEEL для Ktm 950 SUPER ENDURO - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    6300900104430 FRONT WHEEL CPL. 1,85X21" BLACK
    FRONT WHEEL CPL. 1,85X21" BLACK
  • 2
    63009010044 FRONT HUB CPL.
    FRONT HUB CPL.
  • 3
    60009014000 BEAR. SPACERTUBE FRONT
    BEAR. SPACERTUBE FRONT
  • 4
    0625069068 GR.BALL BEAR.6906 DDU2CG23S6NM
    GR.BALL BEAR.6906 DDU2CG23S6NM
  • 5
    0472047175 CIRCLIP DIN0472-47X1,75
    CIRCLIP DIN0472-47X1,75
  • 6
    0760354771 SHAFT SEAL RING 35X47X7 TC
    SHAFT SEAL RING 35X47X7 TC
  • 7
    63009012000 SPACER BUSH. FRONT WHEEL
    SPACER BUSH. FRONT WHEEL
  • 9
    6300907000030 FRONT RIM 1,85X21"DIRT STAR
    FRONT RIM 1,85X21"DIRT STAR
  • 10
    60009071000 SPOKE M5X230,5 13,5 DEG
    SPOKE M5X230,5 13,5 DEG
  • 11
    58309072000 SPOKE NIPPLE M5-TA (8X21MM)
    SPOKE NIPPLE M5-TA (8X21MM)
  • 14
    50309075000 HOSE 21"
    HOSE 21"
  • 15
    58409073100 RIM BAND FRONT 2MM
    RIM BAND FRONT 2MM
  • 19
    54809081070 AUXILIARY SCREW FRONT
    AUXILIARY SCREW FRONT
  • 20
    77309081000 WHEEL SPIN.FR. D=26 M24X1,5
    WHEEL SPIN.FR. D=26 M24X1,5
  • 21
    54809082000 SPINDLE SCREW M24X1,5 WS=27
    SPINDLE SCREW M24X1,5 WS=27
  • 22
    54809081050 PLUG BUSHING WS=27
    PLUG BUSHING WS=27
  • 23
    60109060000 BRAKE DISK FRONT 300MM
    BRAKE DISK FRONT 300MM
  • 24
    59009062013 SPECIAL SCREW CREW M6X13 WS=8 10.9
    SPECIAL SCREW CREW M6X13 WS=8 10.9
