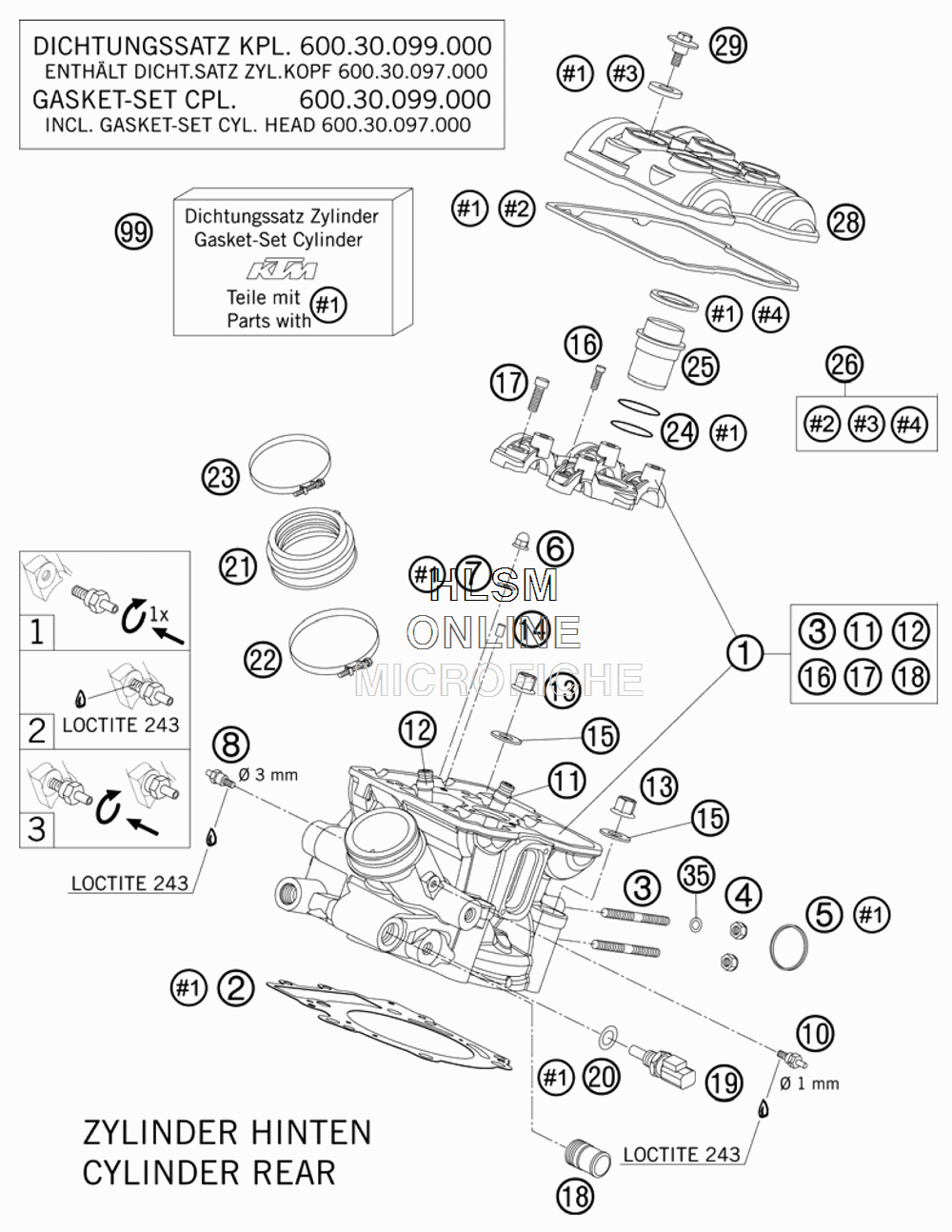

CYLINDER HEAD REAR для Ktm 950 SUPER ENDURO - 2008 года выпуска`
-
№АртикулНазвание
-
162536120044 CYLINDER HEAD CPL. REARCYLINDER HEAD CPL. REAR
-
260030036000 CYLINDER HEAD GASKET 0,5 101MMCYLINDER HEAD GASKET 0,5 101MM
-
30835080256 STUD DIN0835-M 8X25 10.9STUD DIN0835-M 8X25 10.9
-
451010086100 SELF LOCKING NUT M 8 CUSELF LOCKING NUT M 8 CU
-
560005005000 GASKETGASKET
-
60587060000 CAP NUT M6 DIN1587CAP NUT M6 DIN1587
-
70125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
858336020190 VACUUM CONECTION M6/3MMVACUUM CONECTION M6/3MM
-
1060036023000 VACUUM CONECT. M6/1MM M-GROOVEVACUUM CONECT. M6/1MM M-GROOVE
-
1160036026000 VALVE GUIDE EXHAUSTVALVE GUIDE EXHAUST
-
1260036025000 VALVE GUIDE INTAKEVALVE GUIDE INTAKE
-
1360036078200 COLLAR NUT M 10 WS=13COLLAR NUT M 10 WS=13
-
140402050980 NEEDLE ROLLER DIN5402 5X9,8NEEDLE ROLLER DIN5402 5X9,8
-
1560036078050 SHIM 10,2X19X1,5MMSHIM 10,2X19X1,5MM
-
160912060255 AH SCREW DIN0912-M 6X25 10.9AH SCREW DIN0912-M 6X25 10.9
-
170984080305 AH SCREW DIN7984-M 8X30 10.9AH SCREW DIN7984-M 8X30 10.9
-
1858030010200 SCREW IN NOZZLE M20X1,5SCREW IN NOZZLE M20X1,5
-
1960011252000 TEMPERAT.-SENSOR WATER LC8TEMPERAT.-SENSOR WATER LC8
-
200770100020 O-RING 10,00X2,00 SILCONEO-RING 10,00X2,00 SILCONE
-
2160036044000 INTAKE BOOTINTAKE BOOT
-
2260036047100 HOSE CLAMP GEMI 62 MMHOSE CLAMP GEMI 62 MM
-
2359030061100 HOSE CLAMP GEMI 56MMHOSE CLAMP GEMI 56MM
-
240770298178 O-RING 29,87X1,78 VITONO-RING 29,87X1,78 VITON
-
2560036075000 INSERT SPARK-PLUG SHAFT LC8INSERT SPARK-PLUG SHAFT LC8
-
2660036099000 VALVE COVER GASKET SET FR+RRVALVE COVER GASKET SET FR+RR
-
2860036152000 VALVE COVER REARVALVE COVER REAR
-
2960036052020 COLLAR SCREW M 6 WS=10COLLAR SCREW M 6 WS=10
-
3561005009000 SPACER BUSH. 8,5X15X7,5SPACER BUSH. 8,5X15X7,5
-
9960030097000 GASKET SET CYL. HEAD KPL. CYLINDER FRONT + REARGASKET SET CYL. HEAD KPL. CYLINDER FRONT + REAR
