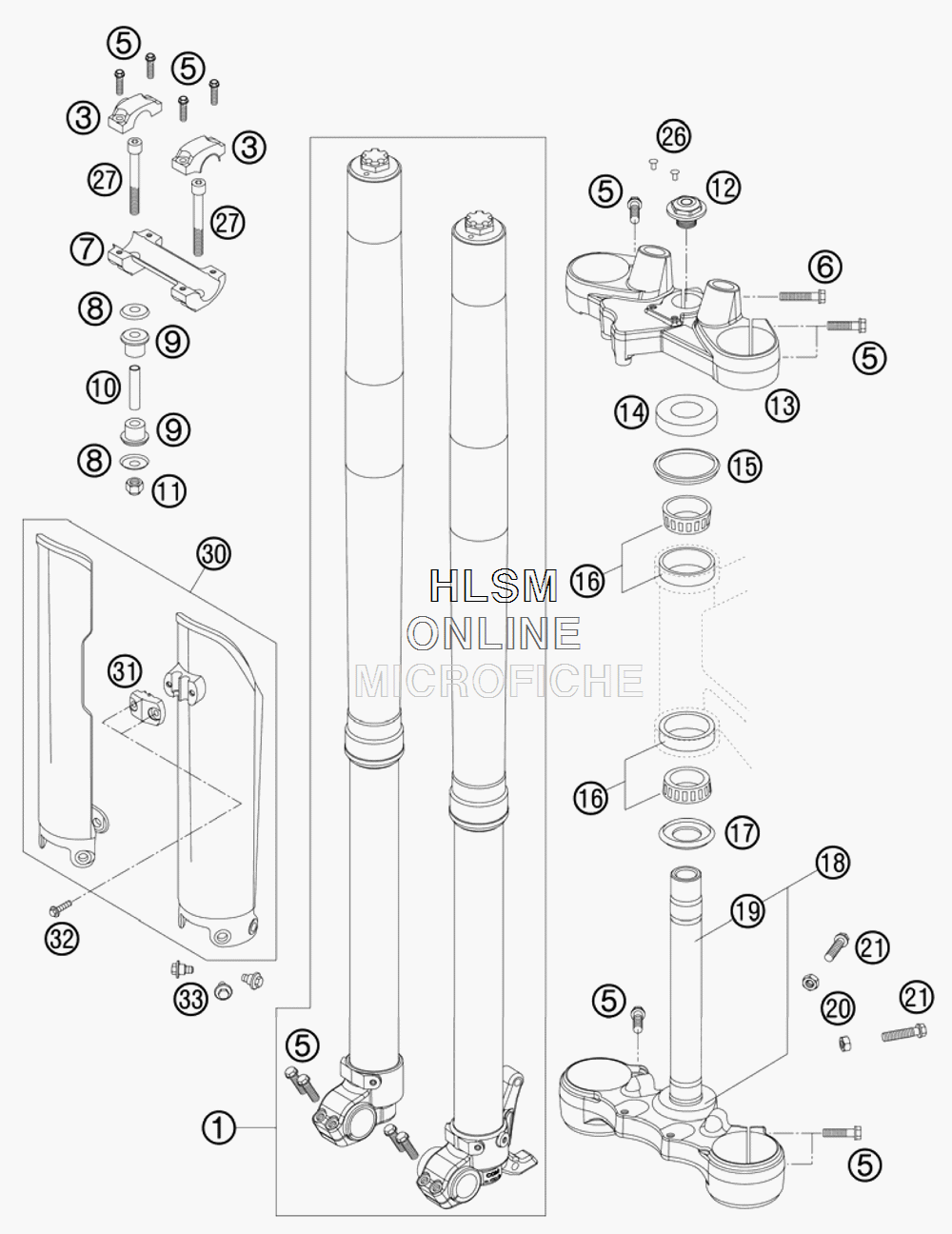

FRONT FORK TRIPLE CLAMP для Ktm 950 SUPER ENDURO - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    14187D32 FORK WP 950 SUPERENDURO
    FORK WP 950 SUPERENDURO
  • 3
    5900103830001S HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 5
    0025080306 HH COLLAR SCREW M8X30 TX40
    HH COLLAR SCREW M8X30 TX40
  • 6
    0025080356 HH COLLAR SCREW M8X35 TX40
    HH COLLAR SCREW M8X35 TX40
  • 7
    5900103920001S HANDLEBAR SUPPORT 28MM
    HANDLEBAR SUPPORT 28MM
  • 8
    56401042000 WASHER 10,5X32X2
    WASHER 10,5X32X2
  • 9
    56401040000 RUBBER BUSHING
    RUBBER BUSHING
  • 10
    56401041100 SPACER TUBE 10,2X12X44
    SPACER TUBE 10,2X12X44
  • 11
    0982100003 SELF LOCK.NUT DIN0982-M10 HIGH
    SELF LOCK.NUT DIN0982-M10 HIGH
  • 12
    54801036200 STEER.HEAD SCREW M20X1,5 SW=27
    STEER.HEAD SCREW M20X1,5 SW=27
  • 13
    6000103402001S TOP TRIPLE CLAMP X=20MM D=54MM
    TOP TRIPLE CLAMP X=20MM D=54MM
  • 14
    61001086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 15
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 16
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 17
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 18
    6000103202001S BOTTOM TRIPLE CLAMP CPL D=60MM
    BOTTOM TRIPLE CLAMP CPL D=60MM
  • 19
    60001033000 FORK TUBE LC8 ADV
    FORK TUBE LC8 ADV
  • 20
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 21
    0933080253 HH SCREW DIN0933-M 8X25
    HH SCREW DIN0933-M 8X25
  • 26
    60103088000 PLUG ZK 8/5
    PLUG ZK 8/5
  • 27
    0984100703 AH SCREW DIN6912-M10X70
    AH SCREW DIN6912-M10X70
  • 30
    5900109400030 FORK PROTECT. L/S+R/S BLACK
    FORK PROTECT. L/S+R/S BLACK
  • 31
    58201085000 CLAMP F.SPEED CABLE D=8MM
    CLAMP F.SPEED CABLE D=8MM
  • 32
    0017060203 EJOT PT SCREW K60X20 WS=6
    EJOT PT SCREW K60X20 WS=6
  • 33
    59001092050 SPECIAL SCREW CREW M6X12 ,5 WS=8
    SPECIAL SCREW CREW M6X12 ,5 WS=8
