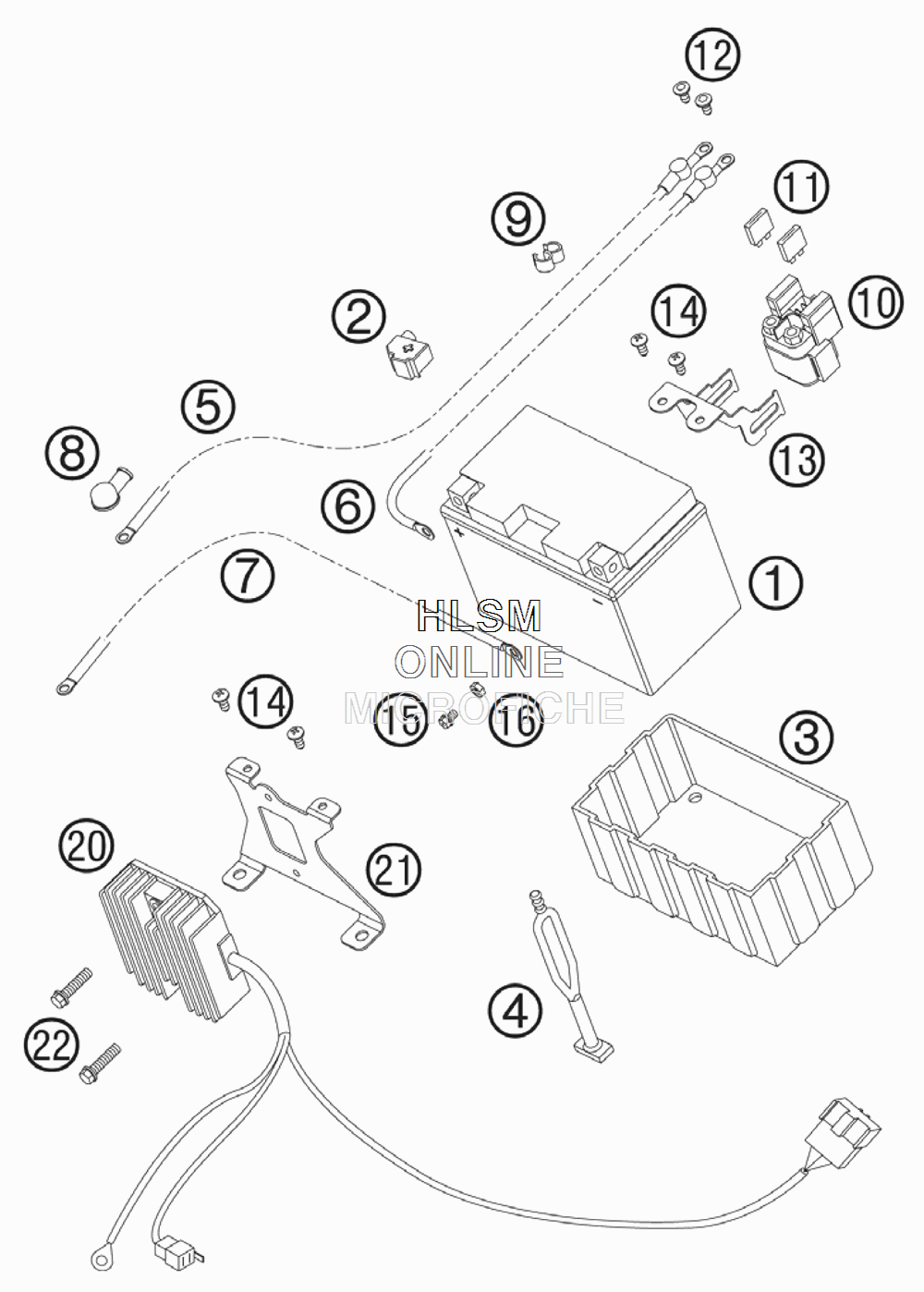

BATTERY для Ktm 950 SUPER ENDURO - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    60011053000 BATTERY 12V/11AH
    BATTERY 12V/11AH
  • 2
    62511059160 COVER POSITIVE POLE
    COVER POSITIVE POLE
  • 3
    58411053050 BATTERY COVER
    BATTERY COVER
  • 4
    50303018000 RUBBER L=145MM
    RUBBER L=145MM
  • 5
    62511059000 STARTER CABLE L=650MM
    STARTER CABLE L=650MM
  • 6
    62511059050 BATTERY CABLE L=125MM
    BATTERY CABLE L=125MM
  • 7
    62511097000 GROUND CABLE L=650MM
    GROUND CABLE L=650MM
  • 8
    60040009000 RUBBER CAP STARTER PORT
    RUBBER CAP STARTER PORT
  • 9
    55011022100 CLAMP D=6/8MM, BLACK
    CLAMP D=6/8MM, BLACK
  • 10
    58211058000 STARTER RELAY 12V
    STARTER RELAY 12V
  • 11
    58011109130 FUSE 30 A
    FUSE 30 A
  • 12
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
  • 13
    62511058050 BRACKET START RELAY
    BRACKET START RELAY
  • 14*
    0081050121 SCREW FOR PLASTIC K50X12 T20
    SCREW FOR PLASTIC K50X12 T20
  • 15*
    0024060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 16
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 20*
    62511034100 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 21
    62511037000 BRACKET VOLTAGE REGULATOR
    BRACKET VOLTAGE REGULATOR
  • 22
    0014060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
