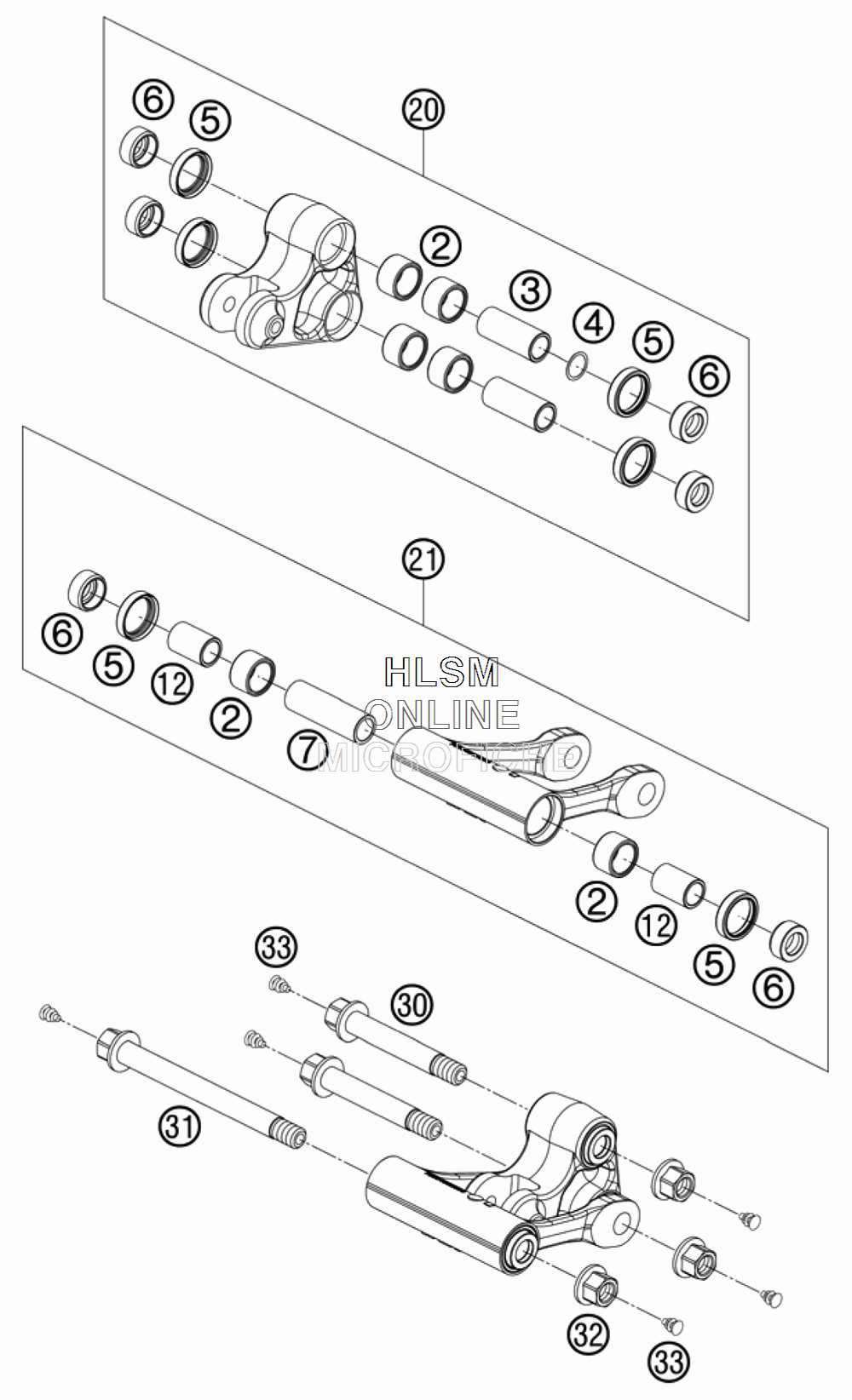

PRO LEVER LINKING для Ktm 690 SUPER MOTO R - 2008 года выпуска`
-
№АртикулНазвание
-
254603097000 NEEDLE BUSH HK 2016NEEDLE BUSH HK 2016
-
354603081000 BUSHING SLEEVE 15 X 20 X 48BUSHING SLEEVE 15 X 20 X 48
-
454603090020 STEEL WASHER 15,2X19X0,2STEEL WASHER 15,2X19X0,2
-
50760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
658303090000 SPAC.F.SHAFT SEALRING 15X25X11SPAC.F.SHAFT SEALRING 15X25X11
-
775004084000 SPACER SLEEVE 15X20X63SPACER SLEEVE 15X20X63
-
1250203081800 BEARING BUSHINGBEARING BUSHING
-
207500408004401 SETTING LEVER CPL.SETTING LEVER CPL.
-
217500408304401 INTERMEDIATE LEVER CPL.INTERMEDIATE LEVER CPL.
-
3054603182044 BOLT CPL.BOLT CPL.
-
3175004085044 BOLT KPLBOLT KPL
-
3254603015000 SELF LOCKING NUT M14X1,5 WS=19SELF LOCKING NUT M14X1,5 WS=19
-
3354403135000 PLASTIC CAP SFL10PLASTIC CAP SFL10
