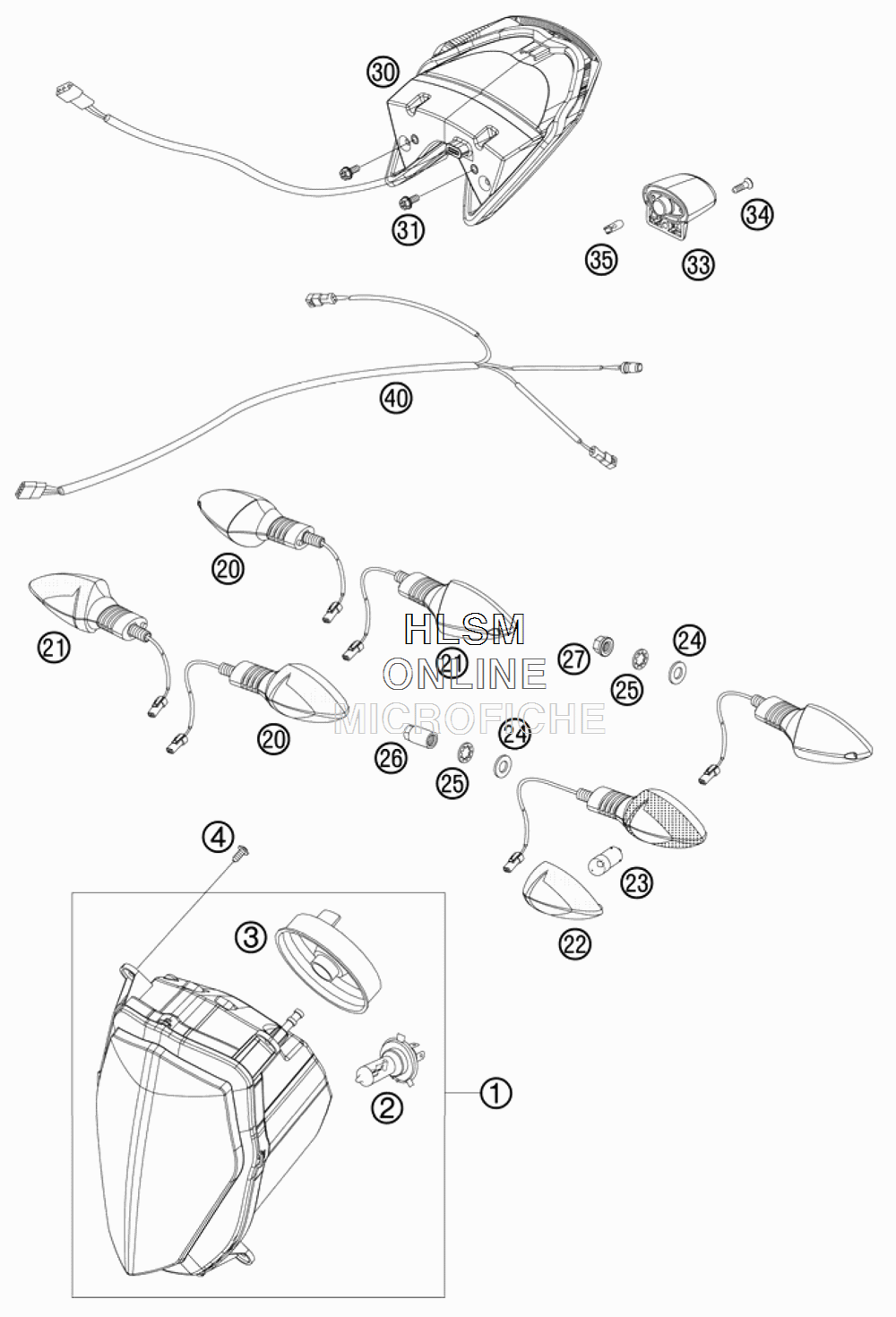

LIGHTING SYSTEM для Ktm 690 SUPER MOTO R - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    75014001000 HEAD LIGHT LC4
    HEAD LIGHT LC4
  • 2
    57111038000 BULB H4 12V 60/55W (P43T)
    BULB H4 12V 60/55W (P43T)
  • 3
    58614001050 RUBBER CAP FOR HEAD LIGHT
    RUBBER CAP FOR HEAD LIGHT
  • 4
    0016050121 SCREW FOR PLASTIC 50X12
    SCREW FOR PLASTIC 50X12
  • 20
    60114025000 FLASHER CPL.FRONT L/S REAR R/S
    FLASHER CPL.FRONT L/S REAR R/S
  • 21
    60114026000 FLASHER CPL.FRONT R/S REAR L/S
    FLASHER CPL.FRONT R/S REAR L/S
  • 22
    60114028000 FLASHER LENS L/S R/S TRANSP.
    FLASHER LENS L/S R/S TRANSP.
  • 23
    60114027000 BULB 12V ORANGE
    BULB 12V ORANGE
  • 24
    0433100003 WASHER 18X10,5X1,6
    WASHER 18X10,5X1,6
  • 25
    0797100003 LOCK WASHER DIN6797-J10,5 ZI
    LOCK WASHER DIN6797-J10,5 ZI
  • 26
    75014030000 FLASHER NUT M10X1,25 WS12
    FLASHER NUT M10X1,25 WS12
  • 27
    58414030000 HH COLLAR NUT M10X1,25
    HH COLLAR NUT M10X1,25
  • 30
    75014140000 REAR LIGHT LED USA
    REAR LIGHT LED USA
  • 31
    0025050126 HH COLLAR SCREW M5X12
    HH COLLAR SCREW M5X12
  • 33
    75014047000 LICENSE PLATE ILLUMINATION
    LICENSE PLATE ILLUMINATION
  • 34
    0081050181 SCREW FOR PLASTIC K50X18 T20
    SCREW FOR PLASTIC K50X18 T20
  • 35
    49011435100 BULB 12V 5W (W2,1X9,5D) PHIL.
    BULB 12V 5W (W2,1X9,5D) PHIL.
  • 40
    75011076000 WIRING HARNESS REAR
    WIRING HARNESS REAR
