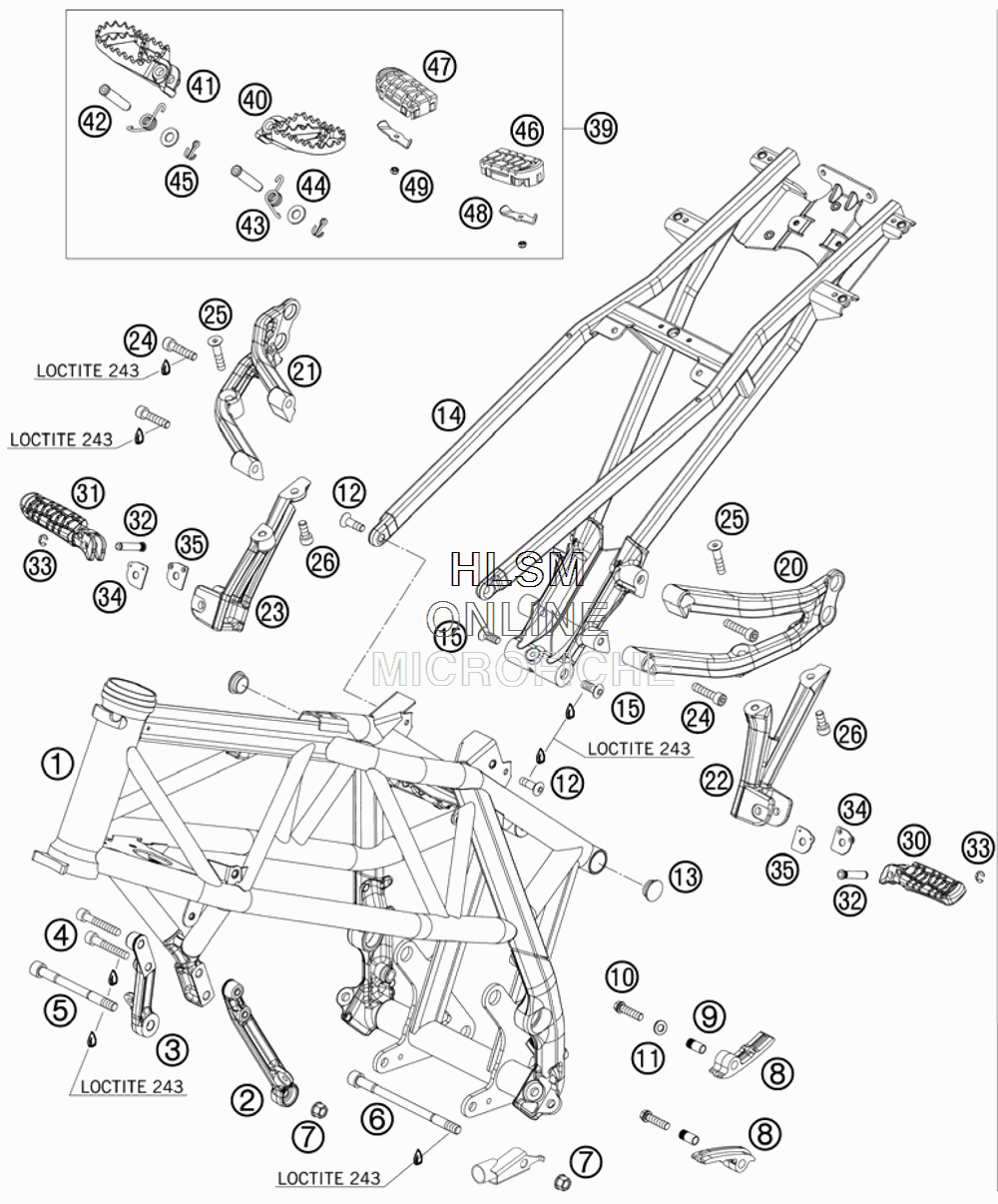

FRAME для Ktm 690 SUPER MOTO R - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7500300110004 FRAME "EE08" ORANGE
    FRAME "EE08" ORANGE
  • 2
    7500300104901 CONNECTION BRACKET ENG. L/S
    CONNECTION BRACKET ENG. L/S
  • 3
    7500310104901 CONNECTION BRACKET ENG. R/S
    CONNECTION BRACKET ENG. R/S
  • 4
    0912080503 AH SCREW DIN912 M8X50
    AH SCREW DIN912 M8X50
  • 5
    75003015000 SPECIAL SCREW M10X115 ISK8
    SPECIAL SCREW M10X115 ISK8
  • 6
    75003014000 SCREW
    SCREW
  • 7
    54630044000 COLLAR NUT M10
    COLLAR NUT M10
  • 8
    54804067000 CHAIN SLIDING PIECE
    CHAIN SLIDING PIECE
  • 9
    51103053051 BUSHING 8,2X10X20
    BUSHING 8,2X10X20
  • 10
    0025080306 HH COLLAR SCREW M8X30
    HH COLLAR SCREW M8X30
  • 11
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 12
    0019080206S FLAT HEAD SCREW M. ISA45 M8X20
    FLAT HEAD SCREW M. ISA45 M8X20
  • 13
    61003088000 PLUG SFL28
    PLUG SFL28
  • 14
    7500300200033 SUB FRAME BLACK MATT
    SUB FRAME BLACK MATT
  • 15
    60003004027 FL.HEAD SCREW M10X1,25 L=27
    FL.HEAD SCREW M10X1,25 L=27
  • 20
    7500304800033S FOOTREST BRACKET REAR L/S
    FOOTREST BRACKET REAR L/S
  • 21
    7500304900033S FOOTREST BRACKET REAR R/S
    FOOTREST BRACKET REAR R/S
  • 22
    7500305800033S FOOTREST CARRIER L/S
    FOOTREST CARRIER L/S
  • 23
    7500305900033S FOOTREST CARRIER R/S
    FOOTREST CARRIER R/S
  • 24
    0912080353 AH SCREW DIN0912-M 8X35
    AH SCREW DIN0912-M 8X35
  • 25
    0991080403 FLAT HEAD SCREW DIN7991-M 8X40
    FLAT HEAD SCREW DIN7991-M 8X40
  • 26
    0912080203 AH SCREW DIN912 M8X20
    AH SCREW DIN912 M8X20
  • 30
    60003050000 FOOTREST CPL. L/S REAR
    FOOTREST CPL. L/S REAR
  • 31
    60003051000 FOOTREST CPL. R/S REAR
    FOOTREST CPL. R/S REAR
  • 32
    60003044000 BOLT FOR FOOTREST REAR
    BOLT FOR FOOTREST REAR
  • 33
    0799060003 TAB WASHER DIN6799-RS 6,0
    TAB WASHER DIN6799-RS 6,0
  • 34
    60003052000 ENGAGE PANEL FOOTREST R/S
    ENGAGE PANEL FOOTREST R/S
  • 35
    60003152000 ENGAGE PANEL FOOTREST L/S
    ENGAGE PANEL FOOTREST L/S
  • 39
    60003040033 FOOTREST L/S+R/S CPL.
    FOOTREST L/S+R/S CPL.
  • 40
    59003040250 FOOT PED L/S SILVER
    FOOT PED L/S SILVER
  • 41
    59003041250 FOOT PED R/S SILVER
    FOOT PED R/S SILVER
  • 42
    54803044000 BOLT FOR FOOT PED
    BOLT FOR FOOT PED
  • 43
    54603041000 FOOTREST SPRING L/S & R/S
    FOOTREST SPRING L/S & R/S
  • 44
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 45
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 46
    60003040010 FOOTREST RUBBER FRONT L/S
    FOOTREST RUBBER FRONT L/S
  • 47
    60003041010 FOOTREST RUBBER FRONT R/S
    FOOTREST RUBBER FRONT R/S
  • 48
    60003044010 CLOSING PANEL FRONT L/S R/S
    CLOSING PANEL FRONT L/S R/S
  • 49
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
