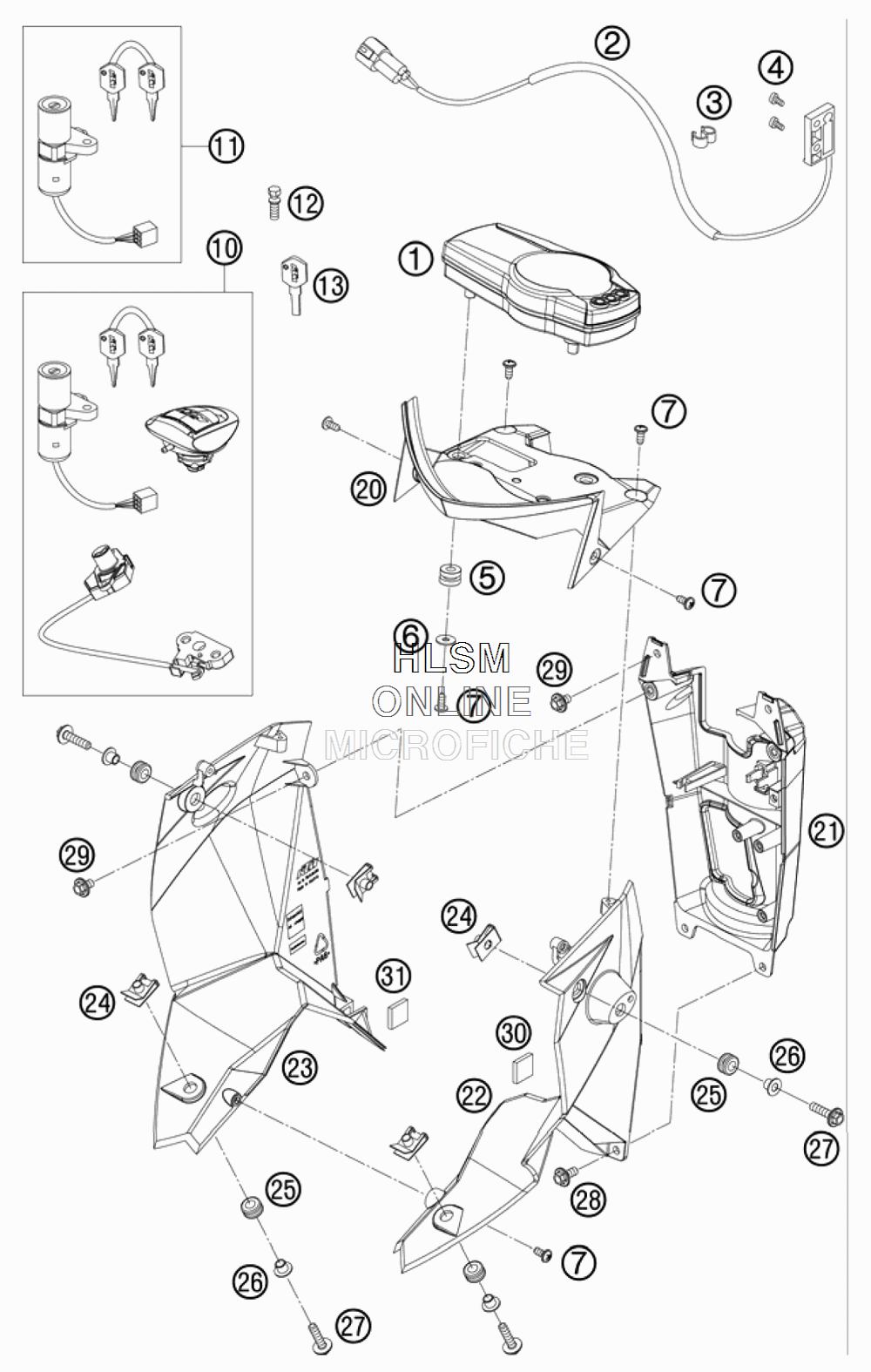

INSTRUMENTS / LOCK SYSTEM для Ktm 690 SUPER MOTO R - 2008 года выпуска
-
№АртикулНазвание
-
175014069000 SPEEDOMETERSPEEDOMETER
-
262514068100 SPEEDOMETER SENSORSPEEDOMETER SENSOR
-
360111094000 CLAMP 5/7 MMCLAMP 5/7 MM
-
40084040083 CYL.HEAD SCREW DIN0084-M 4X8 ACYL.HEAD SCREW DIN0084-M 4X8 A
-
558214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
60021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
70081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
1075011066144 KEY-SETKEY-SET
-
1175011166000 IGNITION LOCKIGNITION LOCK
-
1260011064000 TAMPERPROOF SCREW F. IGN. LOCKTAMPERPROOF SCREW F. IGN. LOCK
-
1340011166100 KEY BLANK LC4/DUKE/LC8KEY BLANK LC4/DUKE/LC8
-
2075014060000 SPEEDOMETER BRACKETSPEEDOMETER BRACKET
-
2175014064000 COVERCOVER
-
2275014062000 MASK BRACKET L/SMASK BRACKET L/S
-
2375014063000 MASK BRACKET R/SMASK BRACKET R/S
-
2454603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
2531008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
2675014010050 COLLAR BUSHING 6,1X8,1X14X8COLLAR BUSHING 6,1X8,1X14X8
-
270024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
280024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
290024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
3075014062010 METAMOLLMETAMOLL
-
3175014063010 METAMOLLMETAMOLL
