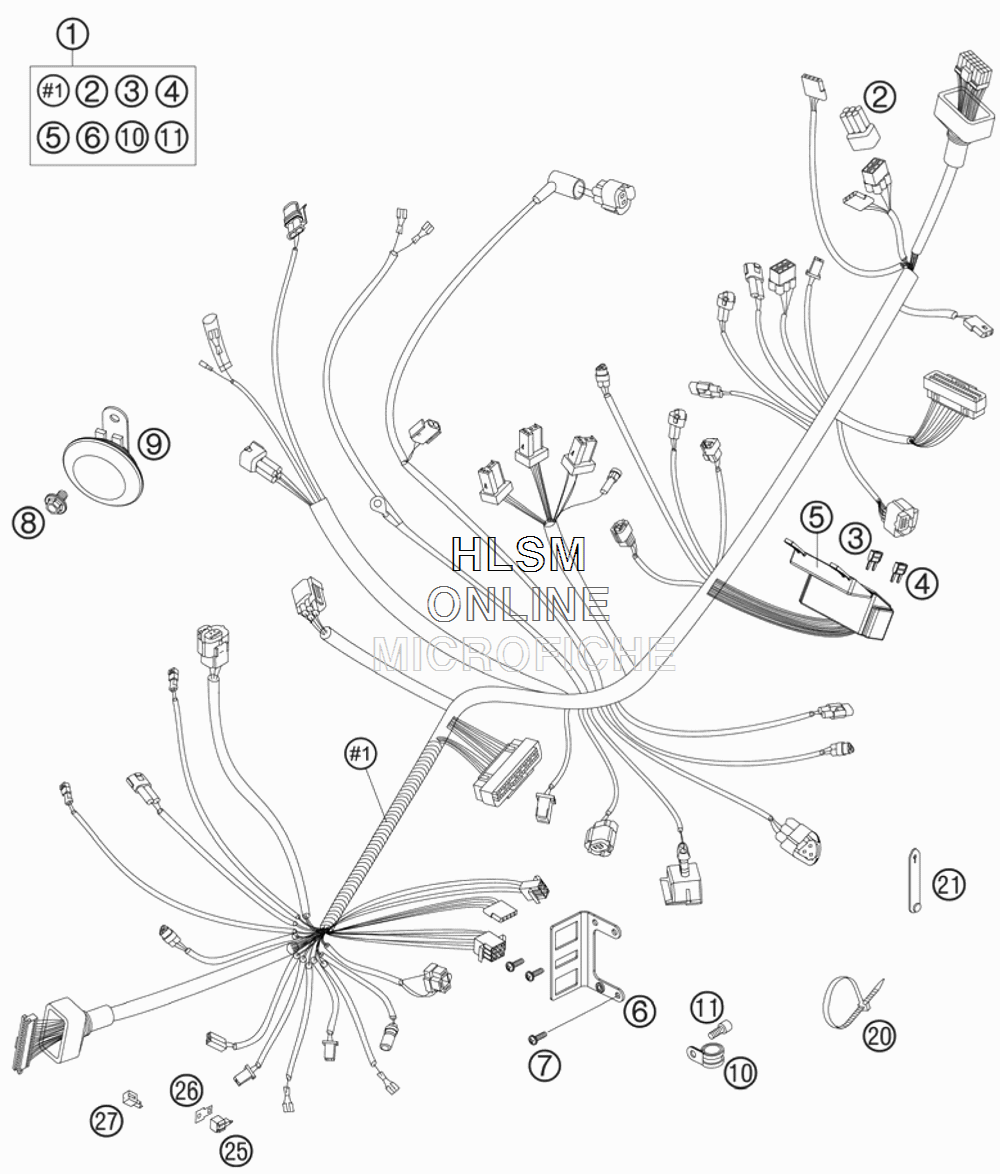

WIRING HARNESS для Ktm 690 SUPER MOTO R - 2008 года выпуска
-
№АртикулНазвание
-
175011075000 WIRING HARNESSWIRING HARNESS
-
2000700000BH SPARE CONNECTOR BH 6-PINSSPARE CONNECTOR BH 6-PINS
-
375011088010 FUSE 10AFUSE 10A
-
475011088015 FUSE 15AFUSE 15A
-
575011087050 RUBBER CASING FOR FUSE BOXRUBBER CASING FOR FUSE BOX
-
675011083000 BRACKET FOR PLUGSBRACKET FOR PLUGS
-
70081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
80024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
962511060000 DC HORNDC HORN
-
1049007439000 CLAMP RSGU 15/12CLAMP RSGU 15/12
-
110912050103 AH SCREW DIN0912-M 5X10AH SCREW DIN0912-M 5X10
-
2044011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
2044011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
2044011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
2160011093075 RUBBER CABLE TIE 75MMRUBBER CABLE TIE 75MM
-
2544611207200 FLASHER UNITFLASHER UNIT
-
2658211031100 BRACKET FOR FLASHER RELAISEBRACKET FOR FLASHER RELAISE
-
2758411096100 DIODE S3H-15DIODE S3H-15
