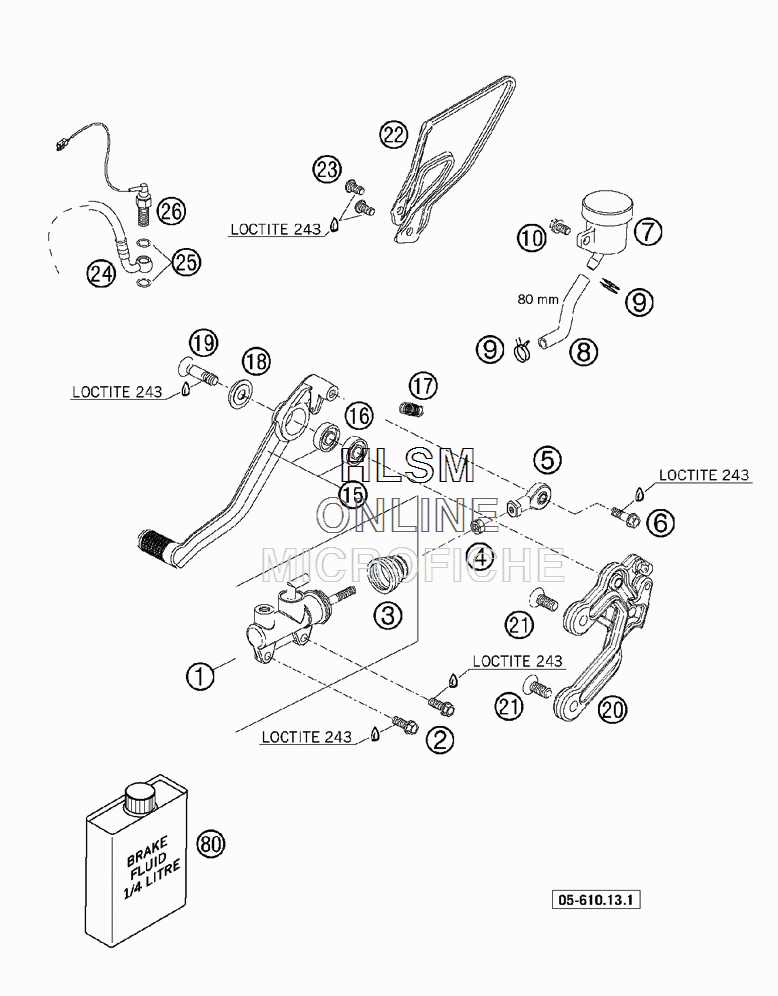

REAR BRAKE CONTROL для Ktm 950 SUPERDUKE - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    61013060000 MAIN BRAKE CYLINDER
    MAIN BRAKE CYLINDER
  • 2
    59009062016 SPECIAL SCREW M6X16 WS=8 10.9
    SPECIAL SCREW M6X16 WS=8 10.9
  • 3
    61013064000 CUP FOR MAIN BRAKE CYLINDER
    CUP FOR MAIN BRAKE CYLINDER
  • 4
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 5
    54603069000 SWIVEL HEAD M6 FOOT BRAKE LEV.
    SWIVEL HEAD M6 FOOT BRAKE LEV.
  • 6
    59009062019 SPECIAL SCREW M6X19 WS=8 10.9
    SPECIAL SCREW M6X19 WS=8 10.9
  • 7
    61013069000 RESERVOIR REAR CPL.
    RESERVOIR REAR CPL.
  • 8
    58007016101 HOSE FOR RESERVOIR 6X1,5
    HOSE FOR RESERVOIR 6X1,5
  • 9
    58007017000 YDNAC CLAMP 10101 (9MM)
    YDNAC CLAMP 10101 (9MM)
  • 10
    0015060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 15
    61013050044 FOOT BRAKE LEVER CPL.
    FOOT BRAKE LEVER CPL.
  • 16
    0625006087 GROOVED BALL BEAR. 608 2RS C3
    GROOVED BALL BEAR. 608 2RS C3
  • 17
    61013052000 SPRING FOOT BRAKE LEVER
    SPRING FOOT BRAKE LEVER
  • 18
    58303061000 SPECIAL WASHER ALU 8 X 24 MM
    SPECIAL WASHER ALU 8 X 24 MM
  • 19
    61013059000 FLAT HEAD SCREW M8X32 SL
    FLAT HEAD SCREW M8X32 SL
  • 20
    61003039000 FOOTREST BRACKET FRONT R/S
    FOOTREST BRACKET FRONT R/S
  • 21
    54610052000 SPROCKET SCREW-AH M8X20 WS=6
    SPROCKET SCREW-AH M8X20 WS=6
  • 22
    61013032000 COVER PLATE R/S
    COVER PLATE R/S
  • 23
    0738060101 COU.SUNK SCR. AH ISO7380 M6X10
    COU.SUNK SCR. AH ISO7380 M6X10
  • 24
    61013072000 BRAKE PIPE REAR
    BRAKE PIPE REAR
  • 25
    42013226000 CU-SEAL RING DIN7603-10X16X1
    CU-SEAL RING DIN7603-10X16X1
  • 26
    61011051000 BRAKE LIGHT SWITCH REAR 05
    BRAKE LIGHT SWITCH REAR 05
  • 80
    306054 BRAKE FLUID DOT 5.1
    BRAKE FLUID DOT 5.1
