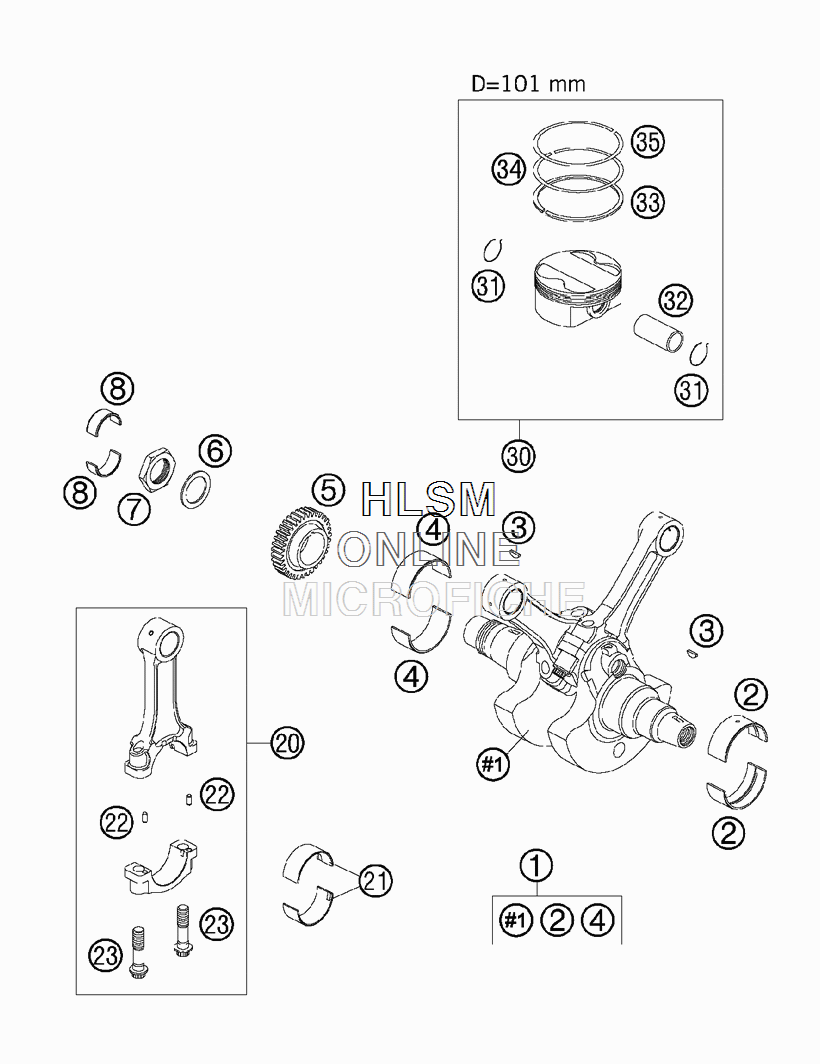

CRANKSHAFT W/ PISTON для Ktm 950 SUPERDUKE - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    61030018000 CRANKSHAFT KPL.
    CRANKSHAFT KPL.
  • 2
    60030082000 1 SPLIT BEAR.BUSH SIZE 1 RED
    SPLIT BEAR.BUSH SIZE 1 RED
  • 2
    60030082000 2 SPLIT BEAR.BUSH SIZE 2 BLUE
    SPLIT BEAR.BUSH SIZE 2 BLUE
  • 2
    60030082000 3 SPLIT BEAR.BUSH SIZE 3 YELL
    SPLIT BEAR.BUSH SIZE 3 YELL
  • 3
    0888040050 WOODRUFF KEY DIN6888 4X5X13
    WOODRUFF KEY DIN6888 4X5X13
  • 4
    60030182000 1 SPLIT BEAR.BUSH SIZE 1 RED
    SPLIT BEAR.BUSH SIZE 1 RED
  • 4
    60030182000 2 SPLIT BEAR.BUSH SIZE 2 BLUE
    SPLIT BEAR.BUSH SIZE 2 BLUE
  • 4
    60030182000 3 SPLIT BEAR.BUSH SIZE 3 YELL.
    SPLIT BEAR.BUSH SIZE 3 YELL.
  • 5
    60032023035 PRIMARY PINION 35 T
    PRIMARY PINION 35 T
  • 6
    60032009040 WASHER 33,2X46X2
    WASHER 33,2X46X2
  • 7
    60032009050 HH-NUT M33X1,5 L/S WS46
    HH-NUT M33X1,5 L/S WS46
  • 8
    60030026010 BUSHING BOWL 28X32X13
    BUSHING BOWL 28X32X13
  • 20
    60030013144 CONNECTING ROD CPL.
    CONNECTING ROD CPL.
  • 21
    60030013051 BUSH.BOWL PACK. SIZE 1 RED
    BUSH.BOWL PACK. SIZE 1 RED
  • 21
    60030013052 BUSH.BOWL PACK. SIZE 2 BLUE
    BUSH.BOWL PACK. SIZE 2 BLUE
  • 21
    60030013053 BUSH.BOWL PACK. SIZE 3 YELL
    BUSH.BOWL PACK. SIZE 3 YELL
  • 22
    60030015061 CYLINDER PIN
    CYLINDER PIN
  • 23
    60030015160 CONNECTING-ROD BOLT MJ10X1
    CONNECTING-ROD BOLT MJ10X1
  • 30
    61030007000I PISTON D=101
    PISTON D=101
  • 30
    61030007000II PISTON D=101
    PISTON D=101
  • 31
    60030074000 SAFETY CLIP
    SAFETY CLIP
  • 32
    75030033000 PISTON PIN EB 22/72 D22X56
    PISTON PIN EB 22/72 D22X56
  • 33
    61030032000 OIL SCRAPER RING D=101MM
    OIL SCRAPER RING D=101MM
  • 34
    58330932100 TAP.COMPR.PISTON RING 101X1,25
    TAP.COMPR.PISTON RING 101X1,25
  • 35
    61030030000 PISTON RING "L" D=101 H=1,25
    PISTON RING "L" D=101 H=1,25
