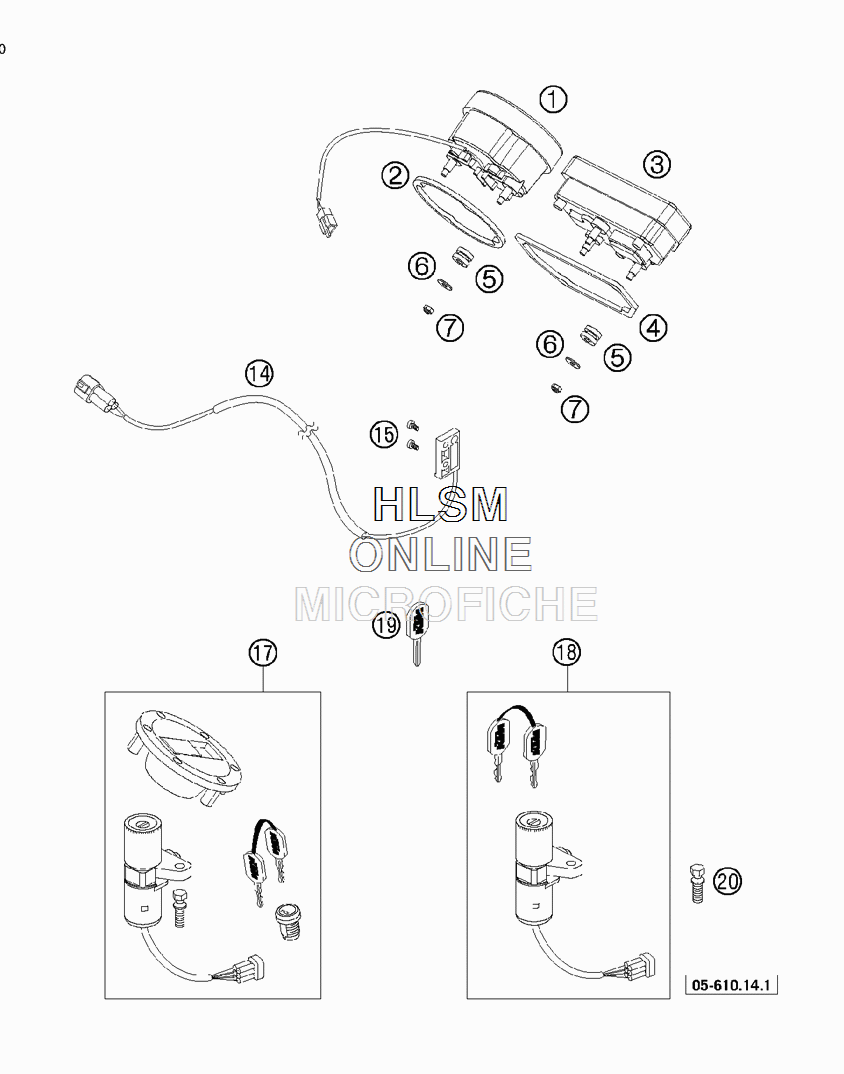

INSTRUMENTS W/ LOCK SYSTEM для Ktm 950 SUPERDUKE - 2005 года выпуска
-
№АртикулНазвание
-
160014075000 REV COUNTERREV COUNTER
-
260014068100 DAMPING RING SPEEDOMETERDAMPING RING SPEEDOMETER
-
361014069000 DIGITAL SPEEDOMETERDIGITAL SPEEDOMETER
-
460014068000 DAMPING RING TACHOMETERDAMPING RING TACHOMETER
-
558214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
60021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
70985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
1461014069050 SPEEDOMETER SENSORSPEEDOMETER SENSOR
-
150084040083 CYL.HEAD SCREW DIN0084-M 4X8 ACYL.HEAD SCREW DIN0084-M 4X8 A
-
1761011066044 LOCK SYSTEMLOCK SYSTEM
-
1860011066000 IGNITION LOCKIGNITION LOCK
-
1940011166100 KEY BLANKKEY BLANK
-
2060011064000 TAMPERPROOF SCREW F. IGN. LOCKTAMPERPROOF SCREW F. IGN. LOCK
