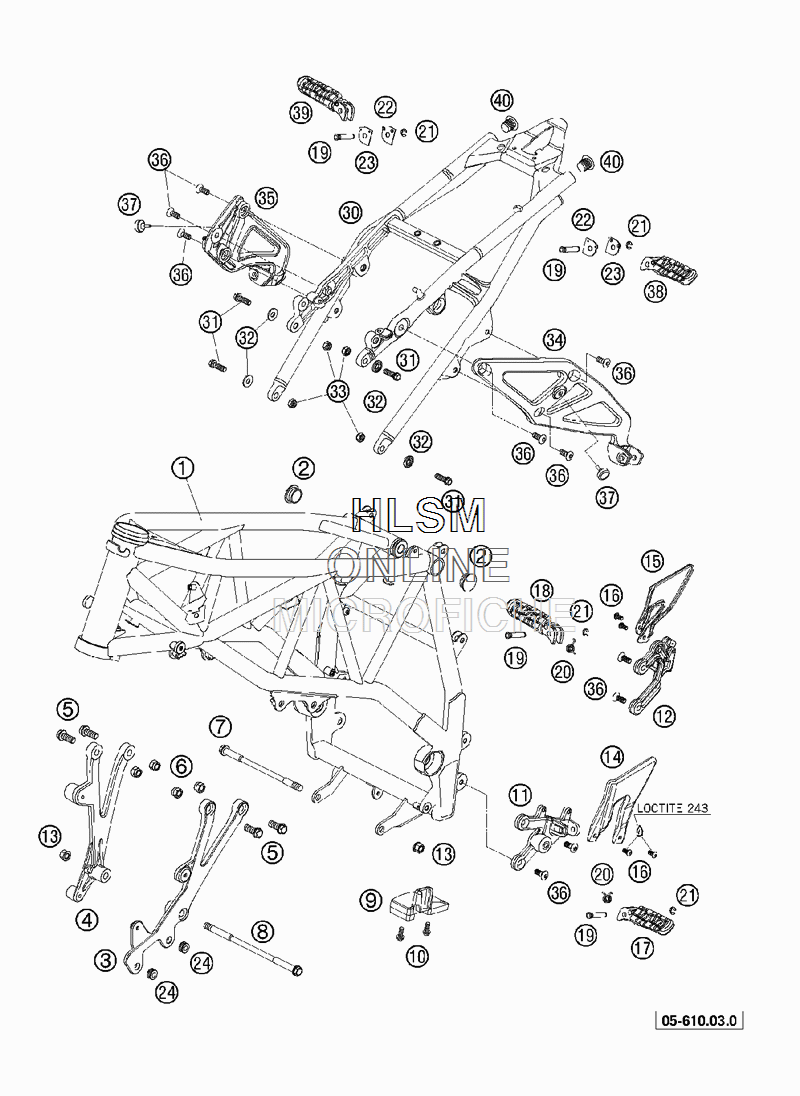

FRAME W/ SUB FRAME для Ktm 950 SUPERDUKE - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    6100300100030 FRAME
    FRAME
  • 2
    61003088000 PLUG SFL28 05
    PLUG SFL28 05
  • 3
    61003005000 ENGINE SUPPORT LEFT
    ENGINE SUPPORT LEFT
  • 4
    61003006000 ENGINE SUPPORT RIGHT
    ENGINE SUPPORT RIGHT
  • 5
    0015100243 HH COLLAR SCREW M10X24 WS=13
    HH COLLAR SCREW M10X24 WS=13
  • 6
    54310086100 SELF LOCKING NUT M10 CU WS=14
    SELF LOCKING NUT M10 CU WS=14
  • 7
    60003013000 ENGINE BRAC. SCREW M10X172
    ENGINE BRAC. SCREW M10X172
  • 8
    60003014000 ENGINE BRAC. SCREW M10X206
    ENGINE BRAC. SCREW M10X206
  • 9
    60004076100 CHAIN SLIDING BLOCK
    CHAIN SLIDING BLOCK
  • 10
    0017060204 EJOT PT SCREW K60X20 ALU WS=6
    EJOT PT SCREW K60X20 ALU WS=6
  • 11
    61003038000 FOOTREST BRACKET FRONT L/S
    FOOTREST BRACKET FRONT L/S
  • 12
    61003039000 FOOTREST BRACKET FRONT R/S
    FOOTREST BRACKET FRONT R/S
  • 13
    54630044000 COLLAR NUT M10 WS=13
    COLLAR NUT M10 WS=13
  • 14
    61034032000 COVER PLATE L/S
    COVER PLATE L/S
  • 15
    61013032000 COVER PLATE R/S
    COVER PLATE R/S
  • 16
    0738060101 COU.SUNK SCR. AH ISO7380 M6X10
    COU.SUNK SCR. AH ISO7380 M6X10
  • 17
    61003050000 FOOTREST FRONT L/S CPL.
    FOOTREST FRONT L/S CPL.
  • 18
    61003051000 FOOTREST FRONT R/S CPL.
    FOOTREST FRONT R/S CPL.
  • 19
    60003044000 BOLT FOR FOOTREST REAR
    BOLT FOR FOOTREST REAR
  • 20
    61003042000 SPRING FOOTREST FRONT
    SPRING FOOTREST FRONT
  • 21
    0799060003 TAB WASHER DIN6799-RS 6,0
    TAB WASHER DIN6799-RS 6,0
  • 22
    60003152000 ENGAGE PANEL FOOTREST L
    ENGAGE PANEL FOOTREST L
  • 23
    60003052000 ENGAGE PANEL FOOTREST R
    ENGAGE PANEL FOOTREST R
  • 30
    61003002000 SUB FRAME ALUMINIUM
    SUB FRAME ALUMINIUM
  • 31
    0015080303 HH COLLAR SCREW M 8X30 WS=10
    HH COLLAR SCREW M 8X30 WS=10
  • 32
    61003002058 STEPPED WASHER 8,5X20X3,5
    STEPPED WASHER 8,5X20X3,5
  • 33
    0926080003 STOP NUT DIN6926 M8 SS
    STOP NUT DIN6926 M8 SS
  • 34
    61003048000 FOOTREST BRACKET REAR L/S
    FOOTREST BRACKET REAR L/S
  • 35
    61003049000 FOOTREST BRACKET REAR R/S
    FOOTREST BRACKET REAR R/S
  • 36
    54610052000 SPROCKET SCREW-AH M8X20 WS=6
    SPROCKET SCREW-AH M8X20 WS=6
  • 37
    60006001021 DISTANCE RUBBER AIRBOX
    DISTANCE RUBBER AIRBOX
  • 38
    60003050000 FOOTREST CPL. L/S REAR
    FOOTREST CPL. L/S REAR
  • 39
    60003051000 FOOTREST CPL. R/S REAR
    FOOTREST CPL. R/S REAR
  • 40
    61003089000 PLUG SFL 22X1,8-3,5
    PLUG SFL 22X1,8-3,5
