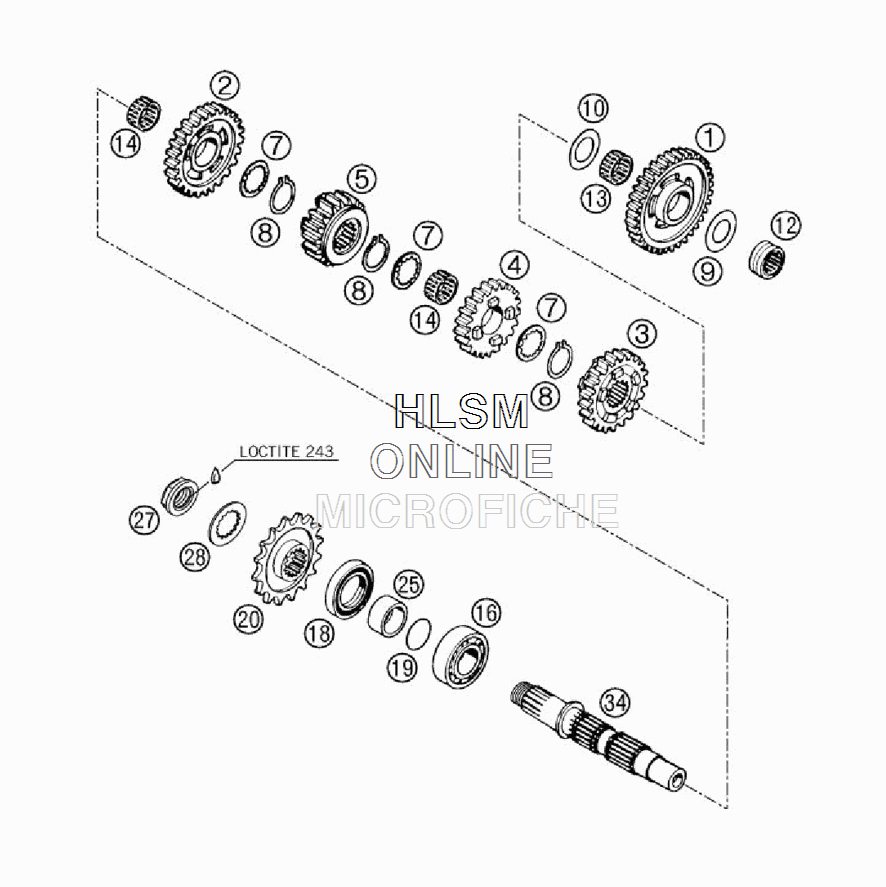

TRANSMISSION - COUNTER SHAFT для Ktm 640 ADVENTURE - 2005 года выпуска`
-
№АртикулНазвание
-
156533005300 IDLER GEAR 1.G 35-T (1M3)IDLER GEAR 1.G 35-T (1M3)
-
258333113010 IDLER GEAR 2.G 24-T "10"IDLER GEAR 2.G 24-T "10"
-
358333007003 SLIDING GEAR 3.G 21-T "03"SLIDING GEAR 3.G 21-T "03"
-
458333009005 IDLER GEAR 4.G 19-T "05"IDLER GEAR 4.G 19-T "05"
-
558333011009 SLIDING GEAR 5.G 18-T "09"SLIDING GEAR 5.G 18-T "09"
-
756533016300 STOP DISK 22,7 X 32 X 1,5STOP DISK 22,7 X 32 X 1,5
-
852033096000 LOCK RING DIN0471-25X1,64SDLOCK RING DIN0471-25X1,64SD
-
956533015000 STOP DISK 20,2 X 35 X 1STOP DISK 20,2 X 35 X 1
-
1056533018300 STOP DISK 22,2 X 35 X 1,5STOP DISK 22,2 X 35 X 1,5
-
1256533093000 NEEDLE BEARING RNA 4902 KSENEEDLE BEARING RNA 4902 KSE
-
1356533098000 NEEDLE BEARING K22X26X13HNEEDLE BEARING K22X26X13H
-
140405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
1649030023000 CYL.ROLL BEARING NJ205CYL.ROLL BEARING NJ205
-
180760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
190770250021 O-RING 25,00X2,00 SILICONEO-RING 25,00X2,00 SILICONE
-
2058033029014 ENGINE SPROCKET 14 TENGINE SPROCKET 14 T
-
2058033029015 ENGINE SPROCKET 15 TENGINE SPROCKET 15 T
-
2058033029016 ENGINE SPROCKET 16 TENGINE SPROCKET 16 T
-
2058033029017 ENGINE SPROCKET 17 TENGINE SPROCKET 17 T
-
2554633014100 SPACER BUSHING 12MMSPACER BUSHING 12MM
-
2758033032200 SPROCKET NUTSPROCKET NUT
-
2851033031000 LOCK WASHERLOCK WASHER
-
3458333003100 COUNTERSHAFTCOUNTERSHAFT
