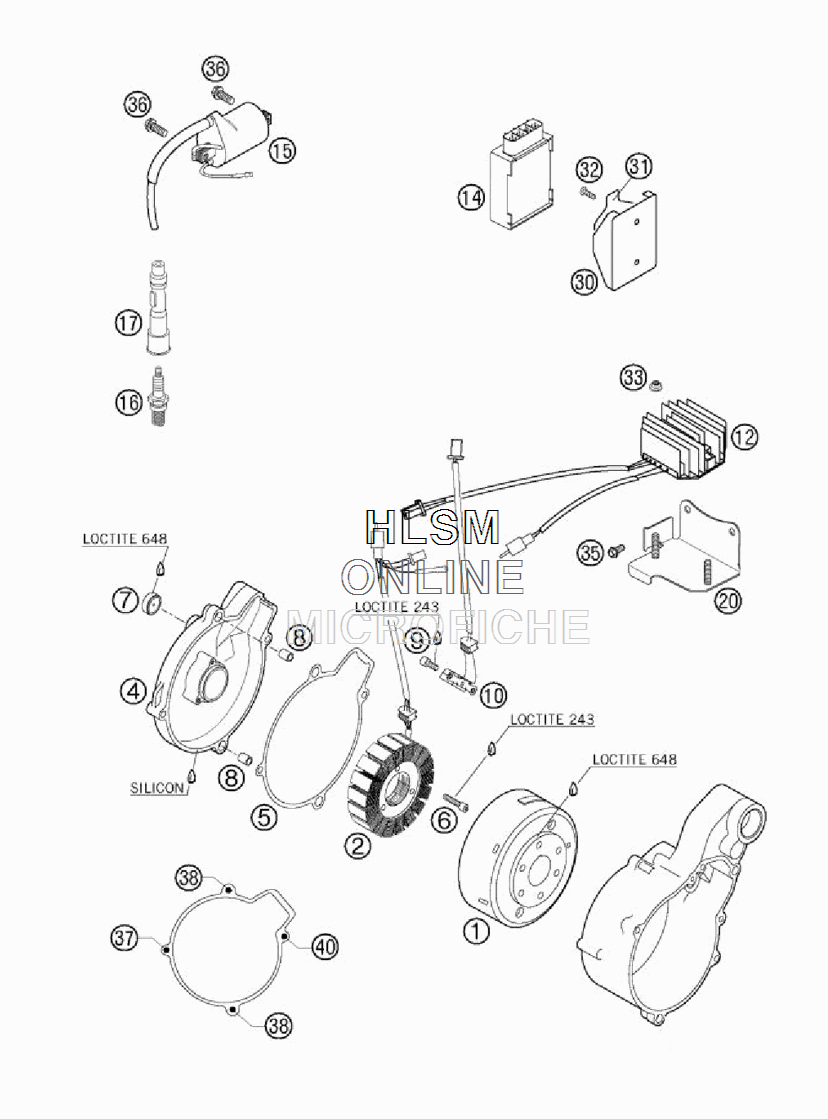

IGNITION SYSTEM KOKUSAN для Ktm 640 ADVENTURE - 2005 года выпуска`
-
№АртикулНазвание
-
158439005100 FLYWHEEL KOKUSAN GP9128FLYWHEEL KOKUSAN GP9128
-
258439004000 STATOR KOKUSAN LOOSESTATOR KOKUSAN LOOSE
-
45843000214423 IGNITION COVER CPL. GREYIGNITION COVER CPL. GREY
-
558430040000 IGNITION COVER GASKETIGNITION COVER GASKET
-
60912050253 AH SCREW DIN0912-M 5X25AH SCREW DIN0912-M 5X25
-
758430095000 INSPECTION GLASS GW 20-7INSPECTION GLASS GW 20-7
-
849030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
90912050083 AH SCREW DIN 912 M 5X8AH SCREW DIN 912 M 5X8
-
1058439034000 PULSER COILPULSER COIL
-
1258411034100 VOLT.REGULATOR-RECTIFIER 12VVOLT.REGULATOR-RECTIFIER 12V
-
1458439031900 CDICDI
-
1558439006000 IGNITIONCOIL IG3826 KOKUSANIGNITIONCOIL IG3826 KOKUSAN
-
1659039093100 SPARK PLUG NGK DCPR8ESPARK PLUG NGK DCPR8E
-
1758439090000 SPARK PLUG CONNECT. SD05EGSPARK PLUG CONNECT. SD05EG
-
2058411055200 BATTERY BRACKETBATTERY BRACKET
-
3058439030200 RUBBER BRACKET FOR DIGI-BOXRUBBER BRACKET FOR DIGI-BOX
-
3158439030250 SUPPORT FOR RUBBER BRACKETSUPPORT FOR RUBBER BRACKET
-
320017050181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
3356509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
350015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
360015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
370015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
380015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
400015060803 HH COLLAR SCREW M 6X80 WS=8HH COLLAR SCREW M 6X80 WS=8
