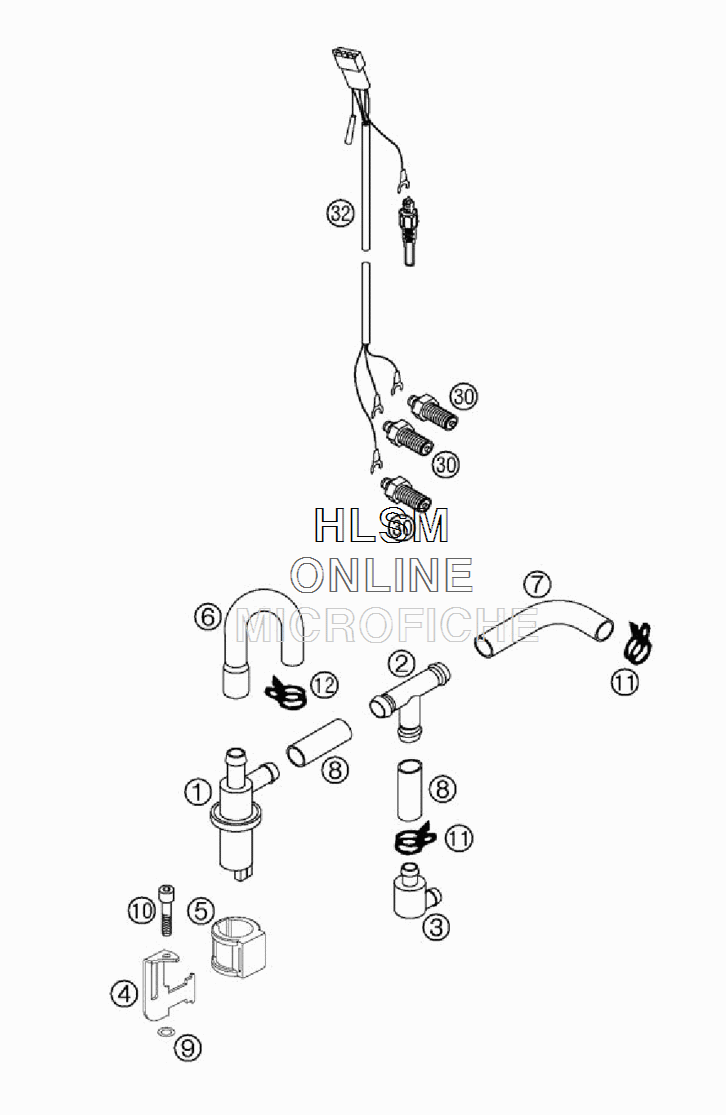

ELECTRONIC POWER C. для Ktm 640 ADVENTURE - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    58431067000 MAGNETIC VALVE PIRBURG
    MAGNETIC VALVE PIRBURG
  • 2
    58431072000 T-CONNECTION 12MM
    T-CONNECTION 12MM
  • 3
    58431070100 AIR FILTER
    AIR FILTER
  • 4
    58431069000 BRACKET FOR MAGNETIC VALVE
    BRACKET FOR MAGNETIC VALVE
  • 5
    60031068000 RUBBER SUPPORT F. MAG.VALVE
    RUBBER SUPPORT F. MAG.VALVE
  • 6
    58431071000 VACUUM HOSE FOR MAGNETIC V.
    VACUUM HOSE FOR MAGNETIC V.
  • 7
    58431097000 ANGULAR HOSE T-CON.-CARBURETOR
    ANGULAR HOSE T-CON.-CARBURETOR
  • 8
    58431097100 TUBE 12MM T-CON.-FILTER
    TUBE 12MM T-CON.-FILTER
  • 9
    58036065100 CU-SEAL RING 6 X 10 X 2
    CU-SEAL RING 6 X 10 X 2
  • 10
    0912060303 AH SCREW DIN0912-M 6X30
    AH SCREW DIN0912-M 6X30
  • 11
    58431082000 YDNAC-CLAMP 15MM
    YDNAC-CLAMP 15MM
  • 12
    58431082100 YDNAC-CLAMP 10173 (16MM)
    YDNAC-CLAMP 10173 (16MM)
  • 30
    58011081100 CONTACT SCREW M10 STEEL
    CONTACT SCREW M10 STEEL
  • 32
    58411085000 WIRING HARN. EPC F. ENGINE
    WIRING HARN. EPC F. ENGINE
