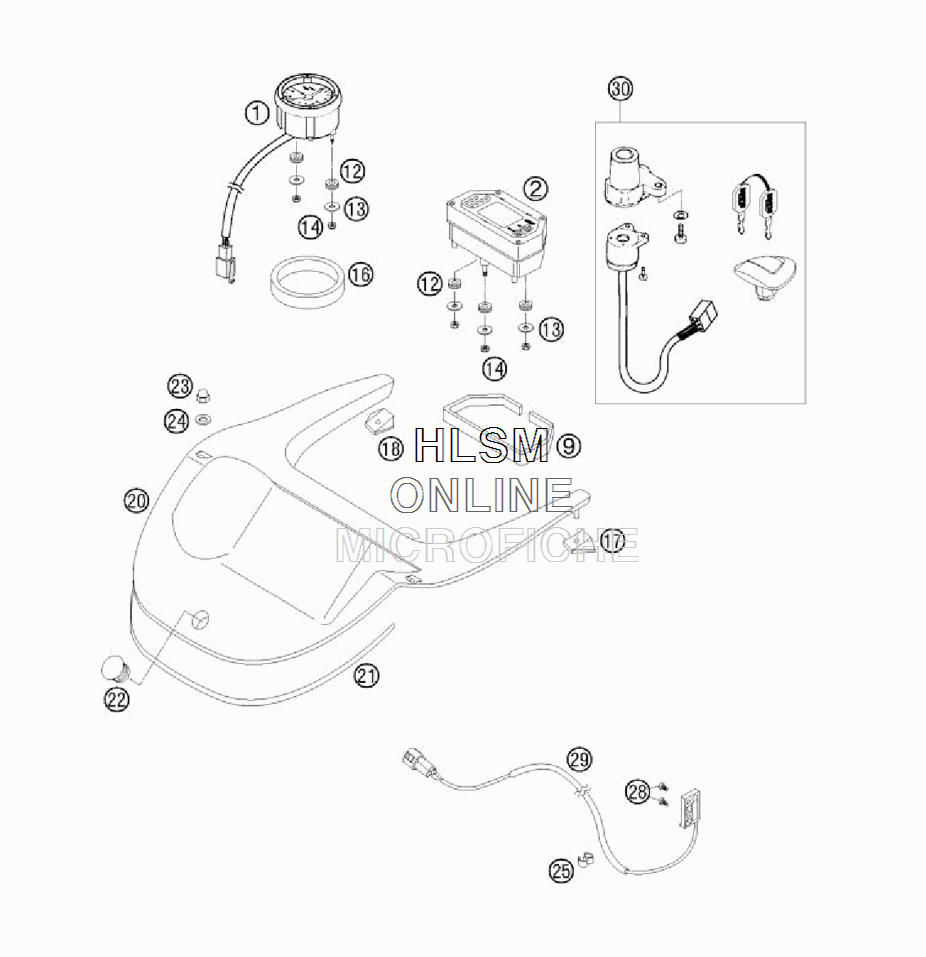

SPEEDOMETER - TACHOMETER для Ktm 640 ADVENTURE - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    58214075100 TACHOMETER
    TACHOMETER
  • 2
    60014069100 DIGITAL SPEEDOMETER
    DIGITAL SPEEDOMETER
  • 9
    58211001065 FOAM 3X8MM PER METER
    FOAM 3X8MM PER METER
  • 12
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 13
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 14
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 16
    58214067000 VIEW PROTECTION TACHOM.
    VIEW PROTECTION TACHOM.
  • 17
    58214070151 VIEW PROTECTION L/S
    VIEW PROTECTION L/S
  • 18
    58214070152 VIEW PROTECTION R/S
    VIEW PROTECTION R/S
  • 20
    58214070300 COCKPIT COVER ADVENTURE WITH BORE FOR CONNECTOR
    COCKPIT COVER ADVENTURE WITH BORE FOR CONNECTOR
  • 21
    58214070150 BORDER PROTEC.
    BORDER PROTEC.
  • 22
    71001012100 PVC CAP D=22MM
    PVC CAP D=22MM
  • 23
    0587060001 HH CAP NUT DIN1587-M 6 BLACK
    HH CAP NUT DIN1587-M 6 BLACK
  • 24
    56032005100 WASHER 6X17X1,5 BLACK
    WASHER 6X17X1,5 BLACK
  • 25
    55011022100 CLAMP D=6/8MM, BLACK
    CLAMP D=6/8MM, BLACK
  • 28
    0084040083 CYL.HEAD SCREW DIN0084-M 4X8 A
    CYL.HEAD SCREW DIN0084-M 4X8 A
  • 29
    60014069050 SPEEDOMETER SENSOR
    SPEEDOMETER SENSOR
  • 30
    58411066244 IGNITION LOCK+TANK PLUG
    IGNITION LOCK+TANK PLUG
  • 30
    58411066344 IGNITION LOCK+TANK PLUG
    IGNITION LOCK+TANK PLUG
