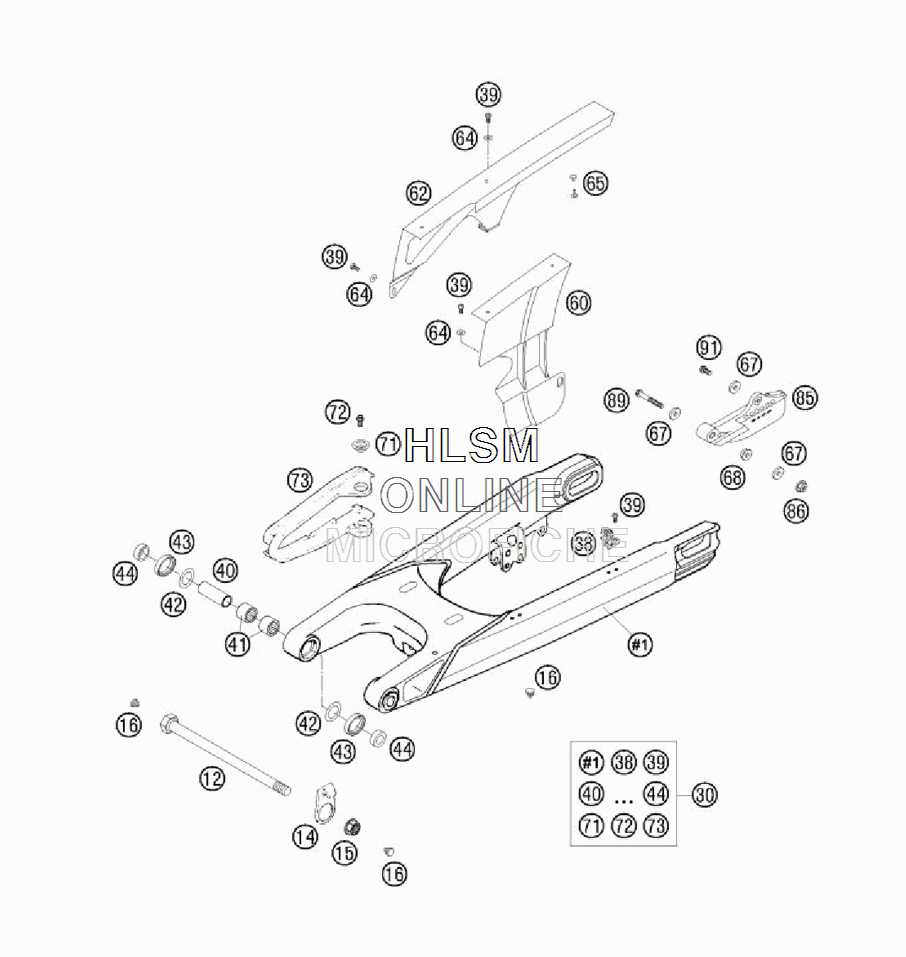

SWINGARM W/ CHAIN GUARD для Ktm 640 ADVENTURE - 2005 года выпуска`
-
№АртикулНазвание
-
1254603014100 SWINGARM BOLT KPL. L=253SWINGARM BOLT KPL. L=253
-
1450230211000 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
1554603015000 SELF LOCKING NUT M14X1,5 WS=19SELF LOCKING NUT M14X1,5 WS=19
-
1654403135000 PLASTIC CAP SFL10PLASTIC CAP SFL10
-
3058404030344 SWINGARM CPL.SWINGARM CPL.
-
3854611076100 RETAIN.CLAMP FOR BRAKE HOSERETAIN.CLAMP FOR BRAKE HOSE
-
390010050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
4050203081700 BUSHING SLEEVE 15X20X38,75BUSHING SLEEVE 15X20X38,75
-
4159004031000 NEEDLE BUSH HK2012VNEEDLE BUSH HK2012V
-
4259004033100 WASHER 20X32X0,8WASHER 20X32X0,8
-
430760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
4454603090000 BUCKET F.SHAFTSEALRING 15X25X9BUCKET F.SHAFTSEALRING 15X25X9
-
6058307060000 CHAINGUARD SMALLCHAINGUARD SMALL
-
6258307060250 CHAINGUARD LARGECHAINGUARD LARGE
-
640021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
6520012062055 HOLLOW RIVET TWO PARTSHOLLOW RIVET TWO PARTS
-
6750232050003 STEEL WASHER 6,2X18X2 DACROMETSTEEL WASHER 6,2X18X2 DACROMET
-
6858404060150 COLLARED BUSH 6,2X10X20X6COLLARED BUSH 6,2X10X20X6
-
7172210079000 BUCKETBUCKET
-
720015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
7358307073000 CHAIN SLIDING GUARDCHAIN SLIDING GUARD
-
8558404070000 CHAIN GUIDE CPL. REARCHAIN GUIDE CPL. REAR
-
8656509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
890015060553 HH COLLAR SCREW M 6X55 WS=8HH COLLAR SCREW M 6X55 WS=8
-
910015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
