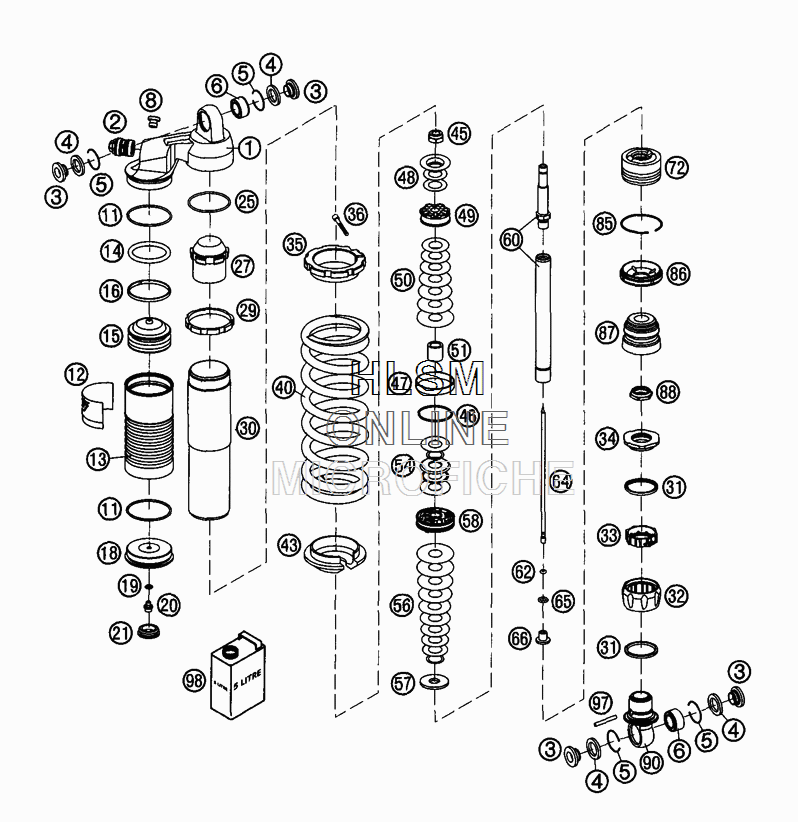

SHOCK ABSORBER - DIASSEMBLED для Ktm 85 SX - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    46180316 SHOCK ABSORBER TOP VP H=40 PDS
    SHOCK ABSORBER TOP VP H=40 PDS
  • 2
    50180213S4 DCC-COMPR.DAMP.CONTROL CPL.
    DCC-COMPR.DAMP.CONTROL CPL.
  • 3
    46180007 ADAPTOR BUSH KGW 12X24
    ADAPTOR BUSH KGW 12X24
  • 4
    46180003 OIL SEAL KGW D=25
    OIL SEAL KGW D=25
  • 5
    50180168 WASHER KGW D=25
    WASHER KGW D=25
  • 6
    46811027 BUSHING KGW 1525
    BUSHING KGW 1525
  • 8
    50180095 BLEED PLUG R 1/8
    BLEED PLUG R 1/8
  • 11
    46180017 O-RING NBR 50X2
    O-RING NBR 50X2
  • 12
    52000044 STICKER WP KTM
    STICKER WP KTM
  • 13
    46180319 RESERVOIR SCREW L=113,5 D=52
    RESERVOIR SCREW L=113,5 D=52
  • 14
    50180103 O-RING 41X5
    O-RING 41X5
  • 15
    46180002 SEPARATION PISTON D=52; H=32
    SEPARATION PISTON D=52; H=32
  • 16
    46180015 PISTON RING 3,9X1,5X156
    PISTON RING 3,9X1,5X156
  • 18
    50180344 RESERVOIR CAP D=58
    RESERVOIR CAP D=58
  • 19
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 20
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 21
    46811208 RUBBER CAP "DO NOT OPEN"
    RUBBER CAP "DO NOT OPEN"
  • 25
    46810016 O-RING NBR 48X2
    O-RING NBR 48X2
  • 27
    46180325 SLEEVE D=46 03
    SLEEVE D=46 03
  • 29
    46180308 LOCK WASHER M52X1,5
    LOCK WASHER M52X1,5
  • 30
    46180227 TUBE M52X1,5 L=190
    TUBE M52X1,5 L=190
  • 31
    46180110 SEAL SHAFT RING D=38X3
    SEAL SHAFT RING D=38X3
  • 32
    46180178 ADJUSTING KNOB REBOUND
    ADJUSTING KNOB REBOUND
  • 33
    46180139 CLICKER DISC ALU
    CLICKER DISC ALU
  • 34
    46180141 CLOSING NUT M27X1
    CLOSING NUT M27X1
  • 35
    46180328 SPRING RETAINER M4
    SPRING RETAINER M4
  • 36
    50600053 AH SCREW M 4X30
    AH SCREW M 4X30
  • 38
    91010240 SPRING (59) 215 35 N/MM D=9,25
    SPRING (59) 215 35 N/MM D=9,25
  • 38
    91010161 SPRING (59) 215 40 N/MM D=9,5
    SPRING (59) 215 40 N/MM D=9,5
  • 40
    91010201 SPRING (59) 215 45 N/MM D=10
    SPRING (59) 215 45 N/MM D=10
  • 43
    50180329 SPRING WASHER H=15
    SPRING WASHER H=15
  • 45
    36120052 PISTON ROD NUT M10X1
    PISTON ROD NUT M10X1
  • 46
    46810035 O-RING VITON 37,82X1,78
    O-RING VITON 37,82X1,78
  • 47
    46811206 PISTON RING 8X46
    PISTON RING 8X46
  • 48
    36120349 SHIM 10X19X0,30
    SHIM 10X19X0,30
  • 48
    50180032 BACKPLATE 15X25X0,25
    BACKPLATE 15X25X0,25
  • 48
    50180395 RING 10X16X1
    RING 10X16X1
  • 49
    14460016 PISTON + PISTON SPRING
    PISTON + PISTON SPRING
  • 50
    46810492 SHIM 12X28X0,20
    SHIM 12X28X0,20
  • 50
    46810493 SHIM 12X30X0,20
    SHIM 12X30X0,20
  • 50
    46810494 SHIM 12X32X0,20
    SHIM 12X32X0,20
  • 50
    46810495 SHIM 12X34X0,20
    SHIM 12X34X0,20
  • 50
    46810496 SHIM 12X36X0,20
    SHIM 12X36X0,20
  • 50
    46810519 SHIM 12X28X0,15
    SHIM 12X28X0,15
  • 50
    46810637 BACKPLATE 12X17X0,30
    BACKPLATE 12X17X0,30
  • 51
    46180326 SANDWICH BUSH 12X18X18 03
    SANDWICH BUSH 12X18X18 03
  • 54
    36120312 BACKPLATE 10X16X0,30
    BACKPLATE 10X16X0,30
  • 54
    36120334 SHIM 10X21X0,20
    SHIM 10X21X0,20
  • 54
    36120335 SHIM 10X23X0,20
    SHIM 10X23X0,20
  • 54
    36120336 SHIM 10X25X0,20
    SHIM 10X25X0,20
  • 54
    36120337 SHIM 10X27X0,20
    SHIM 10X27X0,20
  • 54
    36120338 SHIM 10X29X0,20
    SHIM 10X29X0,20
  • 54
    36120339 SHIM 10X31X0,20
    SHIM 10X31X0,20
  • 56
    46810491 SHIM 12X26X0,20
    SHIM 12X26X0,20
  • 56
    46810492 SHIM 12X28X0,20
    SHIM 12X28X0,20
  • 56
    46810493 SHIM 12X30X0,20
    SHIM 12X30X0,20
  • 56
    46810494 SHIM 12X32X0,20
    SHIM 12X32X0,20
  • 56
    46810520 SHIM 12X30X0,15
    SHIM 12X30X0,15
  • 56
    46810522 SHIM 12X34X0,15
    SHIM 12X34X0,15
  • 56
    46810523 SHIM 12X36X0,15
    SHIM 12X36X0,15
  • 56
    46810524 SHIM 12X38X0,15
    SHIM 12X38X0,15
  • 56
    46810525 SHIM 12X40X0,15
    SHIM 12X40X0,15
  • 56
    46810637 BACKPLATE 12X17X0,30
    BACKPLATE 12X17X0,30
  • 57
    46180179 REBOUND DISC H=0
    REBOUND DISC H=0
  • 57
    46180337 REBOUND DISC H=4
    REBOUND DISC H=4
  • 58
    46180047 PISTON 5X4,5X/6X6
    PISTON 5X4,5X/6X6
  • 60
    46180322S SPINDEL+TAP PISTON ROD
    SPINDEL+TAP PISTON ROD
  • 62
    46811265 O-RING VITON 2,2X1,6
    O-RING VITON 2,2X1,6
  • 64
    46180321 NEEDLE REBOUND L=175
    NEEDLE REBOUND L=175
  • 65
    48600049 O-RING NBR 8X2
    O-RING NBR 8X2
  • 66
    50180338 NEEDLE GUIDE
    NEEDLE GUIDE
  • 72
    46180323S1 ADAPTOR CPL. D=46 H=28 03
    ADAPTOR CPL. D=46 H=28 03
  • 85
    46810010 CIRCLIP 49X1,5
    CIRCLIP 49X1,5
  • 86
    46180327 CAP D=46
    CAP D=46
  • 87
    50180276 BUMP RUBBER WP60 D=18-26
    BUMP RUBBER WP60 D=18-26
  • 88
    46180004 COUNTERNUT M18X1
    COUNTERNUT M18X1
  • 90
    46180163 SHOCK ABSORBER BOTTOM KGW L=50
    SHOCK ABSORBER BOTTOM KGW L=50
  • 97
    46180170 PIN D=4X30
    PIN D=4X30
  • 98
    50180342S1 SHOCK ABSORBER FLUID 5 LT
    SHOCK ABSORBER FLUID 5 LT
