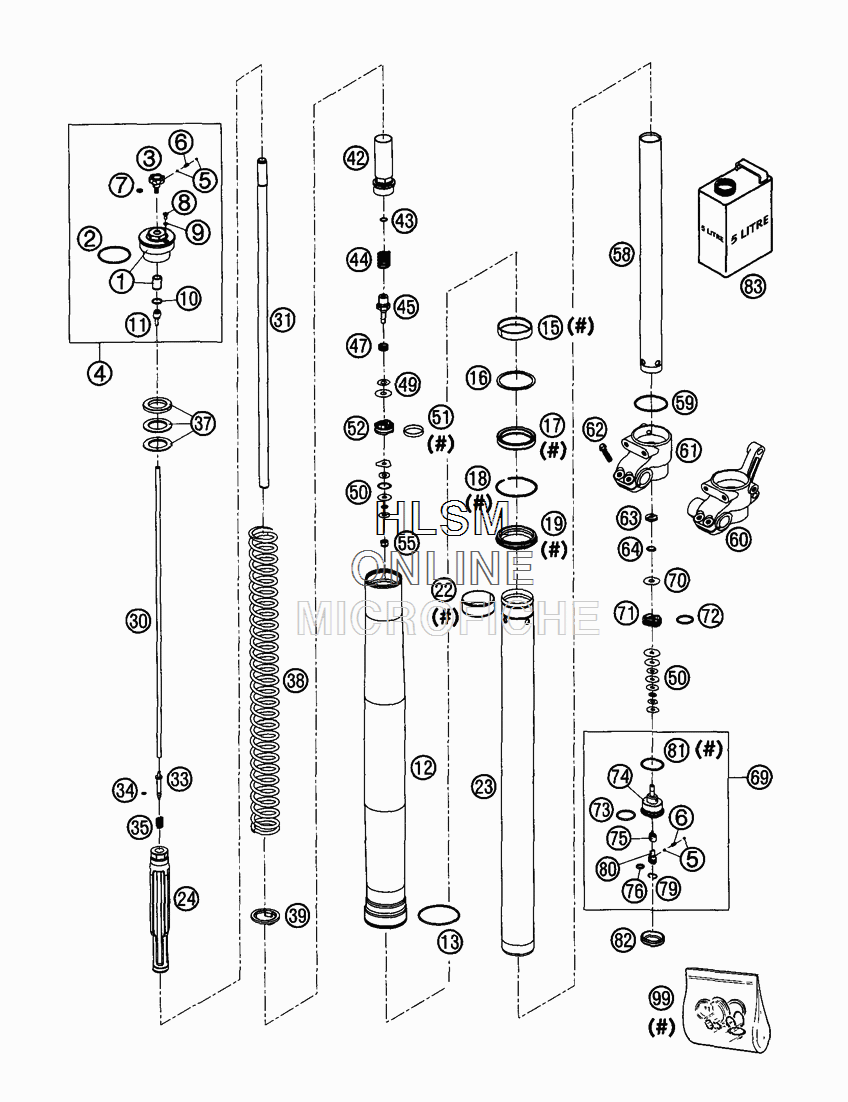

FORK LEGS - 43 для Ktm 85 SX - 2003 года выпуска`

№

Артикул

Название
1

43570216 SCREW CAP M46X1,5

SCREW CAP M46X1,5

0 ₽
2

46811042 O-RING 40,00X2,00 WP

O-RING 40,00X2,00 WP

350 ₽
3

48600018 KNOB REBOUNG ADJUSTER

KNOB REBOUNG ADJUSTER

890 ₽
4

43570216S SCREW CAP M46X1,5 CPL.

SCREW CAP M46X1,5 CPL.

51 840 ₽
5

40540603 STEEL BALL D=3MM

STEEL BALL D=3MM

60 ₽
6

48600028 SPRING D=2,9 L=7,9

SPRING D=2,9 L=7,9

660 ₽
7

48600044 O-RING NBR 6X1,5

O-RING NBR 6X1,5

130 ₽
8

48600076 VENT SCREW M4X8

VENT SCREW M4X8

410 ₽
9

48600009 O-RING NBR 3,7X1,6

O-RING NBR 3,7X1,6

60 ₽
10

48600043 O-RING NBR 12X1,5

O-RING NBR 12X1,5

270 ₽
11

48600019 HOLDER F. ADJUSTMENT TUBE D=4MM

HOLDER F. ADJUSTMENT TUBE D=4MM

500 ₽
12

43570215 OUTER TUBE L=510 D=49/53 NAT.

OUTER TUBE L=510 D=49/53 NAT.

0 ₽
13

43570099 GUIDING RING D=53MM

GUIDING RING D=53MM

7 120 ₽
15

43570204 DU-BUSH 43X47X12 DAIDO

DU-BUSH 43X47X12 DAIDO

2 780 ₽
16

43570092 SUPPORT RING 45 X 52,5 X 1,5

SUPPORT RING 45 X 52,5 X 1,5

5 430 ₽
17

43570201 OIL SEAL RING 43 X 52,9 X 9,5

OIL SEAL RING 43 X 52,9 X 9,5

4 790 ₽
18

43570008 LOCK WASHER 5853

LOCK WASHER 5853

730 ₽
19

43570202 DUST STRIPPER 43 X 53,4 X 11,8

DUST STRIPPER 43 X 53,4 X 11,8

4 860 ₽
22

43570203 DU-BUS 42X44X20

DU-BUS 42X44X20

2 780 ₽
23

43570217 INNER TUBE D=43MM L=520MM

INNER TUBE D=43MM L=520MM

90 060 ₽
24

43570212S HYDR. STOP L=135MM D=31,9 CPL.

HYDR. STOP L=135MM D=31,9 CPL.

23 600 ₽
30

48600310 ADJUSTMENT TUBE L=437MM

ADJUSTMENT TUBE L=437MM

8 960 ₽
31

48600312 PISTON ROD D=14 L=471 M11X1

PISTON ROD D=14 L=471 M11X1

0 ₽
33

48600189 NEEDLE REBOUND

NEEDLE REBOUND

9 350 ₽
34

48600046 O-RING NBR 3X1,5

O-RING NBR 3X1,5

220 ₽
35

48600033 SPRING REBOUND NEEDLE C=4N/MM

SPRING REBOUND NEEDLE C=4N/MM

1 240 ₽
37

43570133 SPACER 26X38X2,5

SPACER 26X38X2,5

740 ₽
37

43570134 SPACER 26X38X5

SPACER 26X38X5

560 ₽
37

43570135 SPACER 26X38X10

SPACER 26X38X10

770 ₽
38

95010029S SPRING 2,8 N/MM SET D=4,2MM

SPRING 2,8 N/MM SET D=4,2MM

46 850 ₽
38

95010030S SPRING 3,0 N/MM SET D=4,2MM

SPRING 3,0 N/MM SET D=4,2MM

39 430 ₽
38

95010031S SPRING 3,2 N/MM SET D=4,2MM

SPRING 3,2 N/MM SET D=4,2MM

39 430 ₽
39

43570131 INTERM. RING 26,2X38,5X3

INTERM. RING 26,2X38,5X3

4 860 ₽
42

48600200S SCREW SLEEVE M29,3X1 L=65 CPL.

SCREW SLEEVE M29,3X1 L=65 CPL.

41 020 ₽
43

48600239 O-RING NBR 8X1,25

O-RING NBR 8X1,25

250 ₽
44

48600192 REBOUND SPRING D=15MM L=34,5MM

REBOUND SPRING D=15MM L=34,5MM

4 850 ₽
45

48600203 TAB REBOUND D=3 03

TAB REBOUND D=3 03

2 480 ₽
47

35480377 SPRING CHECK VALVE D=0,5

SPRING CHECK VALVE D=0,5

310 ₽
49

48600062 CHECK VALVE 8X24X0,1

CHECK VALVE 8X24X0,1

370 ₽
49

48600068 CHECK VALVE 8X18X0,1

CHECK VALVE 8X18X0,1

370 ₽
49

48600215 CHECK VALVE 8X20X0,1

CHECK VALVE 8X20X0,1

370 ₽
49

48600216 CHECK VALVE 8X22X0,1

CHECK VALVE 8X22X0,1

370 ₽
50

48600063 SHIM 6X24X0,1

SHIM 6X24X0,1

370 ₽
50

48600064 SHIM 6X22X0,1

SHIM 6X22X0,1

370 ₽
50

48600065 SHIM 6X20X0,1

SHIM 6X20X0,1

370 ₽
50

48600116 SHIM 6X24X0,1 DELTA

SHIM 6X24X0,1 DELTA

370 ₽
50

40540401 SHIM 6X14X0,1

SHIM 6X14X0,1

370 ₽
50

40540402 SHIM 6X16X0,1

SHIM 6X16X0,1

370 ₽
50

40540403 SHIM 6X18X0,1

SHIM 6X18X0,1

370 ₽
50

40540414 SHIM 6X16X0,25

SHIM 6X16X0,25

370 ₽
50

40540415 SHIM 6X18X0,25

SHIM 6X18X0,25

370 ₽
50

40540447 SHIM 6X10X0,3

SHIM 6X10X0,3

370 ₽
50

40540450 SHIM 6X9,5X0,3

SHIM 6X9,5X0,3

370 ₽
51

48600060 PISTON RING 5X1X84

PISTON RING 5X1X84

1 160 ₽
52

48600042 PISTON REBOUND D=27,7

PISTON REBOUND D=27,7

3 040 ₽
55

40540486 NUT M6XO,5 REBOUND

NUT M6XO,5 REBOUND

920 ₽
58

48600311 TUBE 29,3X1X365 D=8,5MM ALU

TUBE 29,3X1X365 D=8,5MM ALU

0 ₽
59

43570023 O-RING NBR 41X2

O-RING NBR 41X2

3 640 ₽
60

43570214 AXLE CLAMP L/S

AXLE CLAMP L/S

80 110 ₽
61

43570213 AXLE CLAMP R/S

AXLE CLAMP R/S

0 ₽
62

43570218 HH COLLAR SREW M 6X20

HH COLLAR SREW M 6X20

0 ₽
63

48600163 CHECK VALVE NUT M6XO,5 D=2

CHECK VALVE NUT M6XO,5 D=2

720 ₽
64

48600202 SPRING CHECK VALVE D=0,7

SPRING CHECK VALVE D=0,7

310 ₽
69

48600152S1 TAP COMPRESSION CPL. 03

TAP COMPRESSION CPL. 03

24 910 ₽
70

48600061 CHECK VALVE 8X24X0,4

CHECK VALVE 8X24X0,4

370 ₽
71

48600047 PISTON COMPRESSION D=27,9

PISTON COMPRESSION D=27,9

2 250 ₽
72

46811499 O-RING NBR 21X2

O-RING NBR 21X2

60 ₽
73

35480320 O-RING NBR 24X2

O-RING NBR 24X2

80 ₽
74

48600152 TAP COMPRESSION

TAP COMPRESSION

24 910 ₽
75

48600190 NEEDLE COMPRESSION

NEEDLE COMPRESSION

3 670 ₽
76

48600049 O-RING NBR 8X2

O-RING NBR 8X2

130 ₽
79

48600051 LOCK WASHER RB12

LOCK WASHER RB12

810 ₽
80

48600034 COMPRESSION ADJ. SCREW

COMPRESSION ADJ. SCREW

2 400 ₽
81

48600004 COPPER WASHER 29,5X33,5X1

COPPER WASHER 29,5X33,5X1

910 ₽
82

48600141 RUBBER CAP D=35MM

RUBBER CAP D=35MM

920 ₽
83

48600211S1 FORK OIL SAE 5

FORK OIL SAE 5

0 ₽
99

R510 REPAIR-KIT GASKET 4357 MXMA

REPAIR-KIT GASKET 4357 MXMA

34 040 ₽
