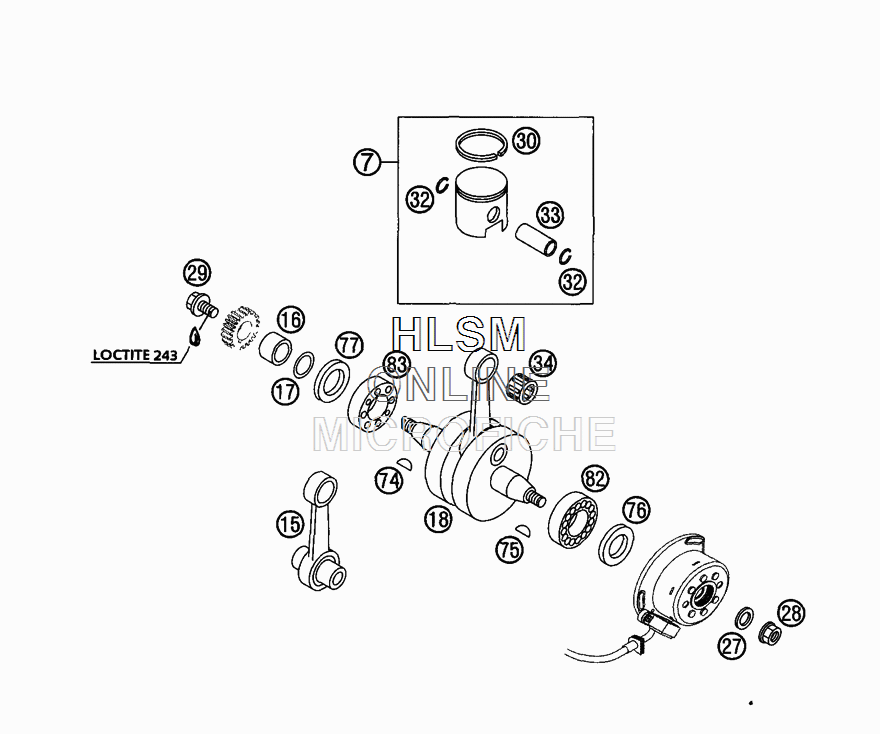

CRANKSHAFT W/ PISTON для Ktm 85 SX - 2003 года выпуска`
-
№АртикулНазвание
-
747030007000I PISTON CPL. 47MM SIZE 1PISTON CPL. 47MM SIZE 1
-
747030007000II PISTON CPL. 47MM SIZE 2PISTON CPL. 47MM SIZE 2
-
1547030015000 CON. ROD. REP KITCON. ROD. REP KIT
-
1647030016000 SPACER SLEEVESPACER SLEEVE
-
170770020180 O-RING 18,77X1,78 NBR 70O-RING 18,77X1,78 NBR 70
-
1847030018000 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
2750230029012 LOCKING RING VSK 12LOCKING RING VSK 12
-
2849030021000 COLLAR NUT M12X1 R/SCOLLAR NUT M12X1 R/S
-
2947032019000 HH SCREW W. COLLAR M10X1,25X20HH SCREW W. COLLAR M10X1,25X20
-
3047030030000 PISTON RINGPISTON RING
-
3247030074000 WIRE LOCK RINGWIRE LOCK RING
-
3347030033000 PISTON PINPISTON PIN
-
3447030034000 NEEDLE BEARING KBK 14X18X17 03NEEDLE BEARING KBK 14X18X17 03
-
740888040050 WOODRUFF KEY DIN6888 4X5X13WOODRUFF KEY DIN6888 4X5X13
-
750888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
7647030076000 SEAL SHAFT RING 20X35X6SEAL SHAFT RING 20X35X6
-
770760304260 SHAFT SEAL RING 30X42X6SHAFT SEAL RING 30X42X6
-
8247030082000 CYL.ROLLER BEAR. NJ205ET2XCS42CYL.ROLLER BEAR. NJ205ET2XCS42
-
8347030083000 BALL BEARING 22X52X15BALL BEARING 22X52X15
