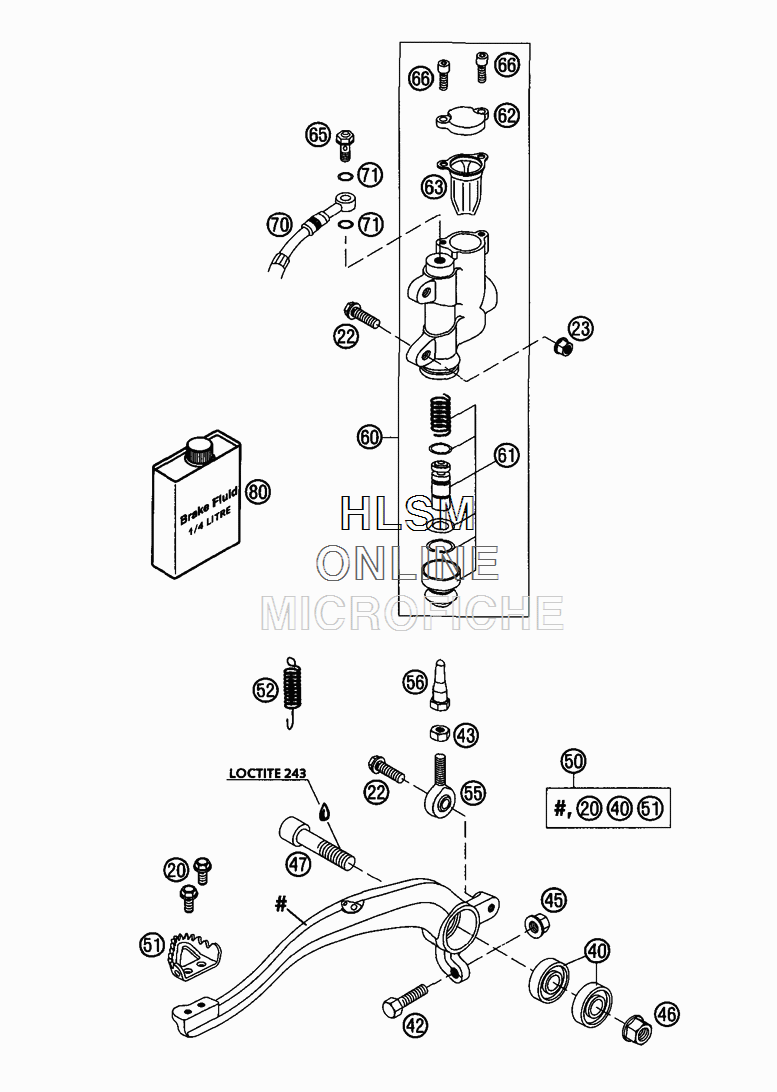

REAR BRAKE CONTROL для Ktm 85 SX - 2003 года выпуска

  • №
    Артикул
    Название
  • 20
    0015050123 HH COLLAR SCREW M 5X12 WS=8
    HH COLLAR SCREW M 5X12 WS=8
  • 22
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 23
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 40
    0625060001 BALL BEARING 6000/C3
    BALL BEARING 6000/C3
  • 42
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 43
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 45
    46030045000 COLLAR NUT M8 WS=10
    COLLAR NUT M8 WS=10
  • 46
    49009082000 SELF LOCKING NUT M10 FK10
    SELF LOCKING NUT M10 FK10
  • 47
    0912100303 AH SCREW DIN0912-M10X30
    AH SCREW DIN0912-M10X30
  • 50
    47013050044 FOOT BRAKE LEVER CPL
    FOOT BRAKE LEVER CPL
  • 51
    54813051000 STEP PLATE FOR BRAKE LEVER
    STEP PLATE FOR BRAKE LEVER
  • 52
    54603062000 RETURN SPRING FOR BRAKE LEVER
    RETURN SPRING FOR BRAKE LEVER
  • 56
    47013056000 PRESSURE ROD
    PRESSURE ROD
  • 60
    47013060000 FOOT BRAKE CYL. REAR CPL.
    FOOT BRAKE CYL. REAR CPL.
  • 61
    47013061000 REP SET PISTON REAR
    REP SET PISTON REAR
  • 62
    47013062000 CYLINDER COVER REAR
    CYLINDER COVER REAR
  • 63
    47013063000 GASKET CYLINDER COVER REAR
    GASKET CYLINDER COVER REAR
  • 65
    47013025000 HOLLOW SCREW BRAKE CYLINDER
    HOLLOW SCREW BRAKE CYLINDER
  • 66
    0912040103 AH.SCREW DIN0912-M 4X10
    AH.SCREW DIN0912-M 4X10
  • 70
    47013070000 BRAKE HOSE REAR
    BRAKE HOSE REAR
  • 71
    0770080019 O-RING 8,00X1,00 EPDM
    O-RING 8,00X1,00 EPDM
  • 80
    306054 BRAKE FLUID DOT 5.1
    BRAKE FLUID DOT 5.1
