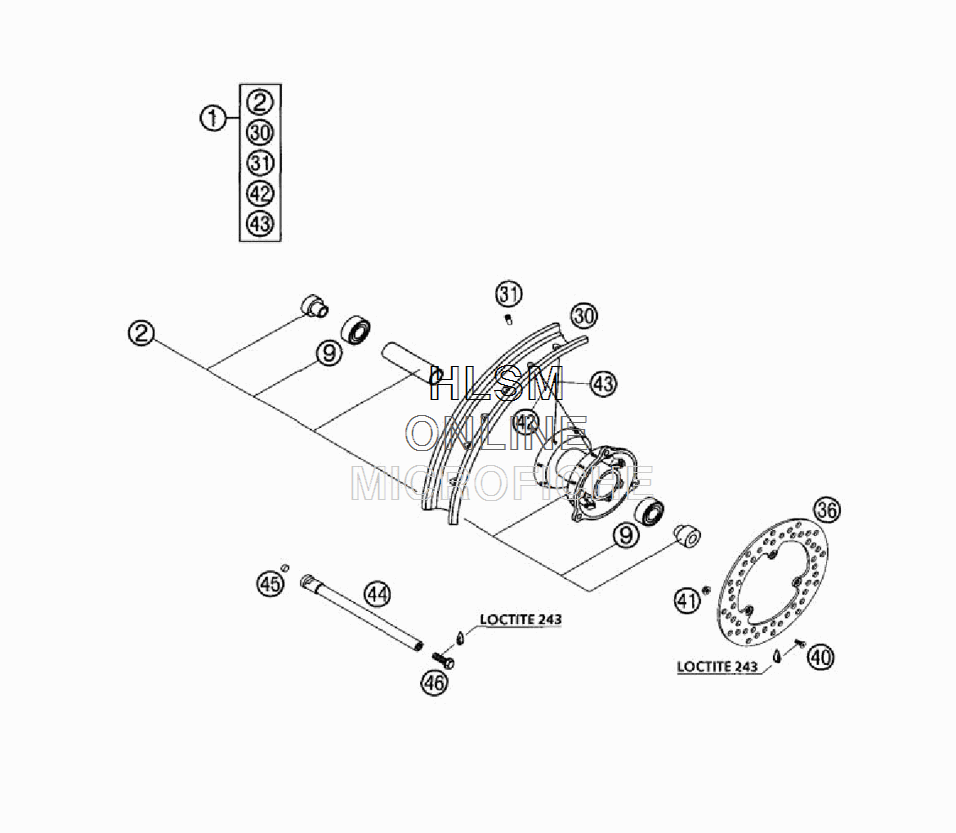

FRONT WHEEL для Ktm 65 SX - 2002 года выпуска`
-
№АртикулНазвание
-
146109001044 FRONT WHEEL-SP 1,6X14" ALUFRONT WHEEL-SP 1,6X14" ALU
-
246109010044 FR.WHEEL HUB CPL. SILVERFR.WHEEL HUB CPL. SILVER
-
90625060037 GROOVED BALL BEAR.6003 2RSR.C3GROOVED BALL BEAR.6003 2RSR.C3
-
3046009070000 RIM FRONT 1,6X14" ALURIM FRONT 1,6X14" ALU
-
3146009072000 SPOKE NIPPLE M3,5SPOKE NIPPLE M3,5
-
3646009060000 BRAKE DISK FRONT 198MMBRAKE DISK FRONT 198MM
-
400991060163 FLAT HEAD SCR. DIN7991-M 6X16FLAT HEAD SCR. DIN7991-M 6X16
-
4156509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
4246009071000 SPOKE M3,5X147-15G 14" L/SSPOKE M3,5X147-15G 14" L/S
-
4346009171000 SPOKE M3,5X151-15G 14" R/SSPOKE M3,5X151-15G 14" R/S
-
4446109081000 AXLE FRONTAXLE FRONT
-
4555009086000 PLUG SFL13PLUG SFL13
-
4649032011000 HH COLLAR SCREW M10X20 WS=17HH COLLAR SCREW M10X20 WS=17
