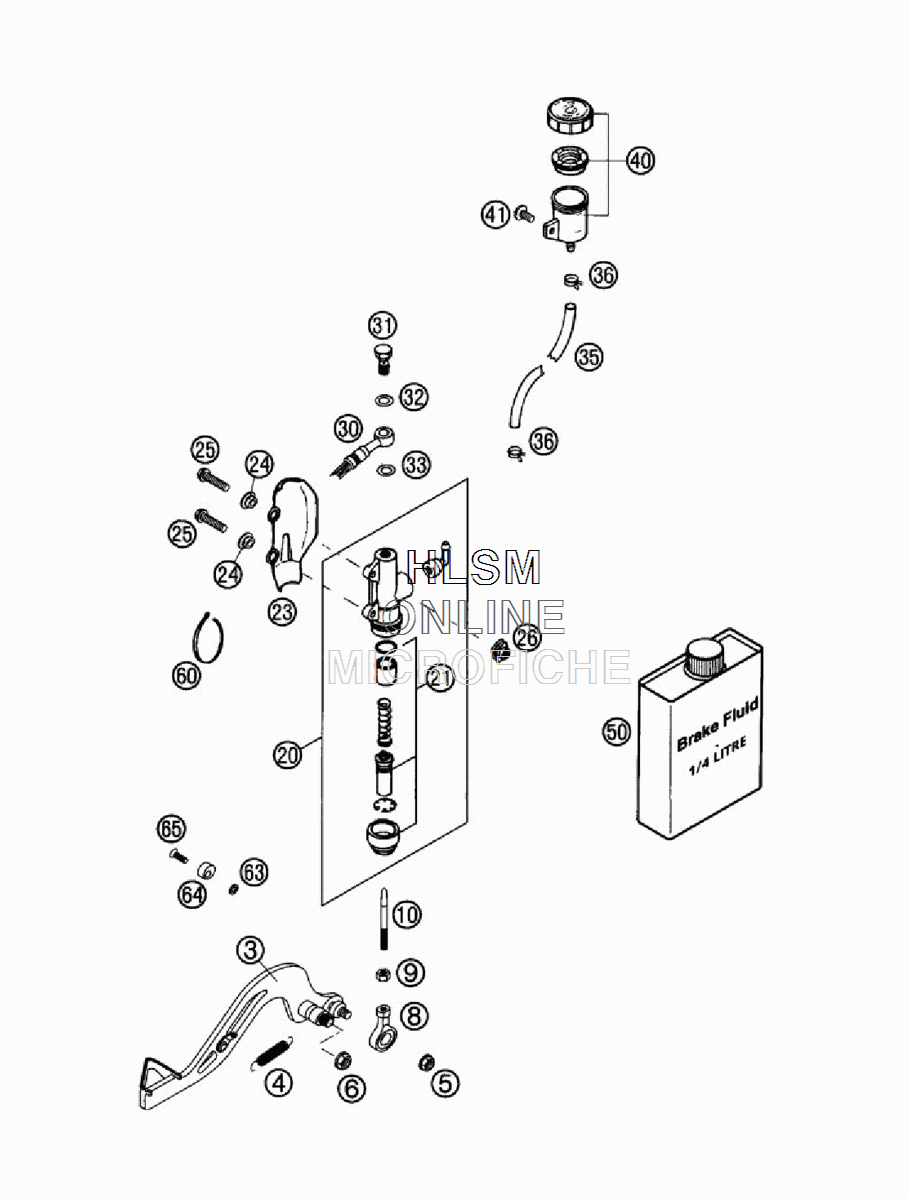

REAR BRAKE CONTROL для Ktm 65 SX - 2002 года выпуска

  • №
    Артикул
    Название
  • 3
    46003060244 REAR BRAKELEVER CPL.
    REAR BRAKELEVER CPL.
  • 4
    54603062000 RETURN SPRING FOR BRAKE LEVER
    RETURN SPRING FOR BRAKE LEVER
  • 5
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 6
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 8
    54603069000 SWIVEL HEAD M6 FOOT BRAKE LEV.
    SWIVEL HEAD M6 FOOT BRAKE LEV.
  • 9
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 10
    54603068000 PRESSURE ROD ALU.
    PRESSURE ROD ALU.
  • 20
    50313060000 FOOTBRAKE CYLINDER D=12MM
    FOOTBRAKE CYLINDER D=12MM
  • 21
    50313061000 REP. KIT PISTON 12MM
    REP. KIT PISTON 12MM
  • 23
    54513038000 BRAKE CYL. PROTECTOR "BREMBO"
    BRAKE CYL. PROTECTOR "BREMBO"
  • 24
    50213161000 COLLAR BUSHING
    COLLAR BUSHING
  • 25
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 26
    50235033300 SNAP-NUT HOLDER M6 KP142
    SNAP-NUT HOLDER M6 KP142
  • 30
    46013070100 BRAKE H. REAR 594MM
    BRAKE H. REAR 594MM
  • 31
    50213025000 HOLLOW SCREW M10X1X19
    HOLLOW SCREW M10X1X19
  • 32
    42013226000 CU-SEAL RING DIN7603-10X16X1
    CU-SEAL RING DIN7603-10X16X1
  • 33
    42013026000 CU-SEAL RING DIN7603-10X16X1,5
    CU-SEAL RING DIN7603-10X16X1,5
  • 35
    58007016101 HOSE FOR RESERVOIR 6X1,5
    HOSE FOR RESERVOIR 6X1,5
  • 36
    58007117000 YDNAC-CLAMP 10107 10MM
    YDNAC-CLAMP 10107 10MM
  • 40
    54513030044 BRAKE FLUID RESERVOIR
    BRAKE FLUID RESERVOIR
  • 41
    0014060103 HH COLLAR SCREW M6X10 WS=8
    HH COLLAR SCREW M6X10 WS=8
  • 50
    306054 BRAKE FLUID DOT 5.1 (0,1L)
    BRAKE FLUID DOT 5.1 (0,1L)
  • 60
    44011076200 CABLE TIE 200MM
    CABLE TIE 200MM
  • 63
    0797060003 TOOTH LOCK WASH. DIN6797-A 6,4
    TOOTH LOCK WASH. DIN6797-A 6,4
  • 64
    58303063000 BRAKE LEVER STOP
    BRAKE LEVER STOP
  • 65
    0991060203 FLAT HEAD SCREW DIN7991-M 6X20
    FLAT HEAD SCREW DIN7991-M 6X20
